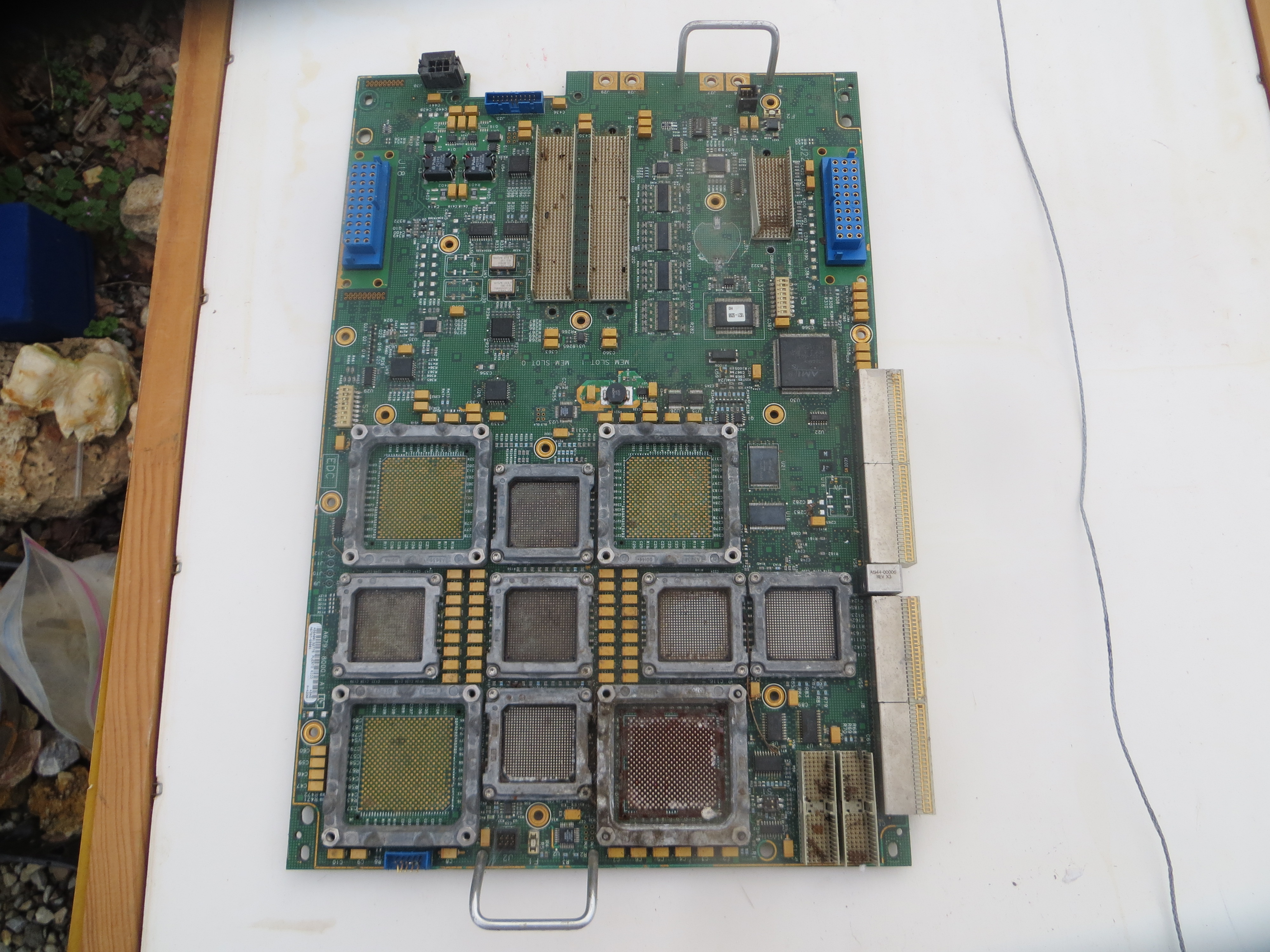

This must be a server board cause it has handles so you can carry a teapot and crackers to your workbench. I don't think I am interested in making scrap out of this. Looks so neat hanging on the wall. Got more metal hanging from it than those human pincushions.


Attachments:
IMG_4890.JPG [ 2.59 MiB | Viewed 185 times ]
Top
 Profile

PostPosted: Fri Mar 01, 2019 9:14 pm

Joined: Tue Jun 19, 2018 4:52 pm
Posts: 68
Looks like it has 4 large socket and 5 small socket, plus all those gold connectors.


Attachments:
IMG_4894.JPG [ 1.85 MiB | Viewed 183 times ]
IMG_4893.JPG [ 2.9 MiB | Viewed 183 times ]
Top
 Profile

PostPosted: Sat Mar 02, 2019 4:36 pm
Site Admin

Joined: Tue Feb 03, 2015 6:57 pm
Posts: 5149
Location: Low DOS
Definitely a server board. Probably a proprietary cube or half rack design. Not a usual layout.
The two white pin grids are for card connectors. That’s standard. As is the blue powered socket.
Where it gets interesting however is the socket arrangement. It looks totally modular.
First the quad layout. Normally supports 1, 2, or 4 CPUs.
But one of the four sockets is a different design. Confusing
From there the centeral socket hold the chipset controller. Sockets for two bridge chips, and to the right would most likely be a coprocessor and an I/O onboard controller.
My thought? Intel Xeon science boards or AMD opteron flex cubes. Both meant for science and research in general. I’ve seen similar modular boards but never one where the entire chipset was socketed!
