PostPosted: Sat May 23, 2015 11:01 pm

Joined: Tue May 19, 2015 11:58 am
Posts: 11

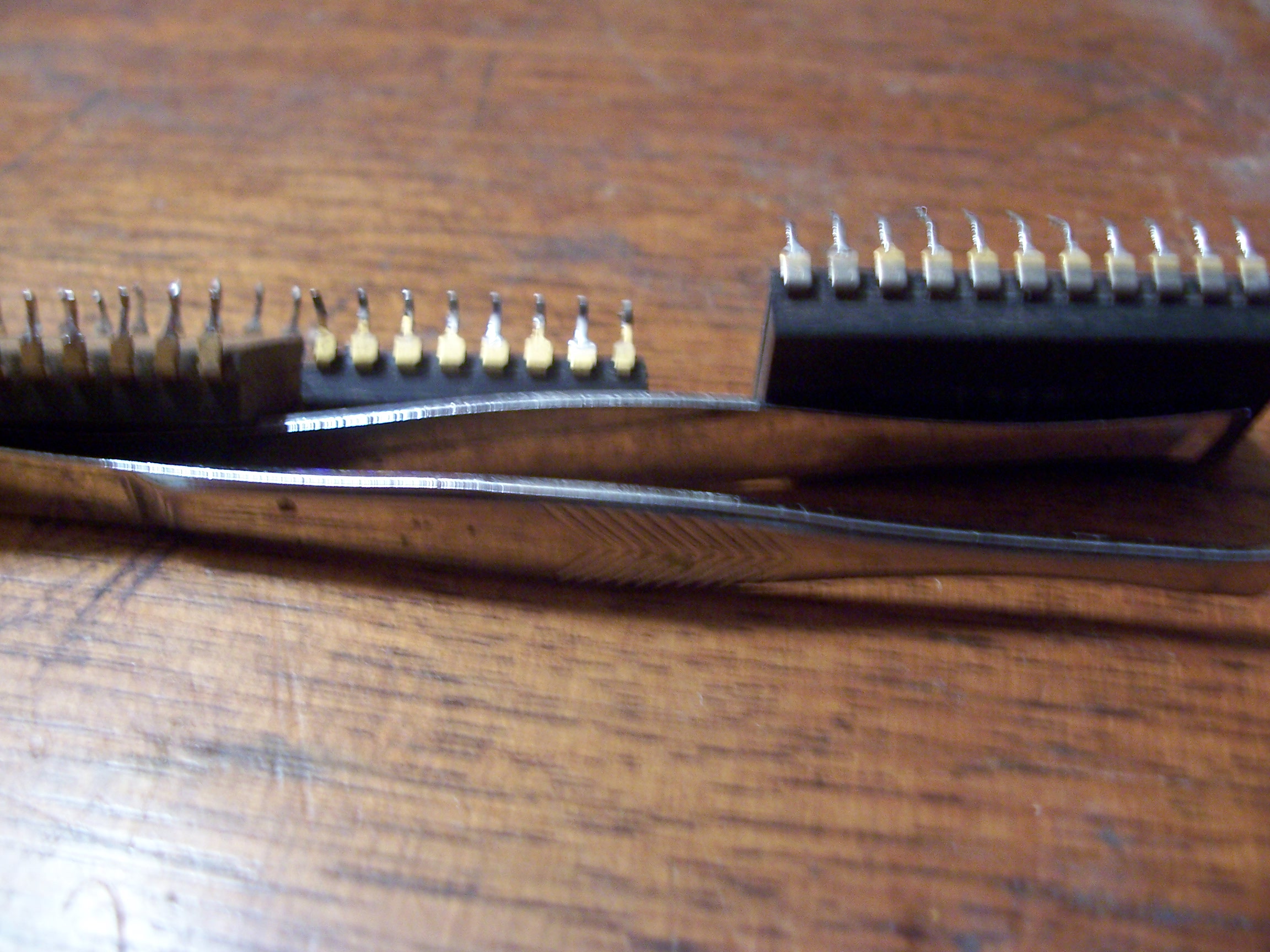

Hi I got to say thank you for all of your help. I got these gold leg ic chips off from a 1979 sever boards. Some are completely gold leg and some of them appear to have half gold leg on the outside of the leg but on the inside it is all gold leg. Are they ic chip or something else the picture of ic chip don't show gold leg. Sorry for the bad picture I can't get a good picture.
Attachment:
Picture 745.jpg
Picture 745.jpg [ 778.96 KiB | Viewed 894 times ]
Thank you for your help.


Top
 Profile

PostPosted: Sun May 24, 2015 12:36 pm

Joined: Tue Feb 03, 2015 6:57 pm
Posts: 3225
Location: Low DOS
My go to so far has been gold pin ic no cap square goes in amd. Gold pin rectangle 486.

Looks like a TI or Zilog cpu.


Top
 Profile

PostPosted: Tue May 26, 2015 11:31 pm

Joined: Wed Mar 26, 2014 1:40 pm
Posts: 45
lostinlodos wrote:
My go to so far has been gold pin ic no cap square goes in amd.


I'm assuming this is suppose to be the English language. However, I believe myself and possibly others would benefit from a translation.


Top
 Profile

PostPosted: Wed May 27, 2015 12:16 am

Joined: Tue Feb 03, 2015 6:57 pm
Posts: 3225
Location: Low DOS
In general!

If the chip has gold pins AND a gold cap/hat/top or bottom i put it in the 8086 gold pins and gold cap category.

For ic chips with gold pins that do not have a cap i sort two ways

Square ones go in the 486 category.

Long narrow rectangles With gold legs go in the amd ceramic category.
