Please help me grade these boards. They have ICs, gold-tipped pins sticking up, and gold connectors. All backs are green and empty.

*Board 4116: What are those thick gold connectors? Are they anodized gold or something? Same value as other gold pins?

* The 4129 board has gold-tipped pins sticking up, bent so you can see, gold pin connectors, and ports with gold pins.

*The 4129 with More Jacks: same as above with more jacks, minus gold pin connectors, and it has a row of black pin things that I broke open to expose the gold pins inside.

*Red & Yellow board: ICs, jacks with gold pins, standing gold pins.

Thanks for the help. This shipment is driving me bonkers and I want it over soon.


Attachments:

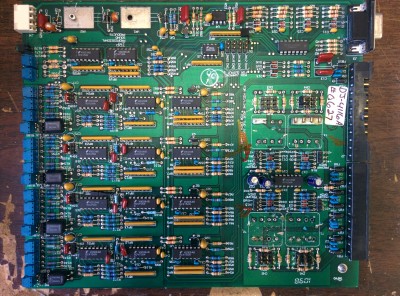

File comment: Board 4116
tmp_26138-IMG_20150904_142012171703622.jpg [ 3.32 MiB | Viewed 3427 times ]

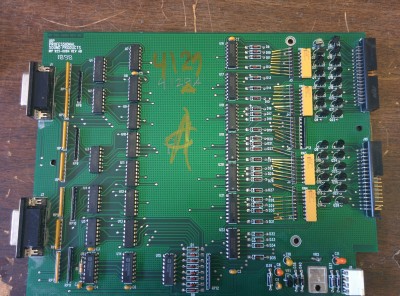

File comment: Board 4129 more jacks
tmp_26138-IMG_20150904_1355001567106614.jpg [ 3.08 MiB | Viewed 3427 times ]
File comment: Red & Yellow
tmp_26138-IMG_20150904_1349081252836205.jpg [ 3.46 MiB | Viewed 3427 times ]
File comment: Board 4129
tmp_26138-IMG_20150904_142401~2-1881098319.jpg [ 2.12 MiB | Viewed 3427 times ]
Top
 Profile

PostPosted: Fri Sep 04, 2015 4:34 pm
Reputable Seller

Joined: Fri Jan 31, 2014 10:22 am
Posts: 769
All those would fit in the category of peripheral grade. If the boards were more densely populated with IC chips instead of resistors and other power components, they would have gotten telecom grade.

_________________
kgryczan
Forum Moderator


Top
 Profile

PostPosted: Fri Sep 04, 2015 4:42 pm

Joined: Tue Apr 14, 2015 7:30 pm
Posts: 30
Location: Chicago IL USA
Thank you kgryczan!

Do you know what those thick pins are on the last board? They're on the right edge and I cut away the black plastic a bit so you can see. They're thick, squarish, and "look" like gold, but kind of...I don't know what the process is. I have a big back of those same connectors, unused, and wondered what to do with them.


Top
 Profile

PostPosted: Fri Sep 04, 2015 6:43 pm
Site Admin
User avatar

Joined: Tue Feb 03, 2015 6:57 pm
Posts: 7015
Location: Low DOS
Just standard gold pins. If they stick to a magnet they're plated steel. If nonferrous then the base, being whiteish is.probably magnesium or nickel.
Board sort buys but you'll need to send them in for evaluation.


Top
 Profile

PostPosted: Fri Sep 04, 2015 7:02 pm

Joined: Tue Apr 14, 2015 7:30 pm
Posts: 30
Location: Chicago IL USA
Okay, good info, thanks! I'd trust Boardsort with evaluating my gold. I can't say the same for a lot of other businesses,that's for sure. I'm starting the process of getting gold pins together to send.


Top
 Profile

PostPosted: Wed Sep 09, 2015 1:34 pm

Joined: Tue Apr 14, 2015 7:30 pm
Posts: 30
Location: Chicago IL USA
Deer Shears wrote:
Okay, good info, thanks! I'd trust Boardsort with evaluating my gold. I can't say the same for a lot of other businesses,that's for sure. I'm starting the process of getting gold pins together to send.


Lostintodos, If I send gold pins to Boardsort for evaluation as you mentioned, do they want me to pull them out of the plastic holders and send metal only?


Top
 Profile

PostPosted: Wed Sep 09, 2015 7:51 pm
Site Admin
User avatar

Joined: Tue Feb 03, 2015 6:57 pm
Posts: 7015
Location: Low DOS
Deer Shears wrote:
Deer Shears wrote:
Okay, good info, thanks! I'd trust Boardsort with evaluating my gold. I can't say the same for a lot of other businesses,that's for sure. I'm starting the process of getting gold pins together to send.


Lostintodos, If I send gold pins to Boardsort for evaluation as you mentioned, do they want me to pull them out of the plastic holders and send metal only?

If they're in the plastic they're considered gold connector ends most cases. Ideally you'd have them clean from the plastic.
You'd have to ask directly if they'd allow some plastic in the mix or not but I don't believe so.


Top
 Profile

PostPosted: Wed Sep 09, 2015 8:58 pm

Joined: Tue Apr 14, 2015 7:30 pm
Posts: 30
Location: Chicago IL USA
Okay thanks. I'm pulling out the pins so they're bare.

I hope this is helpful to others who have questions about how to handle bare gold pins. :)
