 Post subject: Please help I'm new
PostPosted: Tue Sep 16, 2014 9:43 pm

Joined: Wed Jul 09, 2014 9:46 pm
Posts: 9
I came across a box full of these. I'm pretty sure of classification, but am preparing my first shipment and want to be sure. In regards to the memory sticks, are these ram?


Attachments:

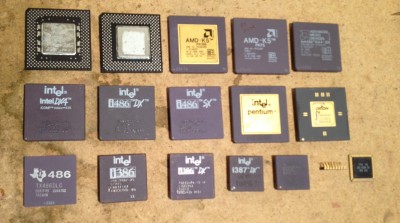

image.jpg [ 1.06 MiB | Viewed 1257 times ]
image.jpg [ 1.6 MiB | Viewed 1257 times ]
image.jpg [ 1.87 MiB | Viewed 1257 times ]
Top
 Profile

 Post subject: Re: Please help I'm new
PostPosted: Tue Sep 16, 2014 10:06 pm
User avatar

Joined: Sat Feb 22, 2014 11:16 am
Posts: 166
Location: Newell, Iowa

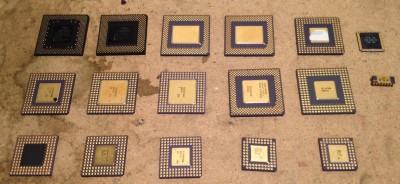

First picture starting from left to right.

First row
1 and 2 are black fiber CPU's, 3 is a double side gold CPU, 4 and 5 are AMD Ceramic CPU's.

Second row
1, 2, and 3 are 486 CPU's, 4 and 5 are double side gold cap cpu's

Third row
1, 2, 3, 4, and 5 are 486/386 CPU's, 6 is a 8086 Gold Cap with Gold Legs IC, and 7 I am unsure of.

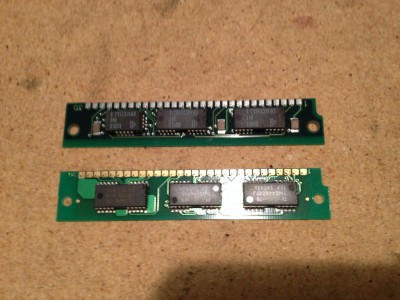

The memory pictured is Silver/tin fingered on the top and gold fingered on the bottom.

With the tin fingered, you can trim the fingers off and sell it as trimmed memory for more per pound.

Please refer to the pricing guide for prices.
http://boardsort.com/payout.php


Top
 Profile

 Post subject: Re: Please help I'm new
PostPosted: Tue Sep 16, 2014 10:24 pm

Joined: Wed Jul 09, 2014 9:46 pm
Posts: 9
Thank you so much for the quick reply. I figured as much, but needed to be sure. I usually process my gold fingers, but am going to start processing silver fingers and the like too. On row 1, #5 says 486 on it. That wouldn't count as 486/386 class? I know pic is a little fuzzy. Sorry, bad lighting.


Top
 Profile

 Post subject: Re: Please help I'm new
PostPosted: Tue Sep 16, 2014 10:31 pm
User avatar

Joined: Sat Feb 22, 2014 11:16 am
Posts: 166
Location: Newell, Iowa
A 486/386 CPU is an intel product, That one has the AMD logo on it so it is not a 486, The number on it simpily means that is is a i486 class, which is a 16 or 32 bit CPU at the time.


Top
 Profile

 Post subject: Re: Please help I'm new
PostPosted: Wed Sep 17, 2014 8:48 am

Joined: Fri Mar 28, 2014 11:52 am
Posts: 32
Location: Oklahoma City, OK
In the E-Scrap gallery, in the 386/486 Gold Top or Bottom section, it shows 2 pictures of AMD cpu's with gold bottoms. The cpu in the picture in the AMD ceramic section of the E-Scrap gallery doesn't have a gold top or bottom. I would think 4 and 5 in the first row might go as 386/486 gold bottom cpu's. I could be wrong though.


Top
 Profile

 Post subject: Re: Please help I'm new
PostPosted: Thu Sep 18, 2014 6:17 am
Reputable Seller

Joined: Fri Jan 31, 2014 10:22 am
Posts: 753
To get 386/486 pricing on a ceramic chip, the chip must be from the 386/486 family and have the gold cap on the bottom of the chip. Absence of the gold cap will put it with the Pentium ceramic chips.

_________________
kgryczan
Forum Moderator
