A few more older cards. Again, if someone cares to add a little info on what these may have come from, generally or specifically I'd love to know.
| Attachments: |

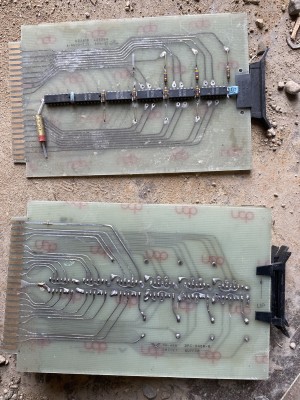

File comment: 1.Gold fingers both sides, just four ICs. Low periph?
IMG_5564.JPG [ 1.16 MiB | Viewed 2268 times ]
|

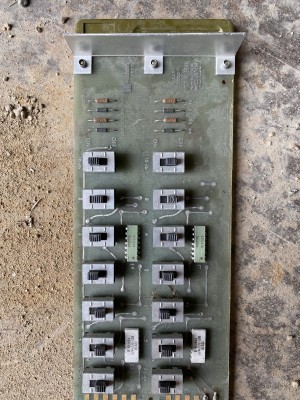

File comment: 2.Gold fingers both sides (sorry, cropped them out taking pic,) and lots of switches. Low periph?
IMG_5563.JPG [ 1.4 MiB | Viewed 2268 times ]
|

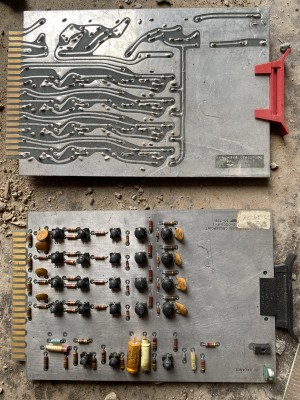

File comment: 3.Gold fingers both sides, a few of the components had gold pins. Low periph?
IMG_5562.JPG [ 1.3 MiB | Viewed 2268 times ]
|

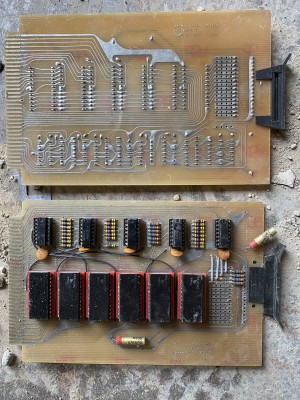

File comment: 4.Gold fingers both sides, not too many chips. High periph or low telco?
IMG_5561.JPG [ 1.37 MiB | Viewed 2268 times ]
|

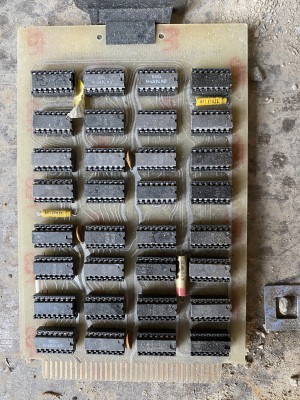

File comment: 5.Gold fingers both sides, lots of chips. High Telco?
IMG_5560.JPG [ 1.38 MiB | Viewed 2268 times ]
|

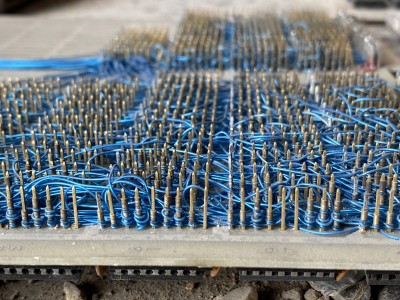

File comment: 6c.Wrapped pins
IMG_5559.JPG [ 991.32 KiB | Viewed 2268 times ]
|

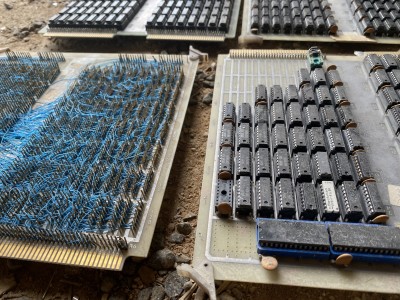

File comment: 6b.Closer look on pins and chips
IMG_5558.JPG [ 1.19 MiB | Viewed 2268 times ]
|
File comment: 6a.Wire wrapped pins on one side, lots of chips on the other. Wire wrapped board or just high telco?
IMG_5557.JPG [ 1.91 MiB | Viewed 2268 times ]
|
