AAK2
 Post subject: Boards for grading #3
PostPosted: Tue Aug 20, 2019 2:37 pm

Joined: Thu Aug 01, 2019 6:55 pm
Posts: 556
What is the thing that says TOE 2? From top to bottom I was thinking telecom, then peripheral, gold pin connector, and then midgrade. Am I correct?

Thank you!


You do not have the required permissions to view the files attached to this post.

Top
 Profile
Reply with quote
lostinlodos
PostPosted: Tue Aug 20, 2019 3:51 pm
Site Admin
User avatar

Joined: Tue Feb 03, 2015 6:57 pm
Posts: 10204
Location: Low DOS

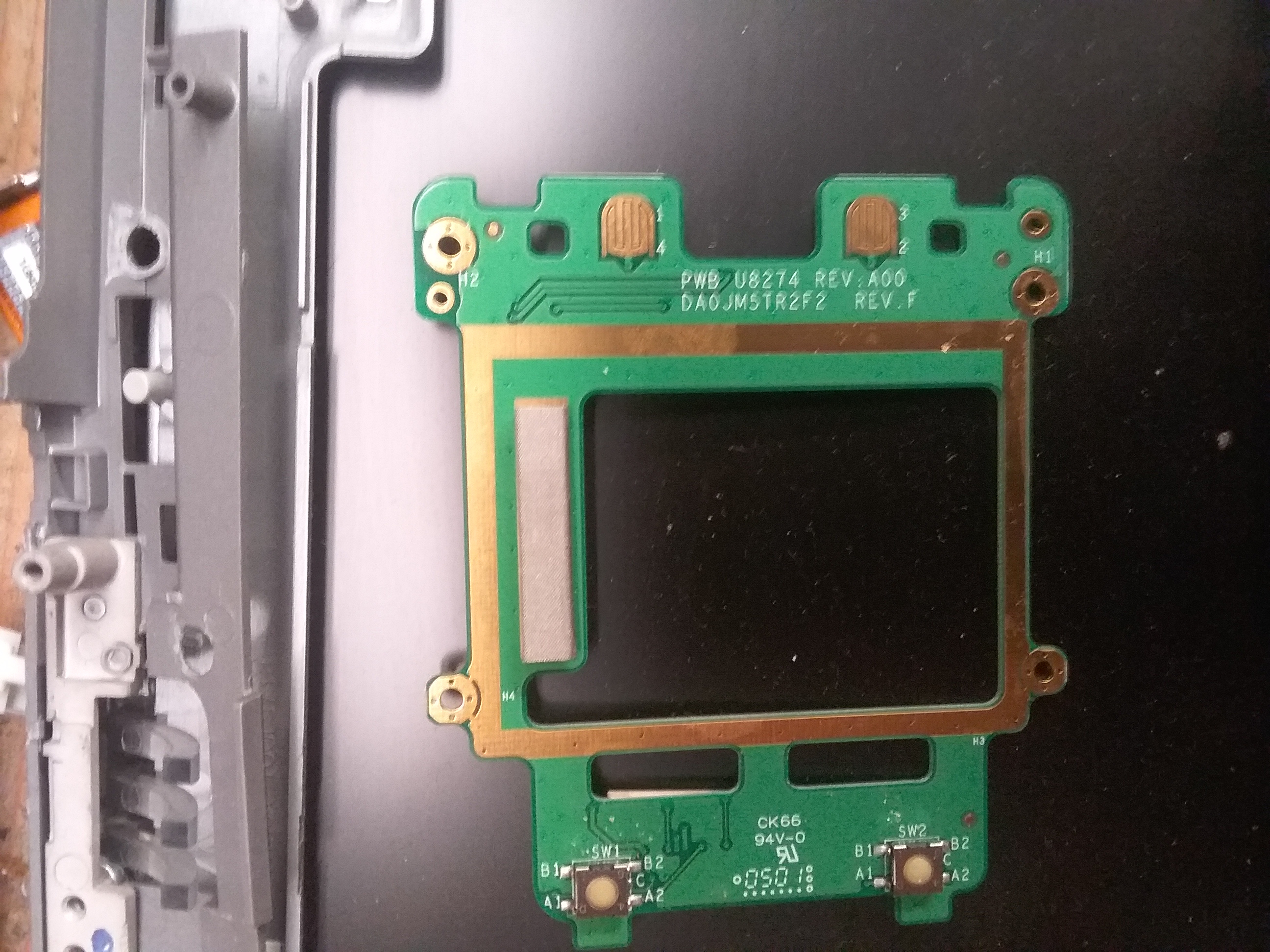

Peripheral (bump ICs won’t make telco just about ever).
Peripheral

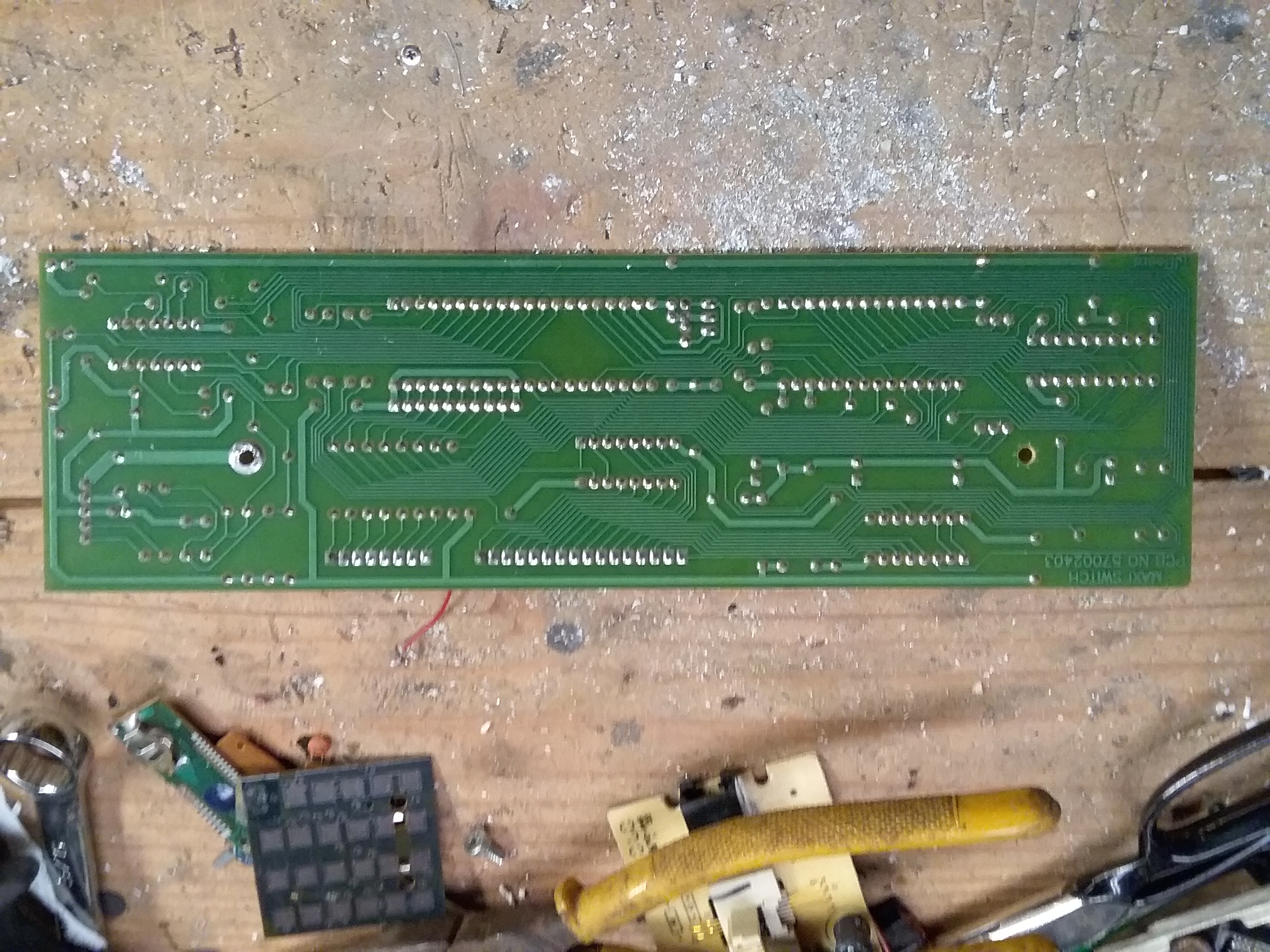

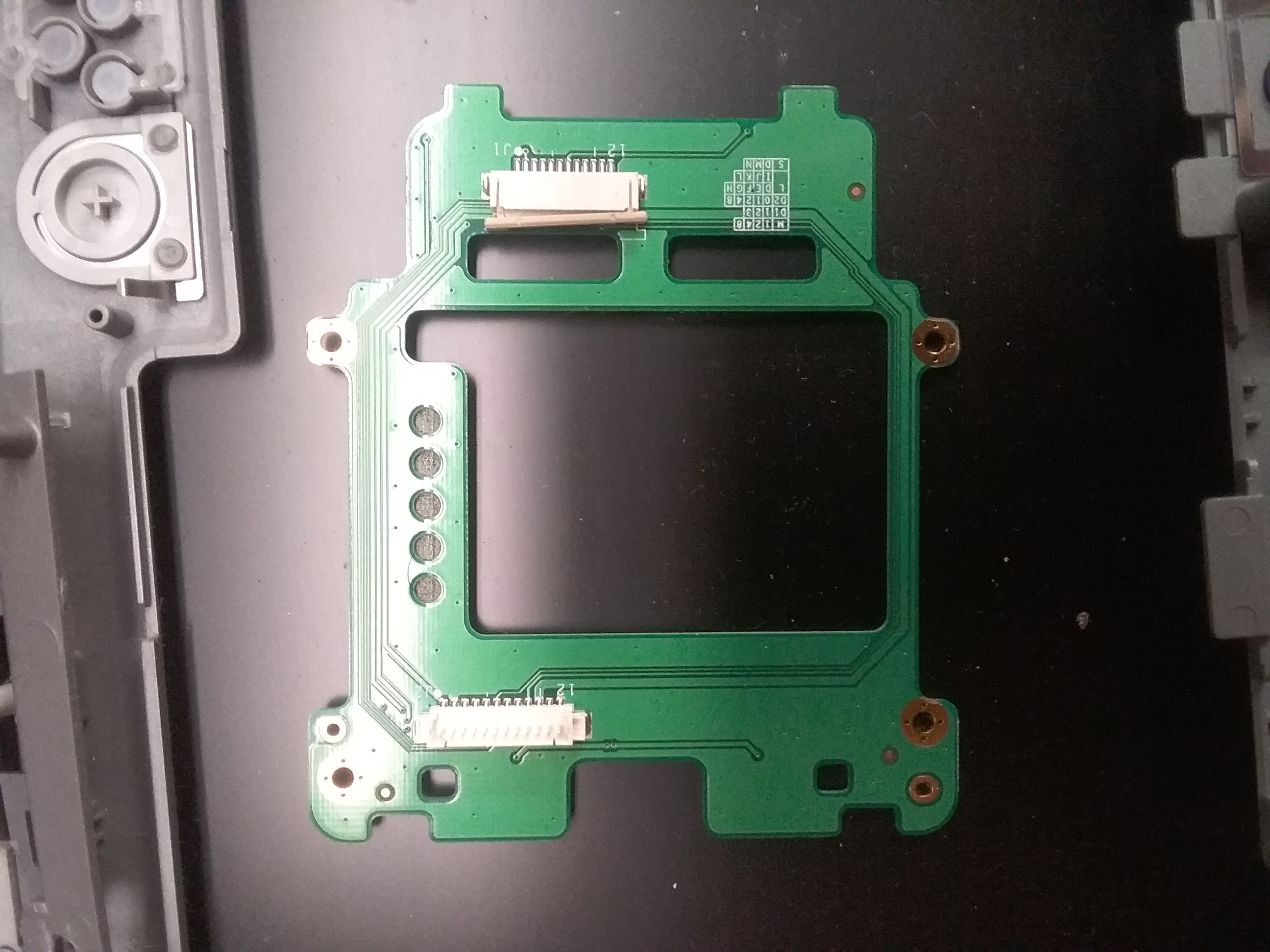

Back side

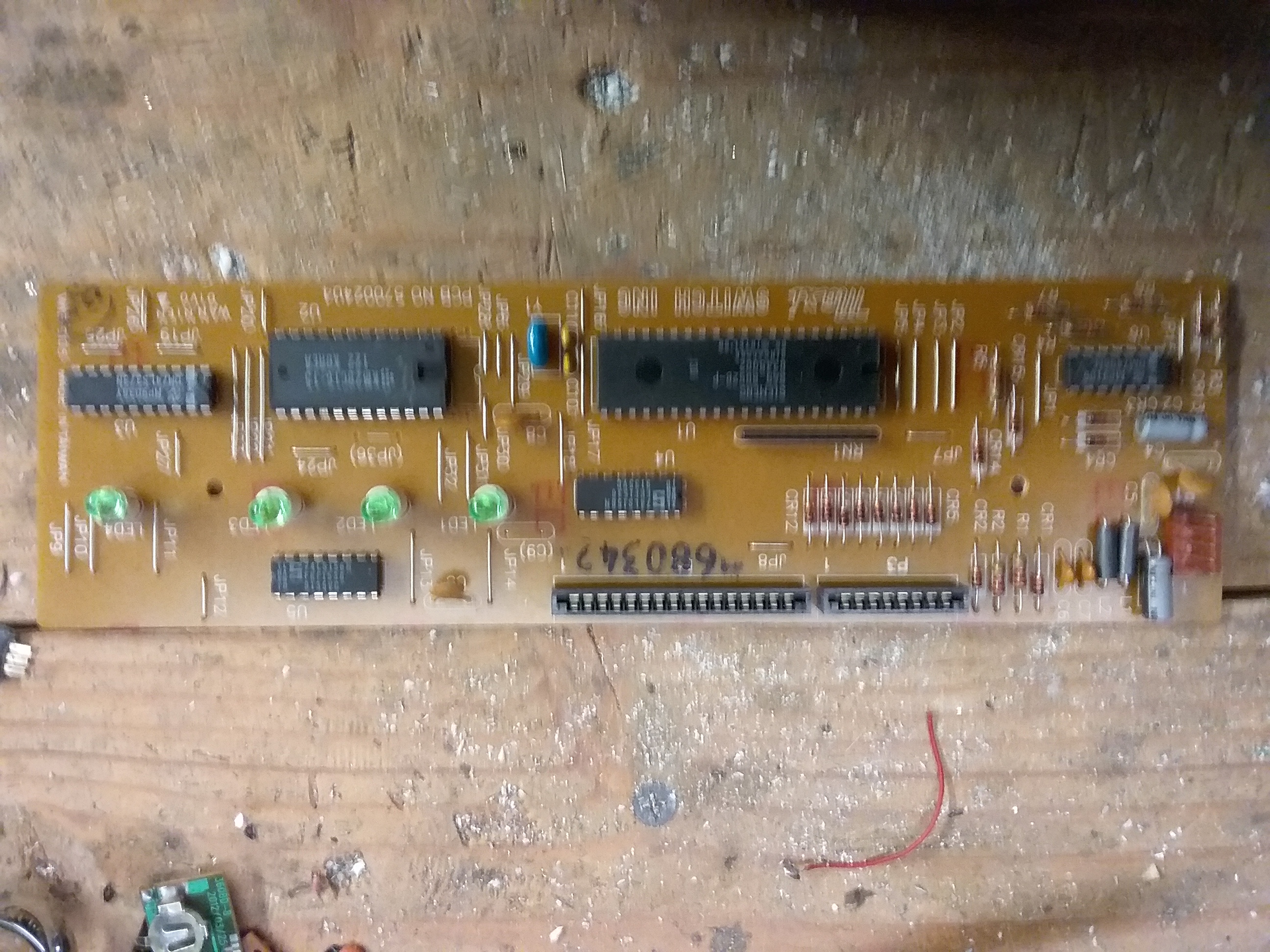

Gold pin connector
Power board? Probably midgrade

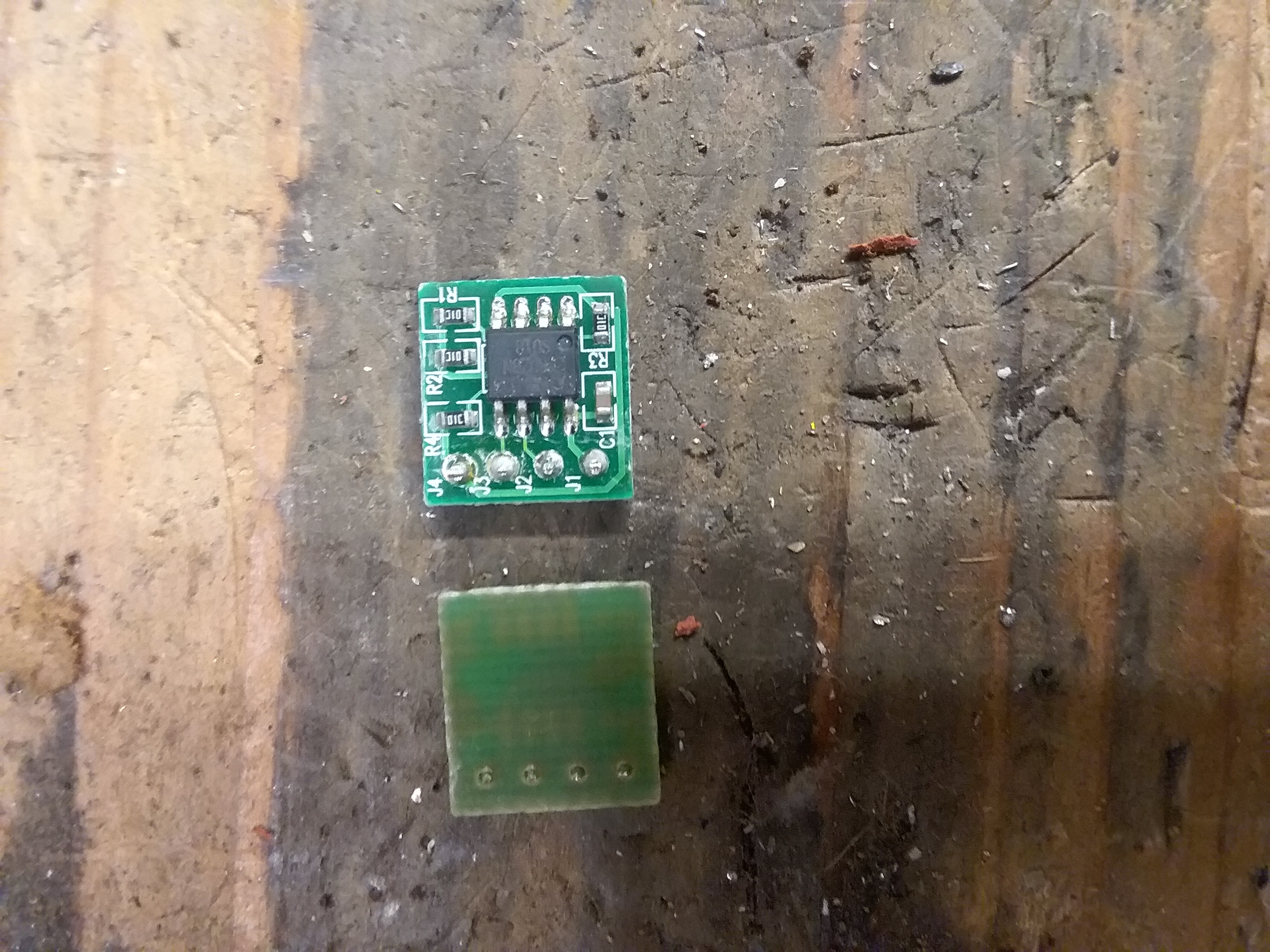

Midgrade
Back side

_________________
42 6F 61 72 64 73 6F 72 74 2E 63 6F 6D
Top
 Profile
Reply with quote
FlyersMike
PostPosted: Tue Aug 20, 2019 4:53 pm

Joined: Tue Apr 15, 2014 12:19 pm
Posts: 95
lostinlodos wrote:
Peripheral (bump ICs won’t make telco just about ever).
Peripheral
Back side
Gold pin connector
Power board? Probably midgrade
Midgrade
Back side


Arent some of these photos the same board, front and back? A brown board can be a Back side? Im very confused between the photos and this reply of the grades. Am i the only one confused here?
Top
 Profile
Reply with quote
lostinlodos
PostPosted: Tue Aug 20, 2019 6:17 pm
Site Admin
User avatar

Joined: Tue Feb 03, 2015 6:57 pm
Posts: 10204
Location: Low DOS
back side, not backplane.
meaning the back of the board.

_________________
42 6F 61 72 64 73 6F 72 74 2E 63 6F 6D
Top
 Profile
Reply with quote
AAK2
PostPosted: Tue Aug 20, 2019 8:20 pm

Joined: Thu Aug 01, 2019 6:55 pm
Posts: 556
Thank you for your help. I forgot what the last board came out of so I don't know what it is.
Top
 Profile
Reply with quote
lostinlodos
PostPosted: Tue Aug 20, 2019 8:31 pm
Site Admin
User avatar

Joined: Tue Feb 03, 2015 6:57 pm
Posts: 10204
Location: Low DOS
I believe it’s a keyboard controller

_________________
42 6F 61 72 64 73 6F 72 74 2E 63 6F 6D
Top
 Profile
Reply with quote
FlyersMike
PostPosted: Wed Aug 21, 2019 8:03 am

Joined: Tue Apr 15, 2014 12:19 pm
Posts: 95
lostinlodos wrote:
back side, not backplane.
meaning the back of the board.

Haha, so it was just me that was confused...I'll be ok. Thanks for letting me know.
Top
 Profile
Reply with quote
AAK2
PostPosted: Thu Aug 22, 2019 12:56 pm

Joined: Thu Aug 01, 2019 6:55 pm
Posts: 556

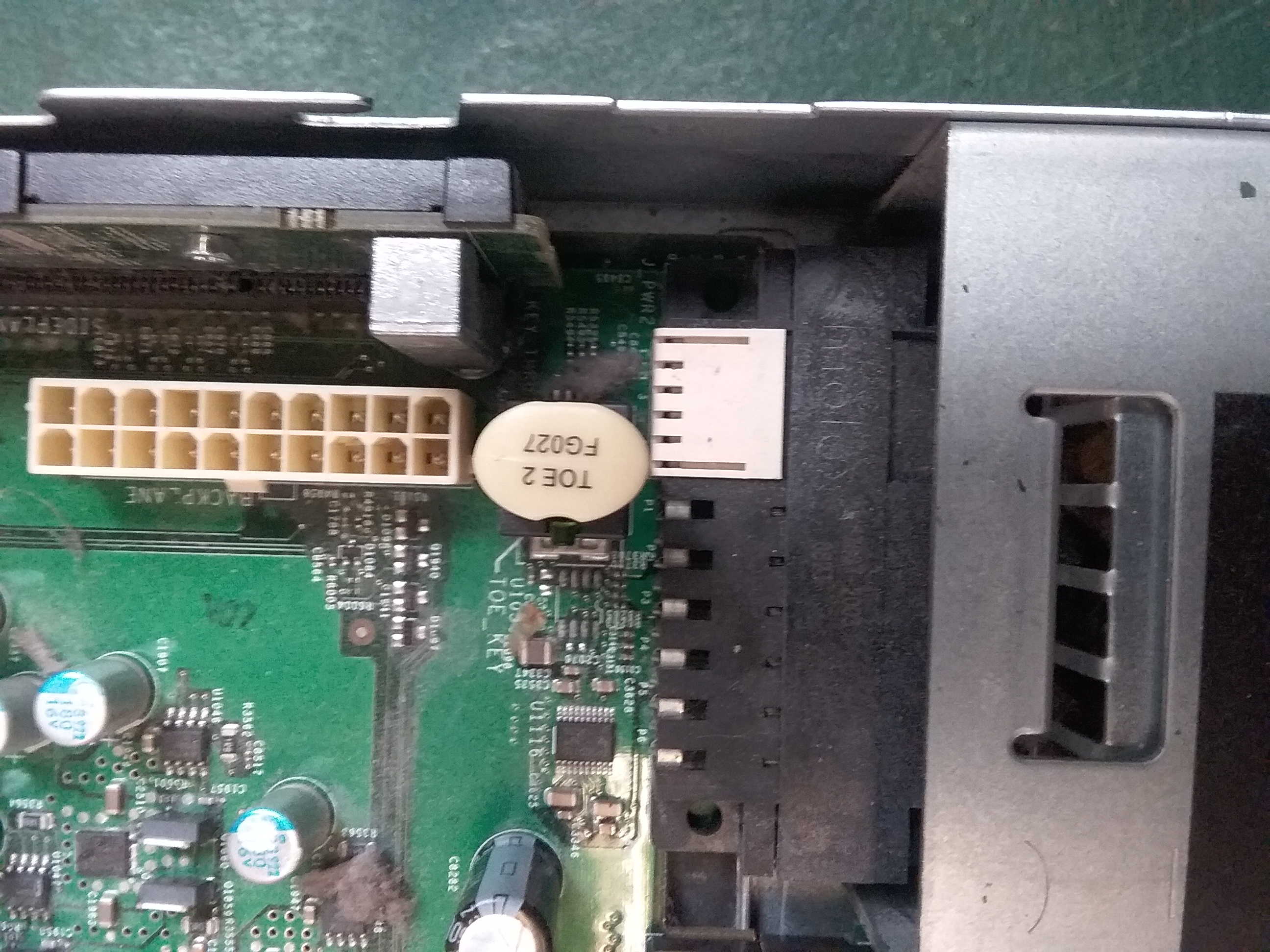

What is the thing that says TOE 2? I have attached a picture of the board inside of it.

Thank you.


You do not have the required permissions to view the files attached to this post.
