 Post subject: Id help please
PostPosted: Wed Apr 08, 2020 12:42 pm

Joined: Tue Apr 07, 2020 3:09 pm
Posts: 42
I know a couple of these are from computers just not sure what to take off. Thank you in advance


Attachments:
3CE4E69A-7261-4EDF-9F58-B068EE0B8FD5.jpeg [ 2.61 MiB | Viewed 1548 times ]
CA407663-E3E6-4EE9-BD95-7F7C9814D374.jpeg [ 3.35 MiB | Viewed 1548 times ]
5C47CAF0-1416-4771-B997-9D314191AD86.jpeg [ 2.62 MiB | Viewed 1548 times ]
41C15A28-6E5B-4F03-8510-8E724B4BF61C.jpeg [ 3.44 MiB | Viewed 1548 times ]
4D0DC50D-6558-4281-BB29-9D43748E3E6E.jpeg [ 2.87 MiB | Viewed 1548 times ]
F2C44D64-F91B-473C-90D9-4E43E7E1DE4D.jpeg [ 2.98 MiB | Viewed 1548 times ]
F6595F13-B887-4F3A-821C-8F758D3ECBF1.jpeg [ 2.98 MiB | Viewed 1548 times ]
5B5E37EA-3965-4ED5-8B6D-5D1112C99210.jpeg [ 2.88 MiB | Viewed 1548 times ]
Top
 Profile

 Post subject: Re: Id help please
PostPosted: Wed Apr 08, 2020 1:14 pm
Site Admin
User avatar

Joined: Tue Feb 03, 2015 6:57 pm
Posts: 8788
Location: Low DOS
First of note: only remove heatsinks and shields unless someone tells you otherwise.
Most people will remove something they didn’t have to along the way somewhere. And! There are all sorts strange packages (something that holds something else inside it) out there. Of major point is in old A/V where You remove what you think is a large canister capacitor only to find the board drop to midgrade. You removed the solid gold shell crystal in a canister cooler package. Oops. Or you cut a finger off a 70s relay board thinking the board was junk; it was peripheral till you cut it.
When in doubt always ask first.

_________________
-- my grades are my own and do not represent an offer from boardsort, nor are they guaranteed. Please keep that in mind.


Top
 Profile

 Post subject: Re: Id help please
PostPosted: Wed Apr 08, 2020 1:22 pm
Site Admin
User avatar

Joined: Tue Feb 03, 2015 6:57 pm
Posts: 8788
Location: Low DOS

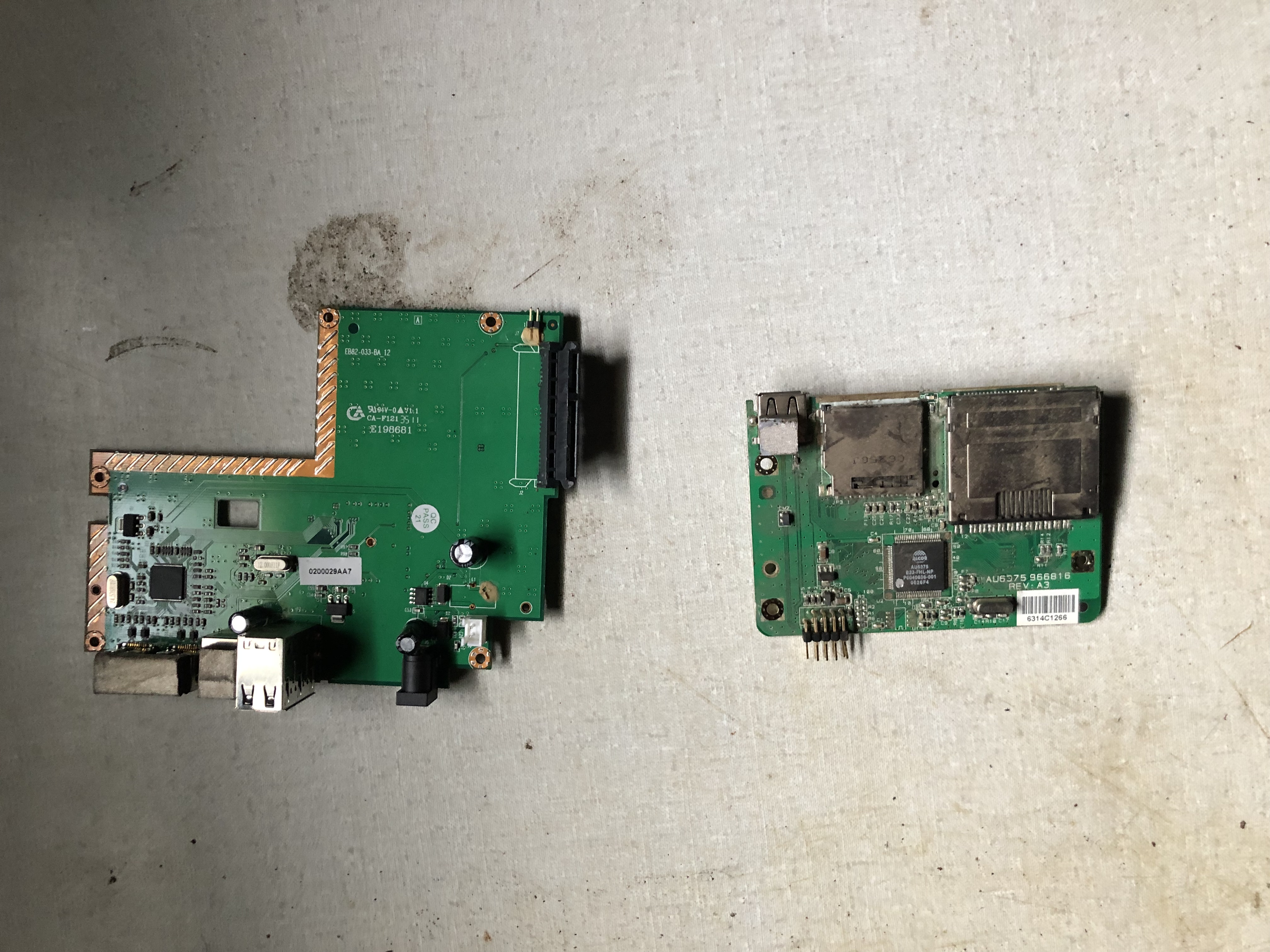

The receiver board on the top/right is midgrade

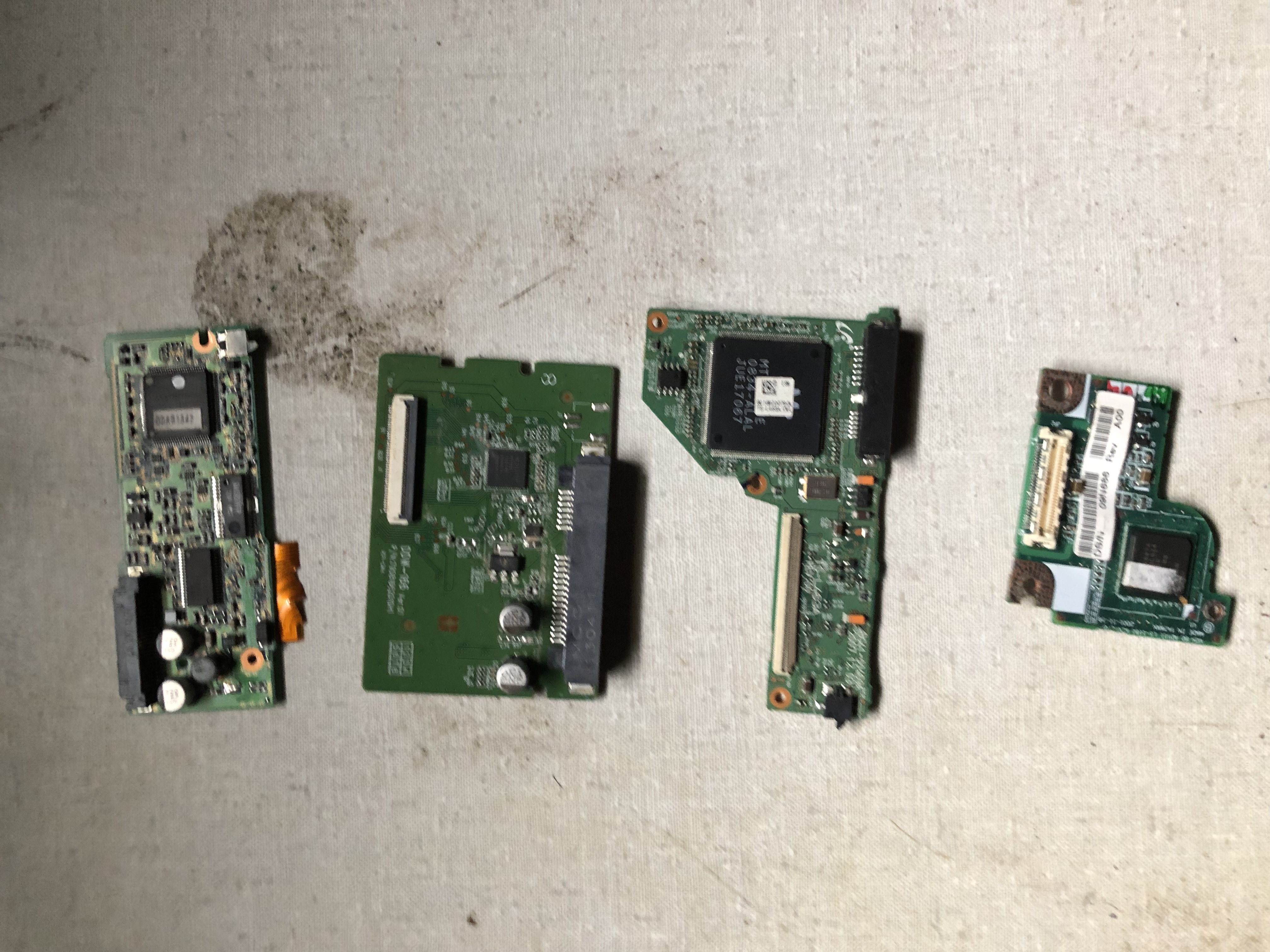

Other two peripheral

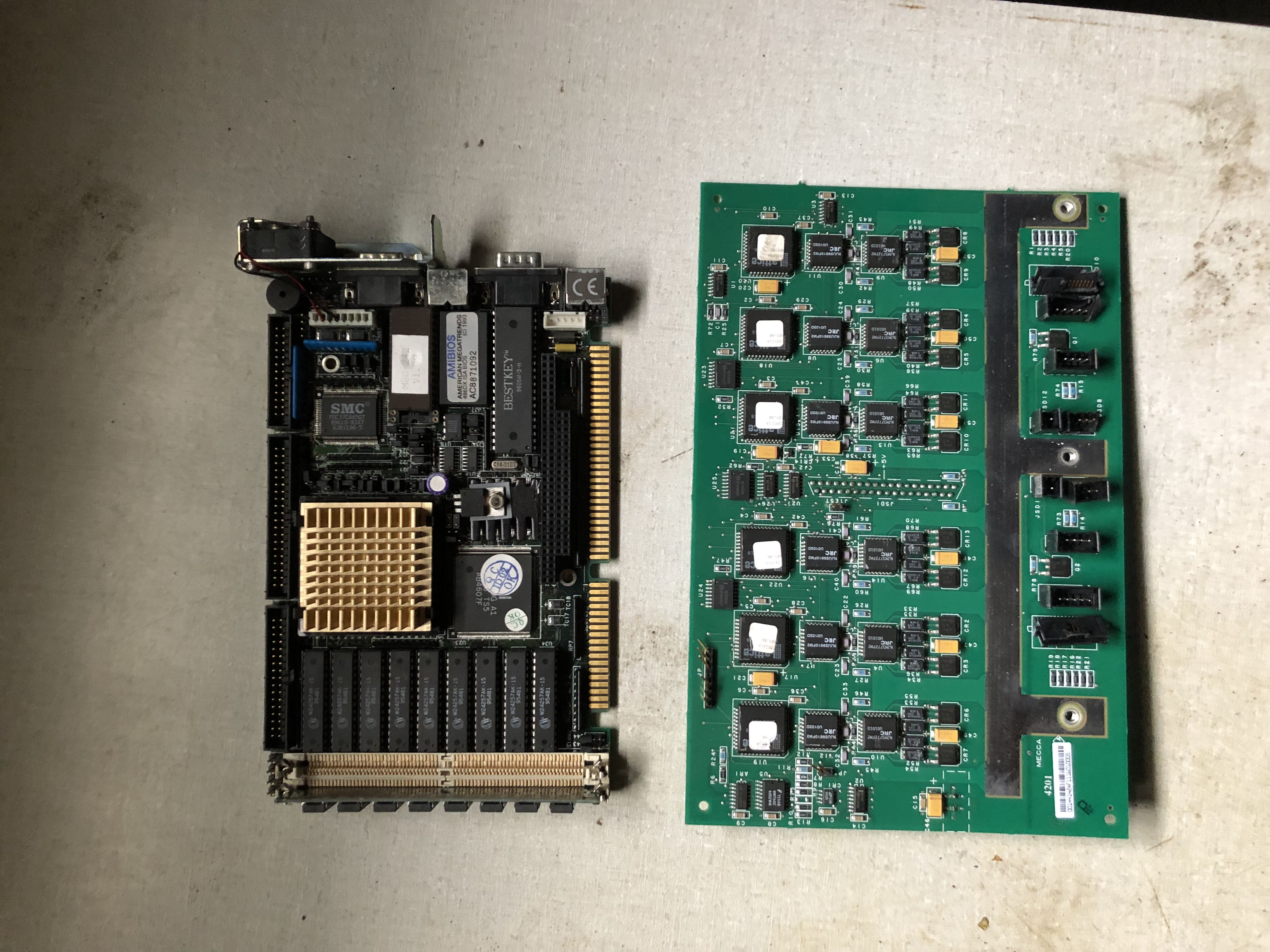

Big board is low telco
Gfc will be high telco. Remove heatsink

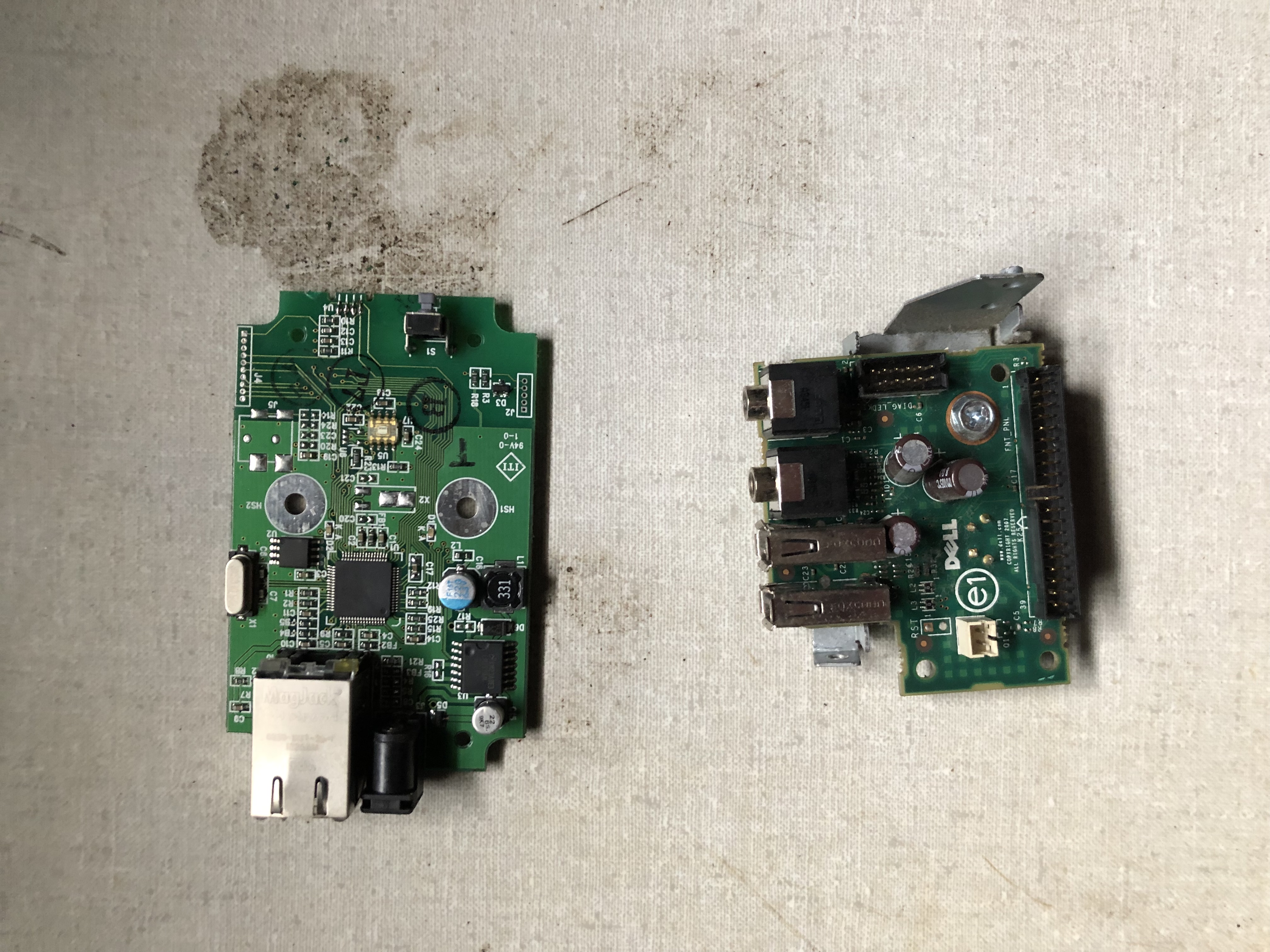

Small socket green. Remove all plastic. Turn the screw one half left to remove the cpu. Pop out the ram.

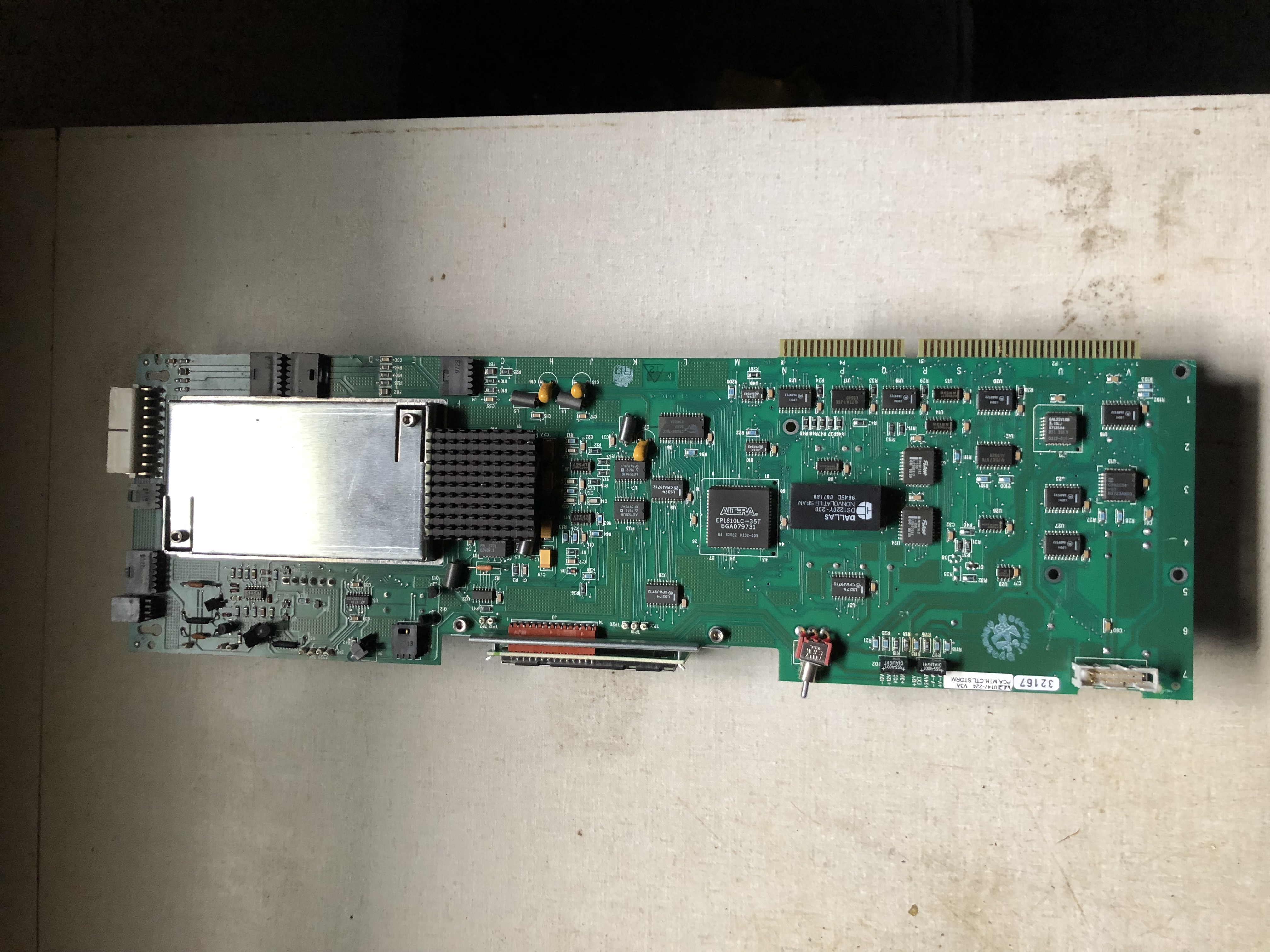

Gold finger card

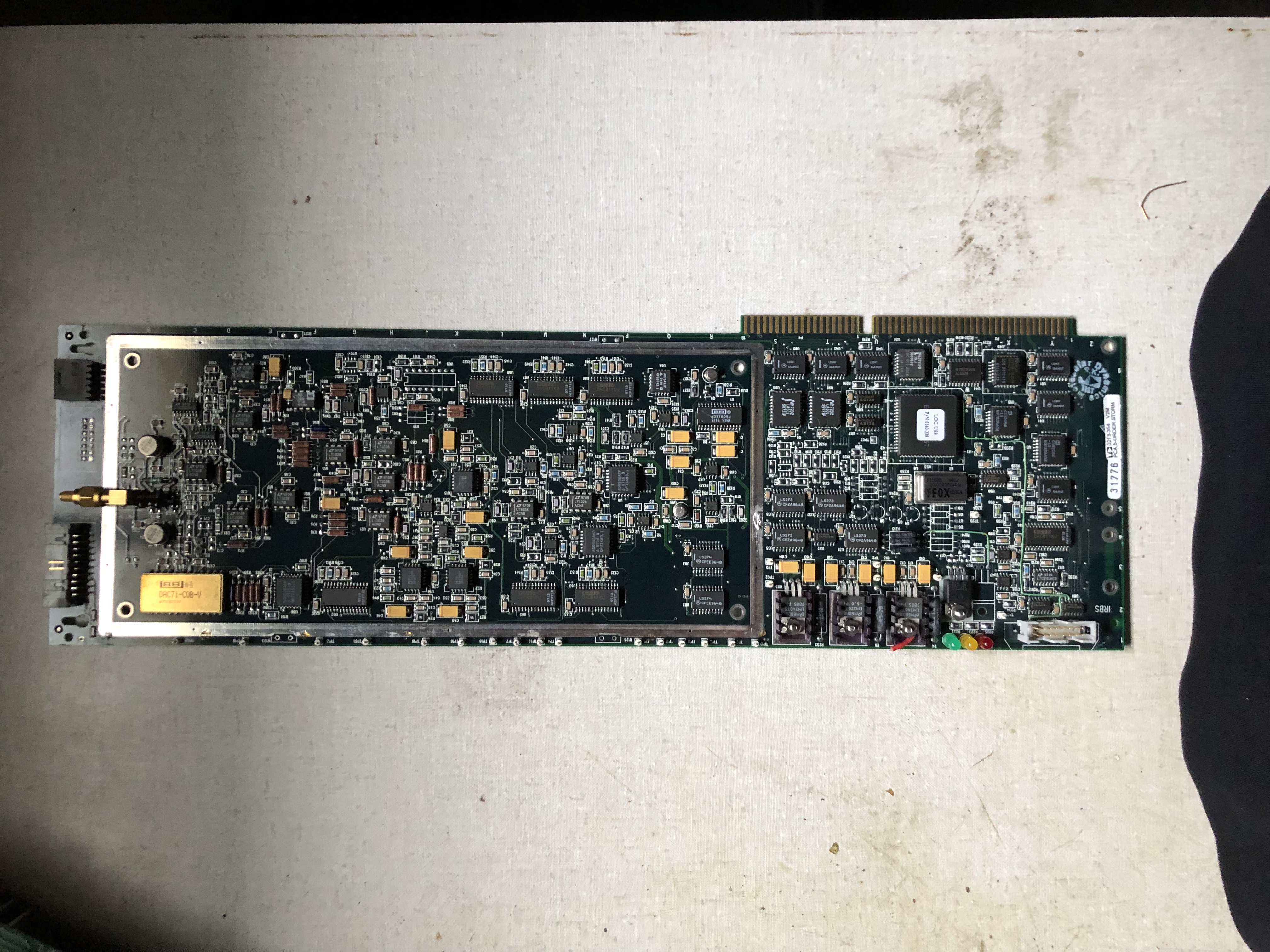

Gold finger card. Gently pull the Dallas box off. Remove the heat sink. Unscrew the shield cap. It will probably be Torx. 8 or 9 size

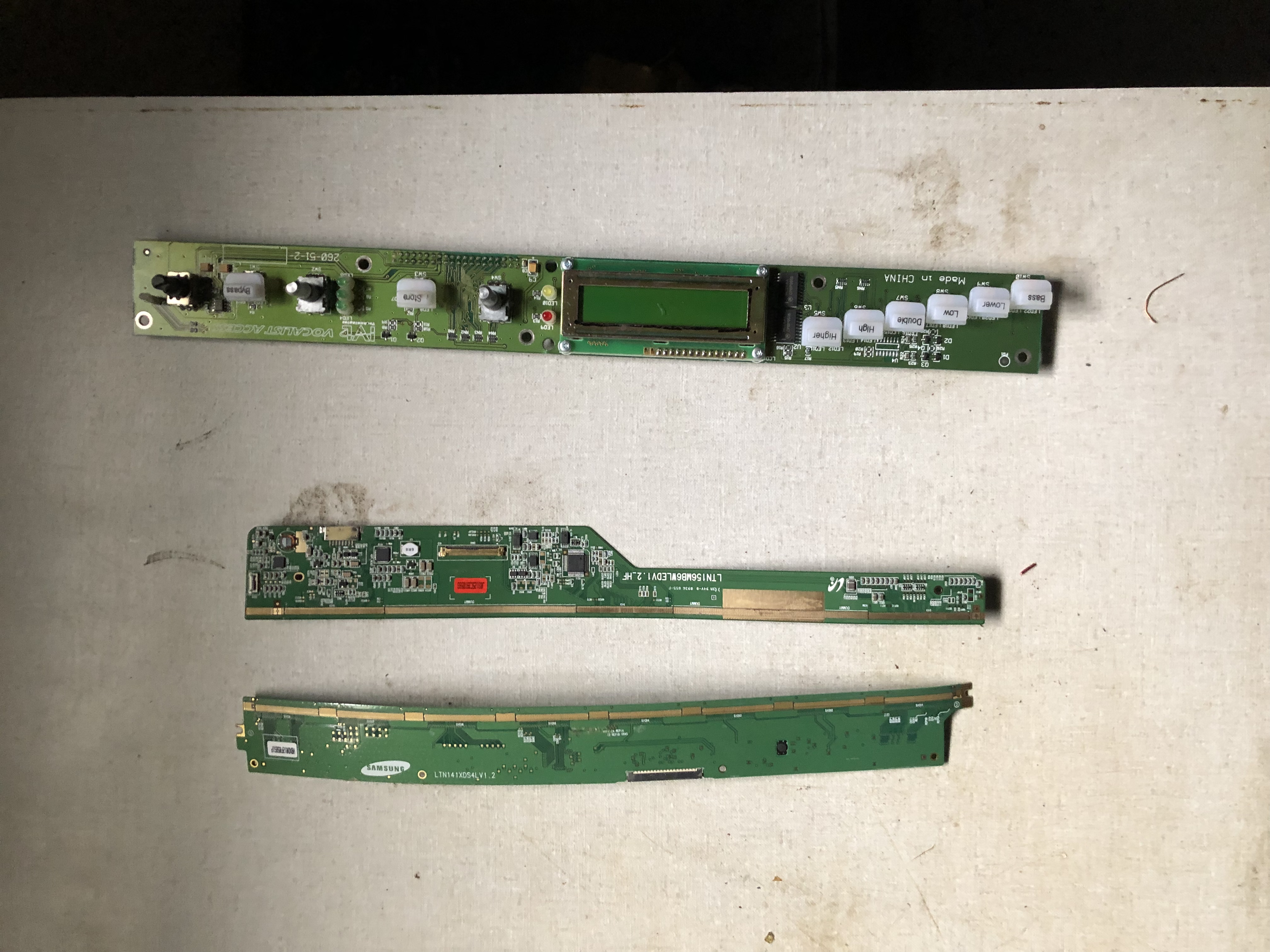

The almost square one is peripheral. Rest cd/dvd

Both peripheral

Both peripheral

_________________
-- my grades are my own and do not represent an offer from boardsort, nor are they guaranteed. Please keep that in mind.


Top
 Profile

 Post subject: Re: Id help please
PostPosted: Wed Apr 08, 2020 1:57 pm

Joined: Fri Oct 12, 2018 4:40 pm
Posts: 506
Hi,

I have a question regarding this post.

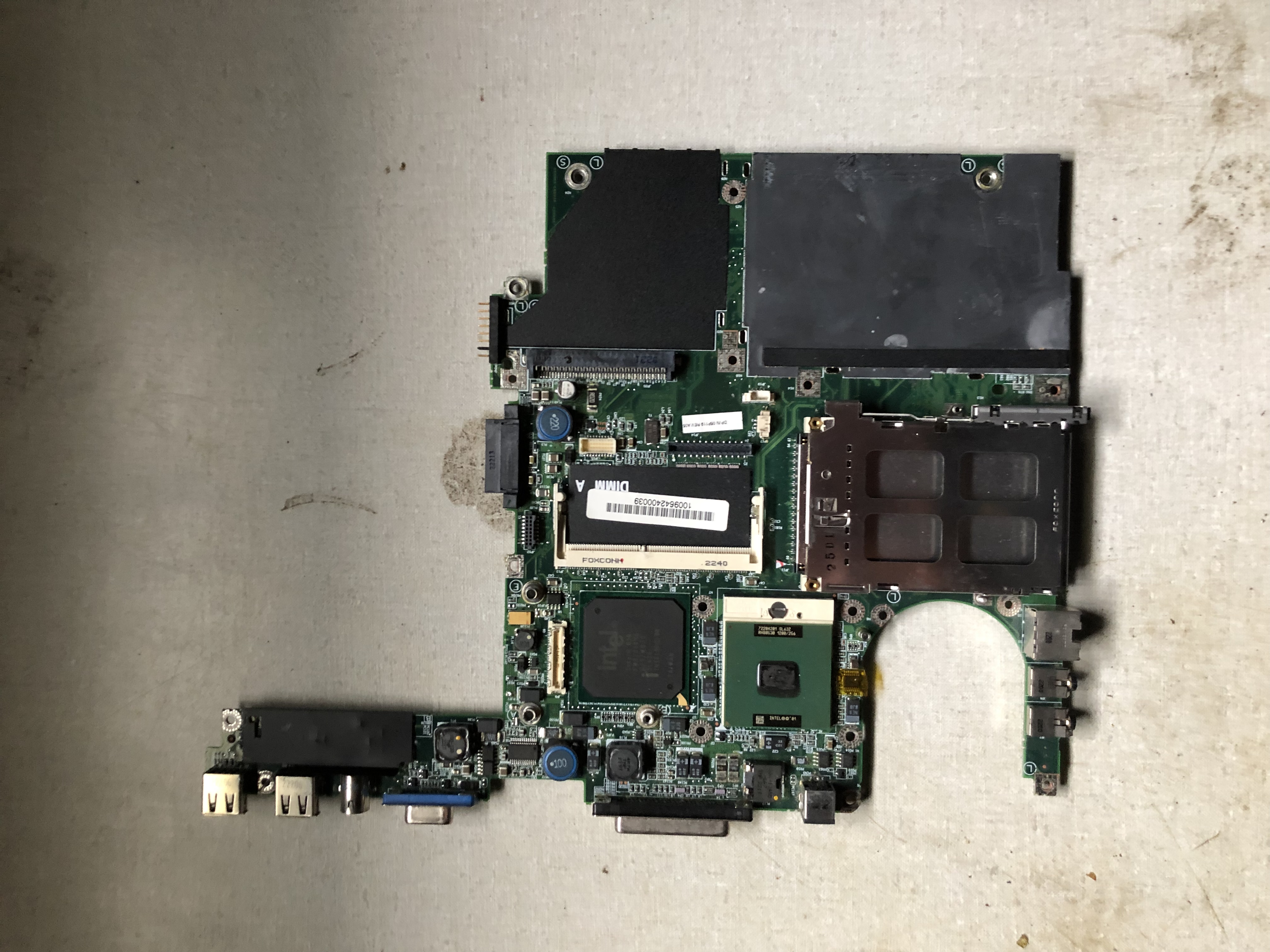

Why is the laptop motherboard in picture #3 not graded as a laptop motherboard?
Is it because the PCMCIA card plugin wasn't removed?


Top
 Profile

 Post subject: Re: Id help please
PostPosted: Wed Apr 08, 2020 2:18 pm

Joined: Tue Apr 07, 2020 3:09 pm
Posts: 42
So you can leave heat sinks on motherboards?


Top
 Profile

 Post subject: Re: Id help please
PostPosted: Wed Apr 08, 2020 2:29 pm
Site Admin
User avatar

Joined: Tue Feb 03, 2015 6:57 pm
Posts: 8788
Location: Low DOS
716scrap
No, As the first reply states remove heatsinks.

ccussins:
Because as it stands from the photo I can’t tell if it’s a laptop board or an AiO (all in one) board. Without being positive I will always default to the lower class. Better you get an upgrade than a downgrade. ;)
This is either an AiO or a very integrated laptop or embedded. I can’t be sure.

If it came from a laptop put it in the laptop class.
They dock workers know the various boards better than I do.

_________________
-- my grades are my own and do not represent an offer from boardsort, nor are they guaranteed. Please keep that in mind.
