diamondcomputer
PostPosted: Mon Oct 12, 2020 1:53 pm

Joined: Mon Jul 21, 2014 10:39 am
Posts: 242

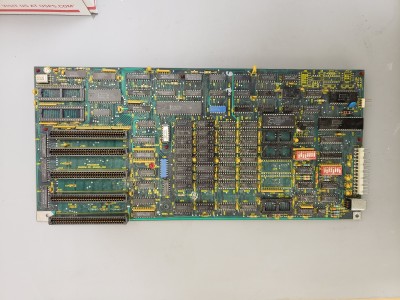

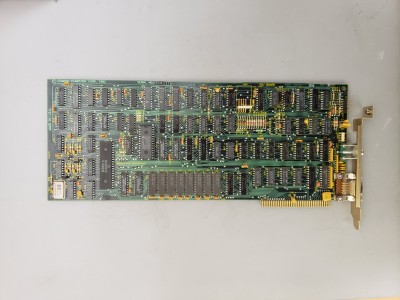

We are pulling apart an old Compaq. But not before booting it for a bit.


You do not have the required permissions to view the files attached to this post.

Top
 Profile
Reply with quote
diamondcomputer
PostPosted: Mon Oct 12, 2020 2:27 pm

Joined: Mon Jul 21, 2014 10:39 am
Posts: 242

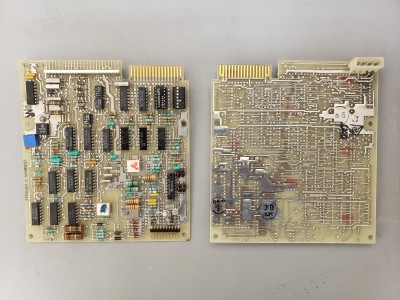

5 1/4" Floppy Drive Controller boards from the same machine


You do not have the required permissions to view the files attached to this post.

Top
 Profile
Reply with quote
lostinlodos
PostPosted: Mon Oct 12, 2020 11:54 pm
Site Admin
User avatar

Joined: Tue Feb 03, 2015 6:57 pm
Posts: 10533
Location: Low DOS

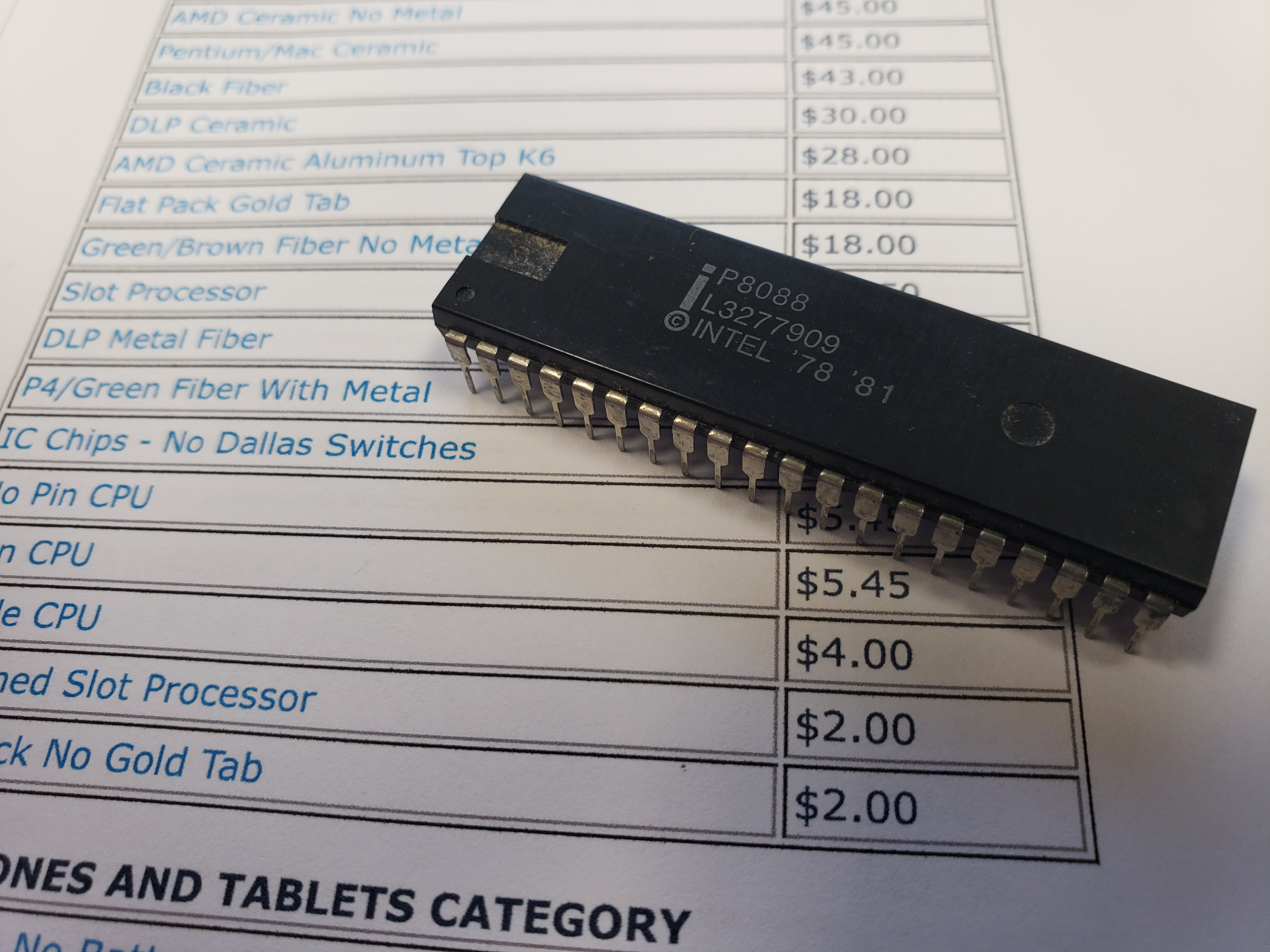

The processor is IC. That’s a very late 3rd party licence chip



The board is low telco. There’s too much board for a finger card class and not enough ICs to bump it to high telco.

_________________
42 6F 61 72 64 73 6F 72 74 2E 63 6F 6D
Top
 Profile
Reply with quote
diamondcomputer
PostPosted: Wed Oct 14, 2020 9:53 am

Joined: Mon Jul 21, 2014 10:39 am
Posts: 242

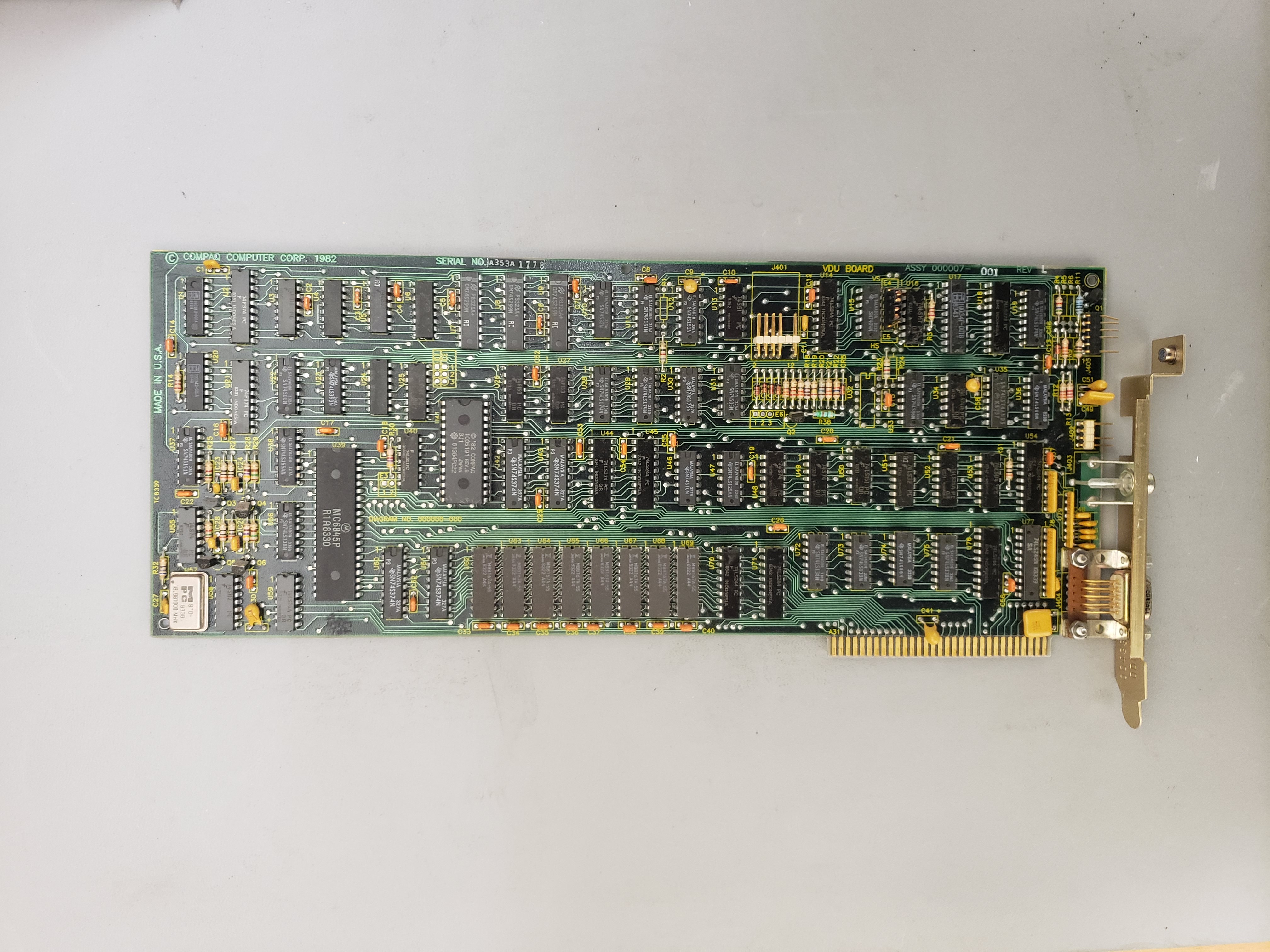

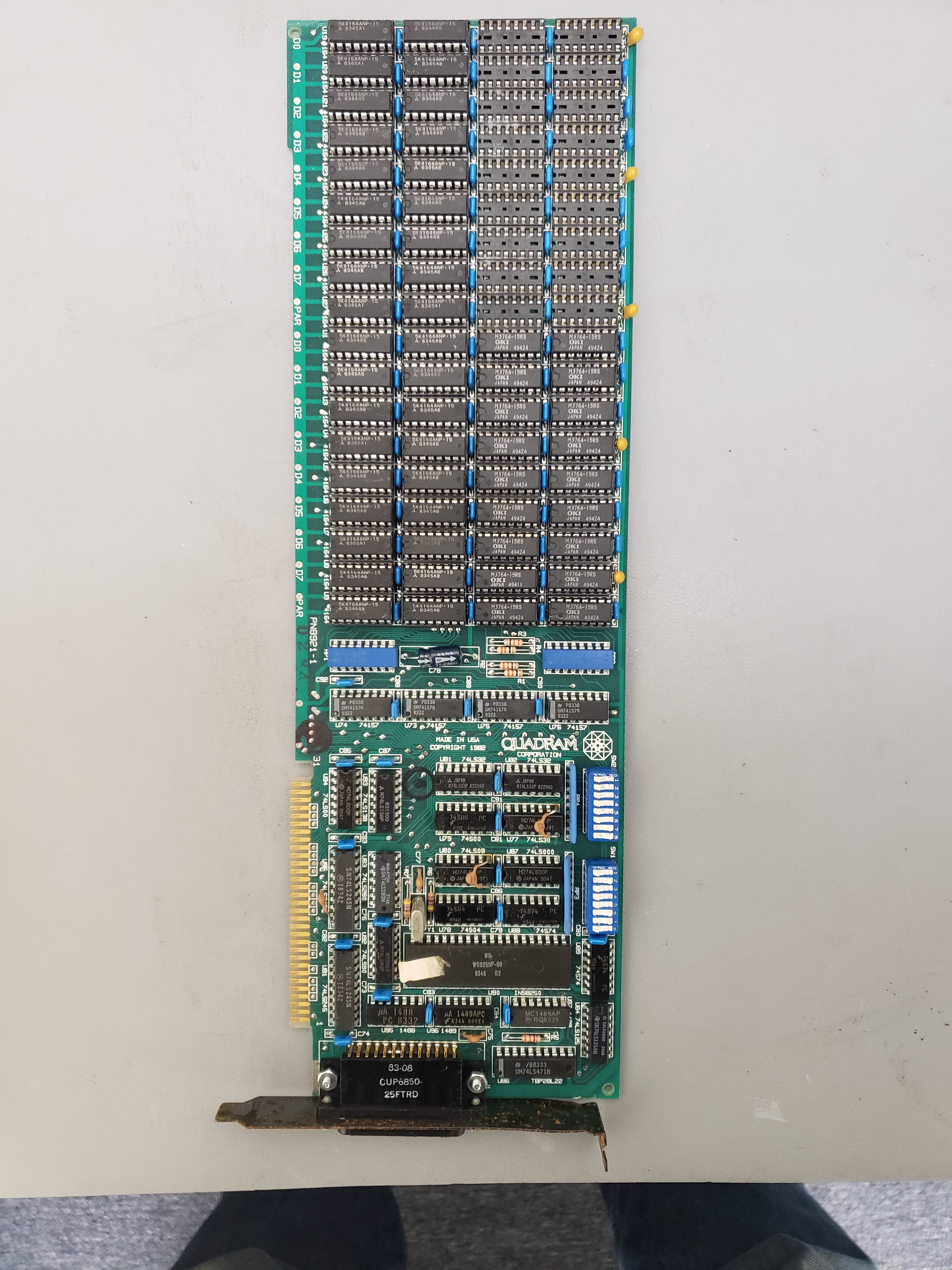

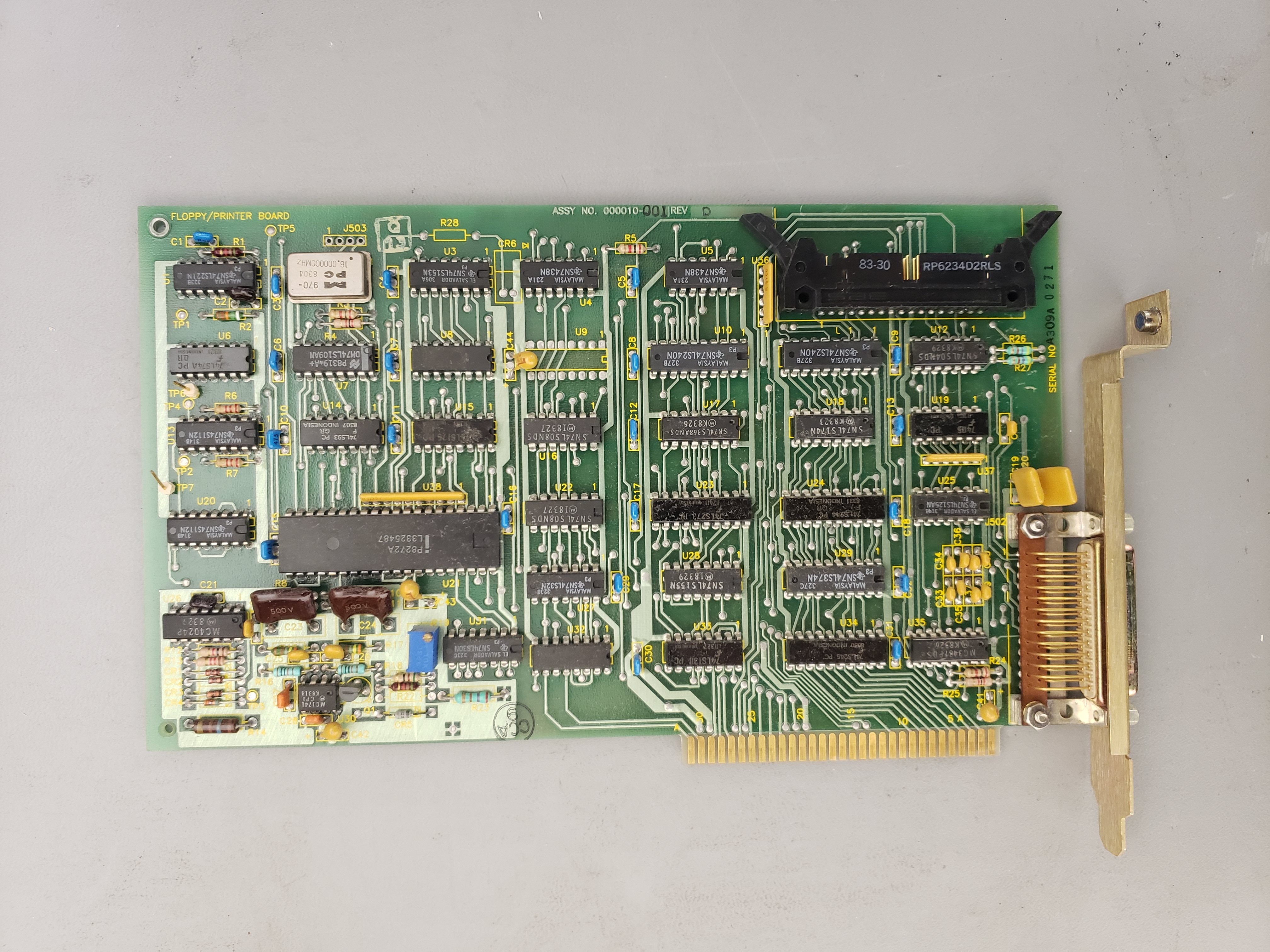

4 more boards pulled from that old Compaq Circa 1982. Looking for classification please.

C.


You do not have the required permissions to view the files attached to this post.

Top
 Profile
Reply with quote
lostinlodos
PostPosted: Wed Oct 14, 2020 2:12 pm
Site Admin
User avatar

Joined: Tue Feb 03, 2015 6:57 pm
Posts: 10533
Location: Low DOS
Low telco
Remove bracket fir high telco
Textbook high telco
Gold finger card

_________________
42 6F 61 72 64 73 6F 72 74 2E 63 6F 6D
Top
 Profile
Reply with quote
diamondcomputer
PostPosted: Thu Oct 15, 2020 9:55 am

Joined: Mon Jul 21, 2014 10:39 am
Posts: 242
If I am reading this properly the order below is the order or the pics? D-C-B-A??
Top
 Profile
Reply with quote
lostinlodos
PostPosted: Thu Oct 15, 2020 2:10 pm
Site Admin
User avatar

Joined: Tue Feb 03, 2015 6:57 pm
Posts: 10533
Location: Low DOS
Yes

_________________
42 6F 61 72 64 73 6F 72 74 2E 63 6F 6D
Top
 Profile
Reply with quote
lostinlodos
PostPosted: Thu Oct 15, 2020 2:11 pm
Site Admin
User avatar

Joined: Tue Feb 03, 2015 6:57 pm
Posts: 10533
Location: Low DOS
The last one doesn’t quite have enough component to board ratio for me to bump it.
