malphorian1973
 Post subject: Odd chip
PostPosted: Sat Jan 22, 2022 4:10 pm

Joined: Mon Apr 12, 2021 9:46 pm
Posts: 270

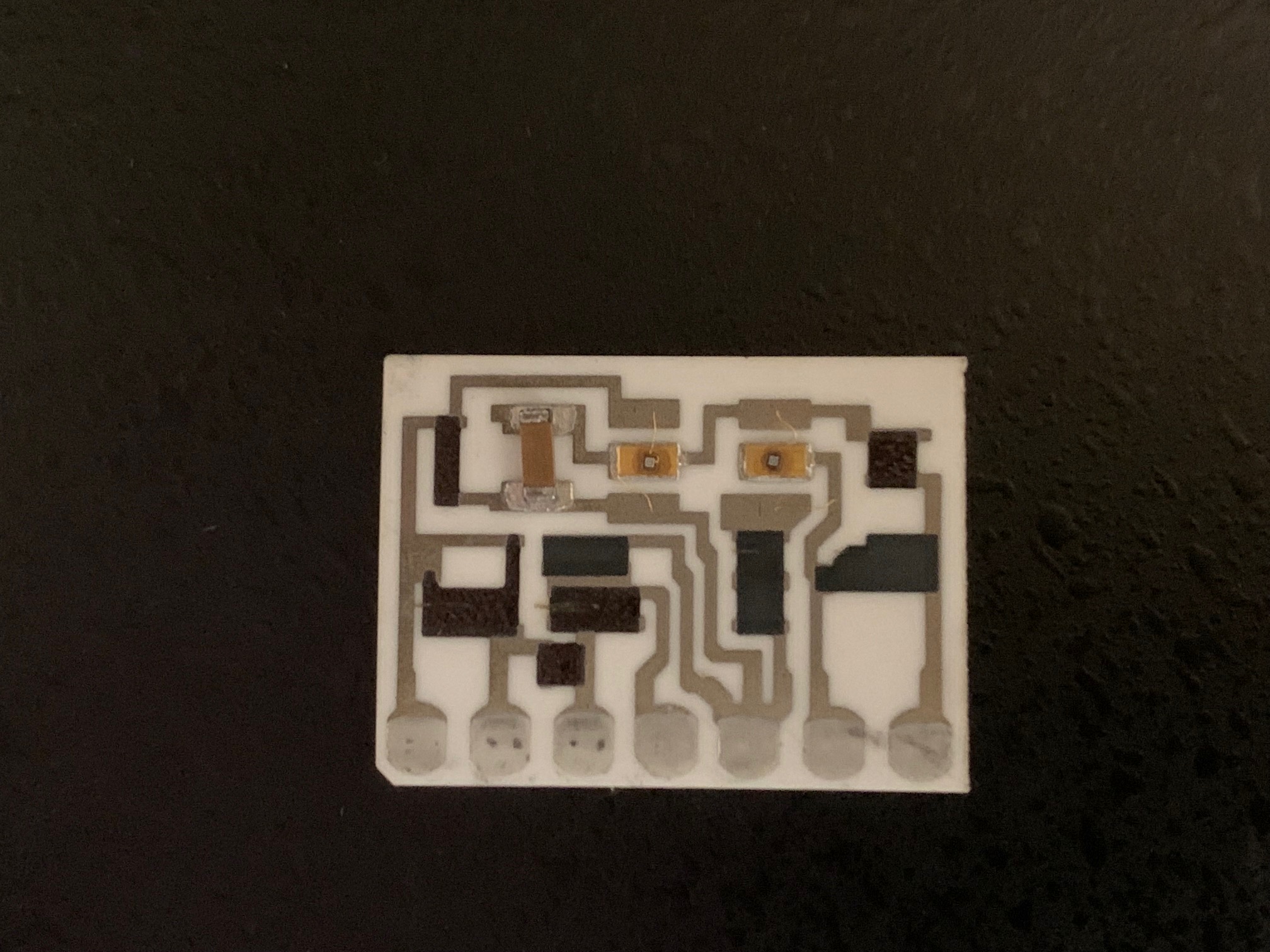

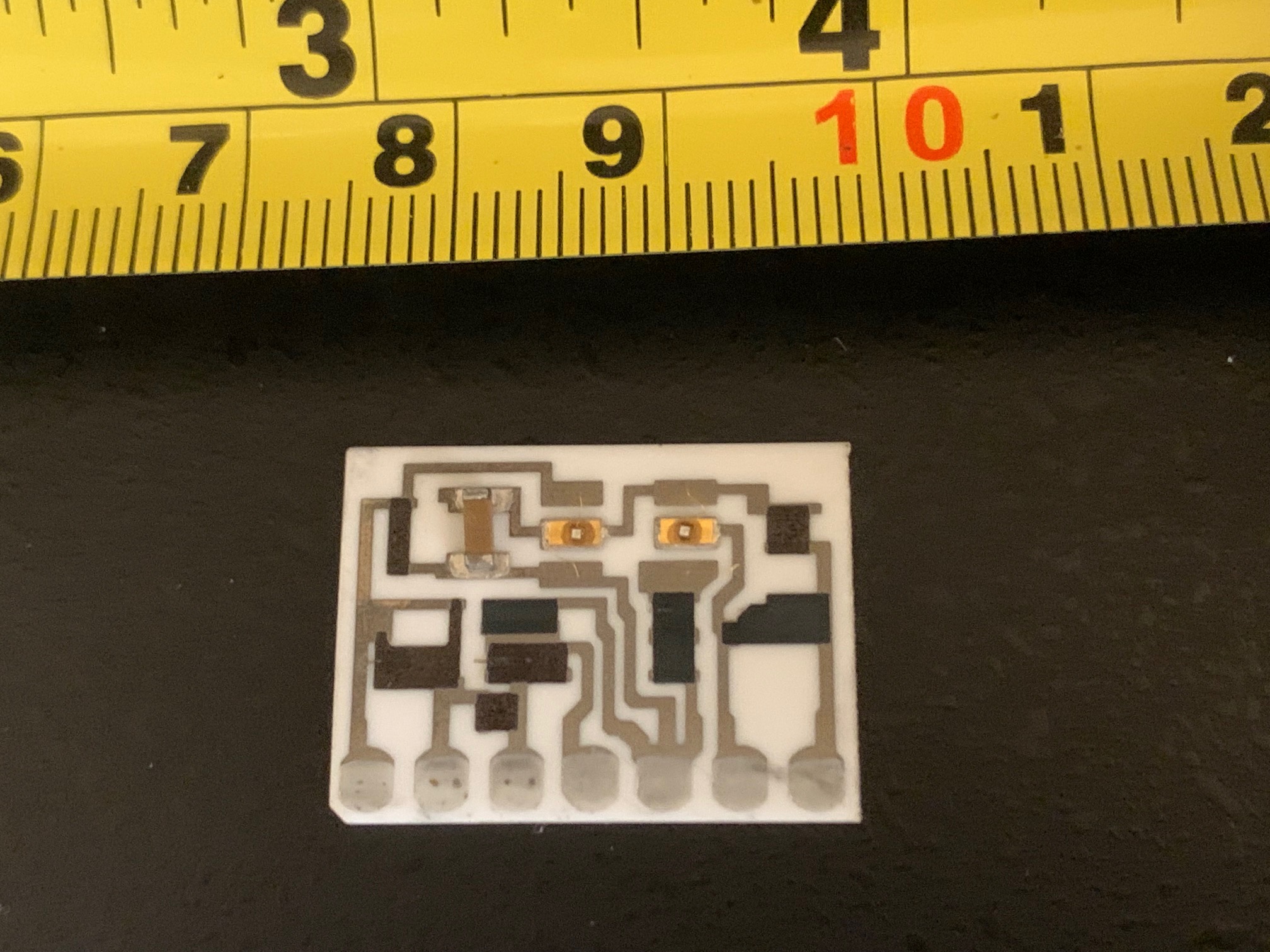

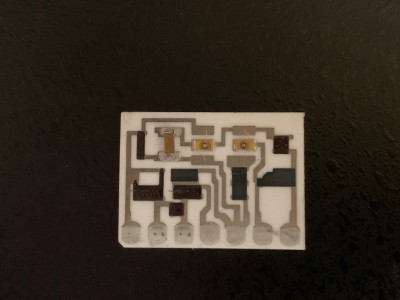

It's def. ceramic. If you look closely at it you can see that there are wafers imbedded in the little gold rectangles. What class do yawl think?


You do not have the required permissions to view the files attached to this post.

Top
 Profile
Reply with quote
RustyFuryIII
 Post subject: Re: Odd chip
PostPosted: Sun Jan 23, 2022 3:23 pm

Joined: Sat Sep 02, 2017 11:31 pm
Posts: 163
I’ve seen some that look very similar to those used in old HP Peak Power sensors and HP Average Power sensors.

Some of them are quite interesting looking and have added them to my oddball IC, circuit board collection.

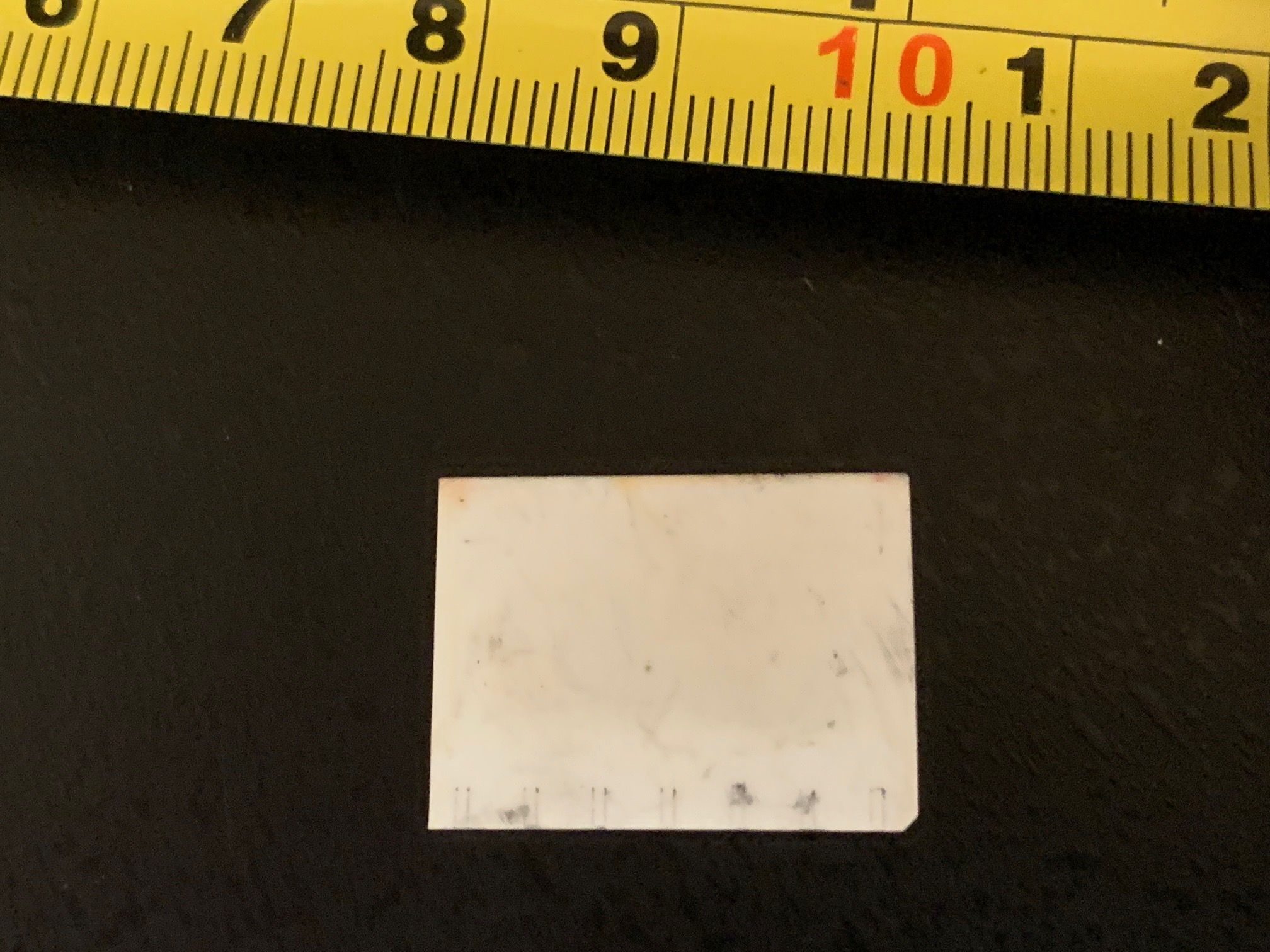

The back or board might be some type of ceramic or sintered material. Gold content miniscule. But neat just the same.

Definitely looks like a device that measures, monitors or generates low RF power.

No idea what category they would fall into.

Plain IC maybe. Since gold content to weight of item is small?
Top
 Profile
Reply with quote
malphorian1973
 Post subject: Re: Odd chip
PostPosted: Sun Jan 23, 2022 5:30 pm

Joined: Mon Apr 12, 2021 9:46 pm
Posts: 270
I think you absolutely nailed this one Rusty as I am pretty sure that this is an early GM radio RF power module chip. Thank you for your input.
