Trying to figure out how best to sort these PCBA's, components heat sinks, and gold contacts and new SMT IC's . I have hundreds if not thousands of each item in the photos. And trying to figure out how to correctly sort them for shipment.
| Attachments: |

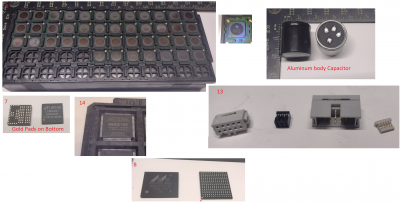

File comment: 6 & 8, IC with gold corner on top, and IC with gold corner on bottom. Not sure if to group them the same or not, or which group.
7. Has gold pads on the bottom of the part, what group to put these in?
13, are connector ends, are all of these acceptable connectors end?
5. Large aluminum capacitor, I know most places don't usually buy these, but I have an entire pallet full of them. (around 5000 total parts, all brand new from manufacturer)
Boardsort3.png [ 4.6 MiB | Viewed 1077 times ]
|

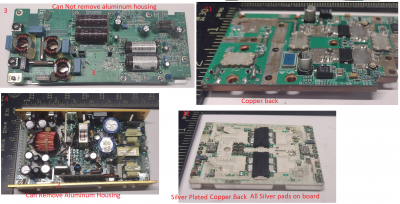

File comment: 3 and 4 are very similiar PCBA's, 4 is very easy to remove aluminum case on the bottom. 3 is much more difficult to remove. How to sort these and should I remove all aluminum?
11 & 12 are PCB boards, 11 is gold finish on board with solid copper backing. 12. Is silver finish board with silver plated copper on the back.
Boardsort2.png [ 4.53 MiB | Viewed 1077 times ]
|

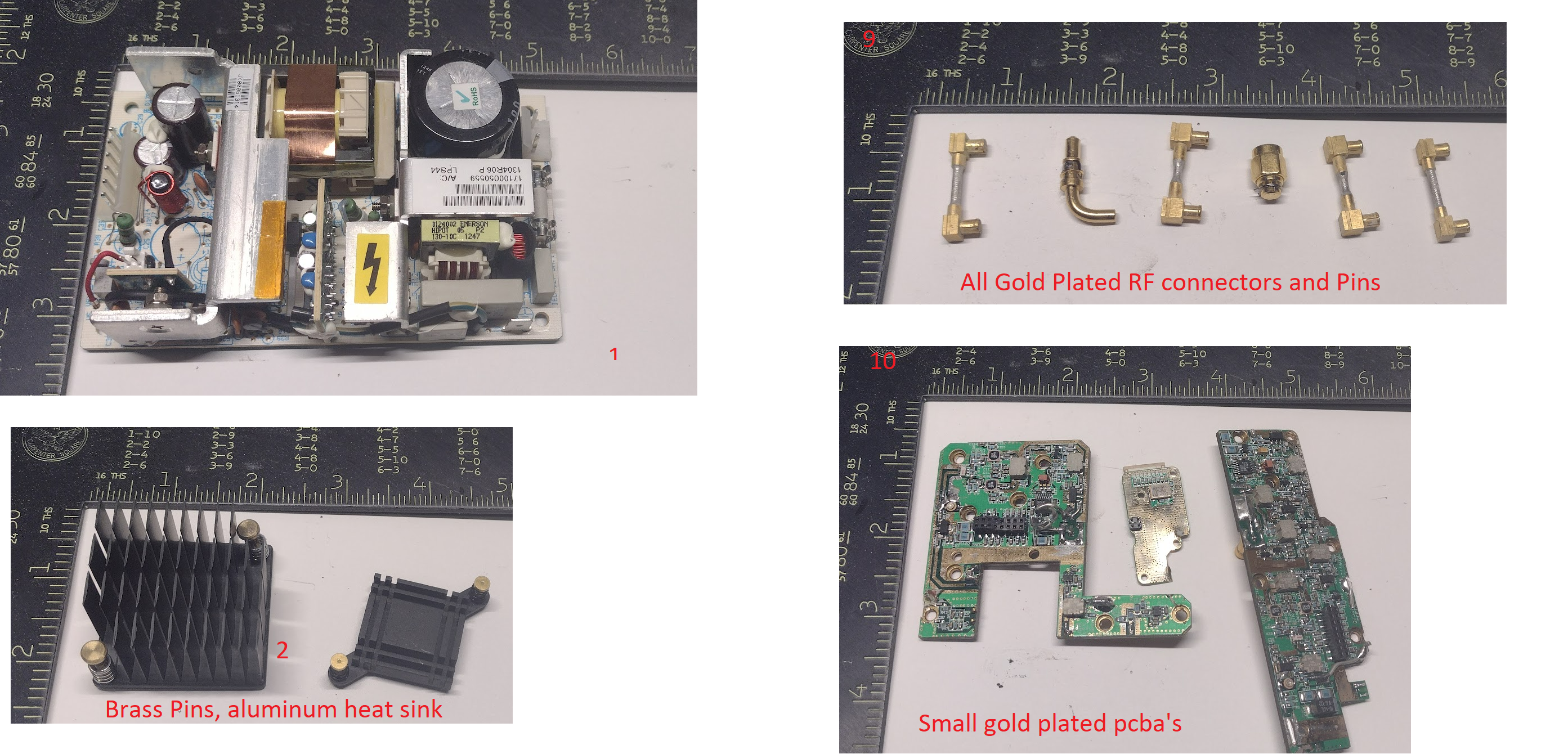

File comment: 1. PCB board, only single side all thru-hole parts
2. These are aluminum heat sinks, brass pins installed with SS spring. Is it worth to remove brass pins on these?
9. Self explanatory, but not sure how to sort.
10. Small gold plated PCBA,s have gold ground planes on them
Boardsort1.png [ 4.39 MiB | Viewed 1077 times ]
|
|
|
