 Post subject: Please grade pt.2
PostPosted: Mon Sep 16, 2024 11:32 am

Joined: Sun Sep 08, 2024 9:54 am
Posts: 36

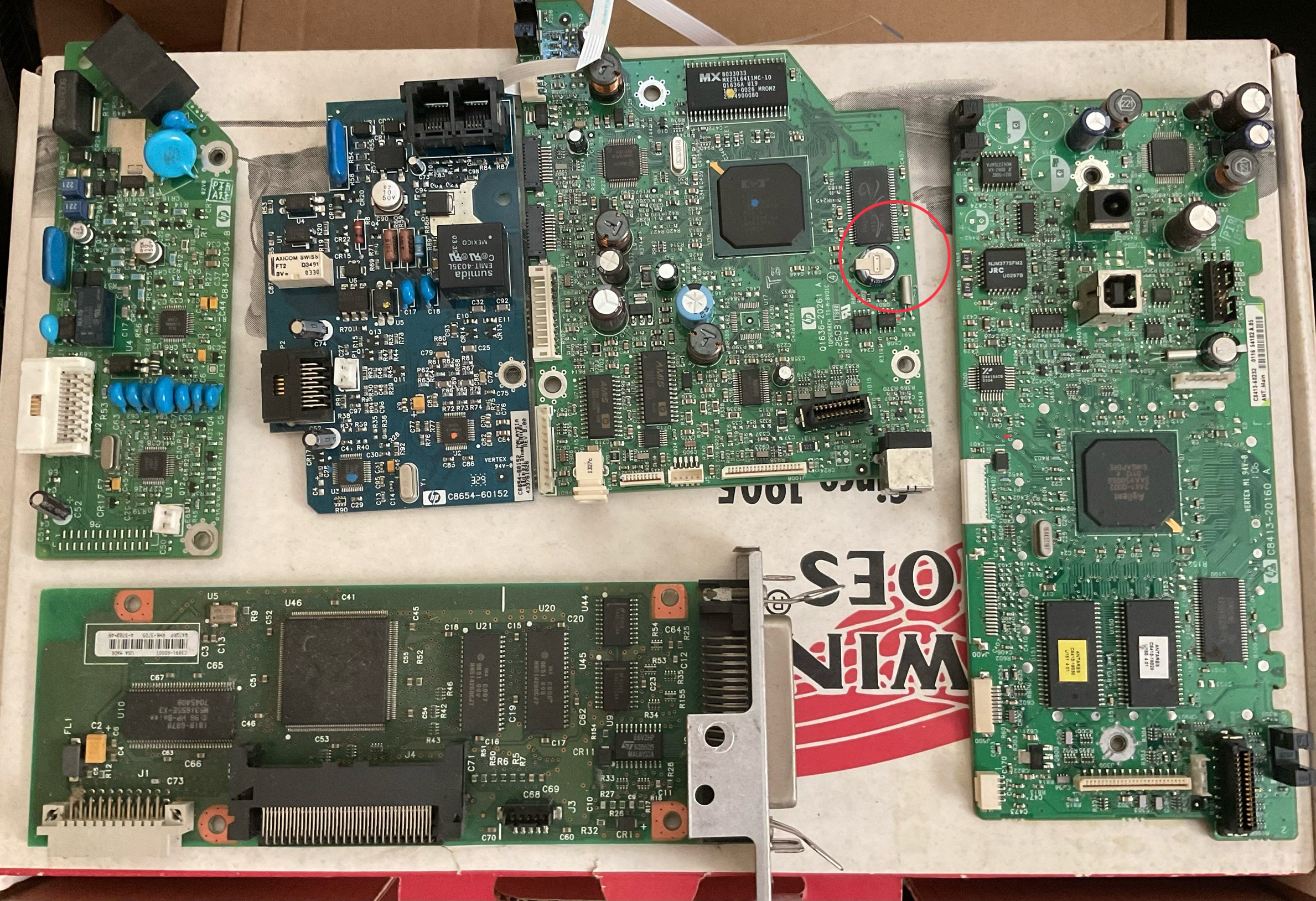

Top left has reg phone jacks. Remove or stay in circle? Do i remove the small wire wound copper coils? I am guessing these r periph. Is it periph if it is an I/O board from inside a comp instead of external device?


Attachments:
IMG_2811.jpeg [ 1.37 MiB | Viewed 1399 times ]


Last edited by Bkl on Sat Sep 21, 2024 8:17 pm, edited 1 time in total.
Top
 Profile

 Post subject: Re: Please rate pt.2
PostPosted: Tue Sep 17, 2024 1:00 pm

Joined: Tue May 14, 2019 11:09 am
Posts: 745
The thing in the red circle looks like a battery, remove it just in case. These boards seem to represent the entire category of high grade peripheral. The 2 on the upper left are on the bottom end and the other three are on the high side. Remove the bracket on the bottom board. Peripheral is just the name of the class, not the function of the board


Top
 Profile

 Post subject: Re: Please rate pt.2
PostPosted: Wed Sep 18, 2024 10:28 am

Joined: Sun Sep 08, 2024 9:54 am
Posts: 36
Thank you. I just watched the vid on periph. Have some lcd tv boards I thought weren't worth much.
Edit Not a batt. Cap. I 4get that parts are marked.
