opossum
 Post subject: help to identify
PostPosted: Fri Feb 28, 2020 5:36 am

Joined: Thu Jan 28, 2016 8:57 pm
Posts: 10

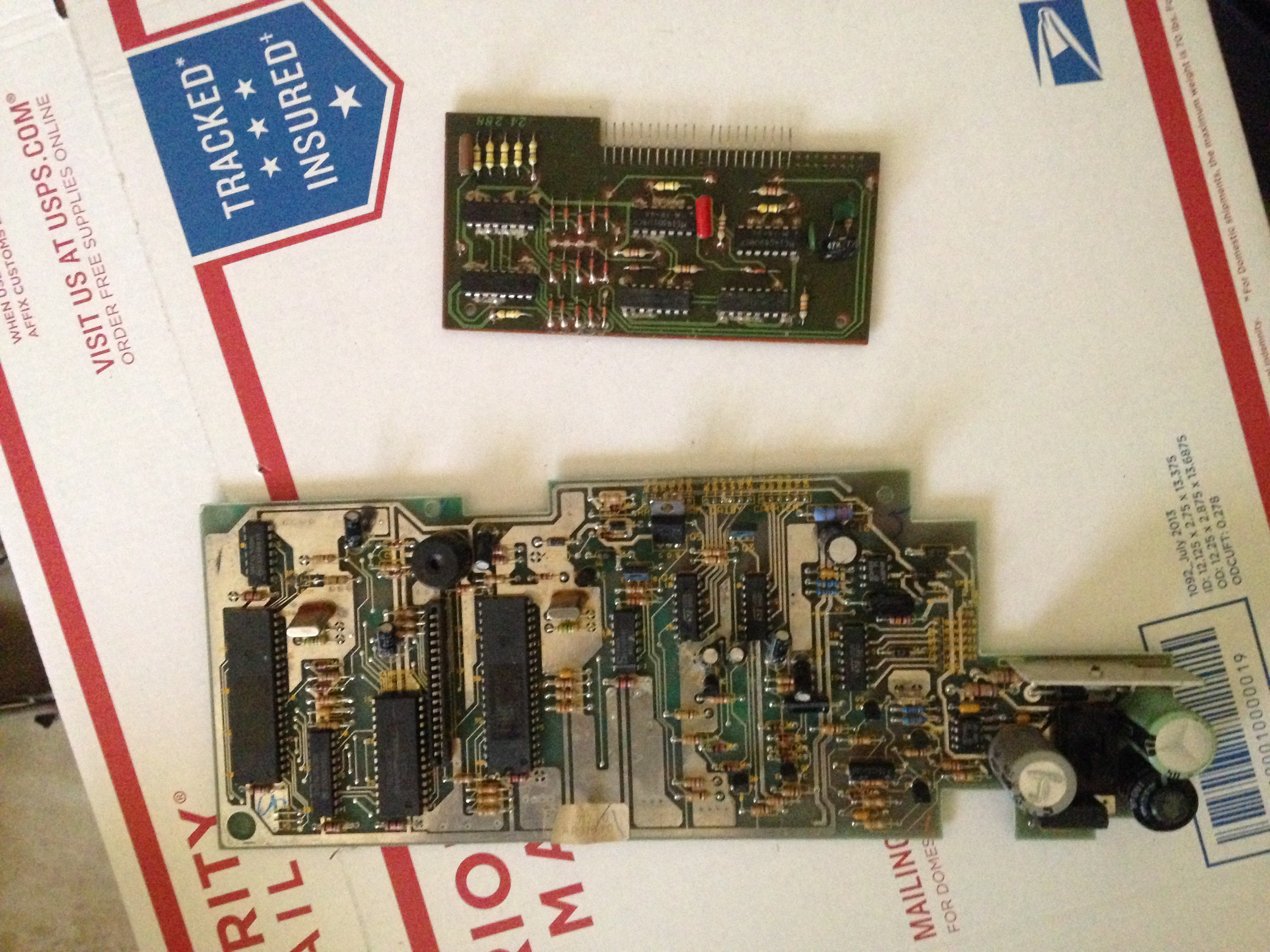

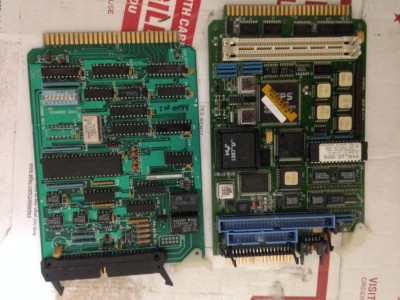

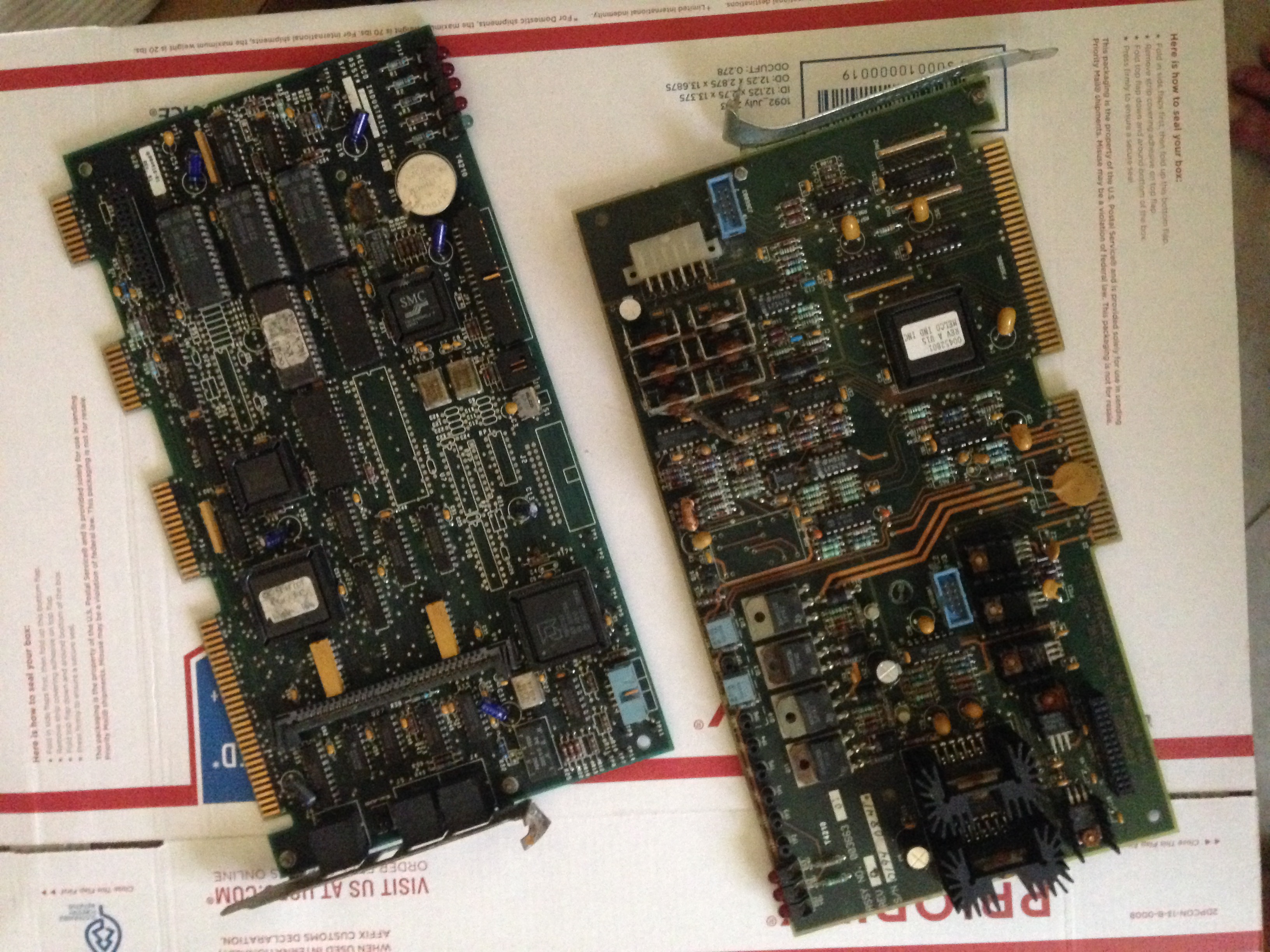

High Grade Telecom or Gold Cap Chip Board please help

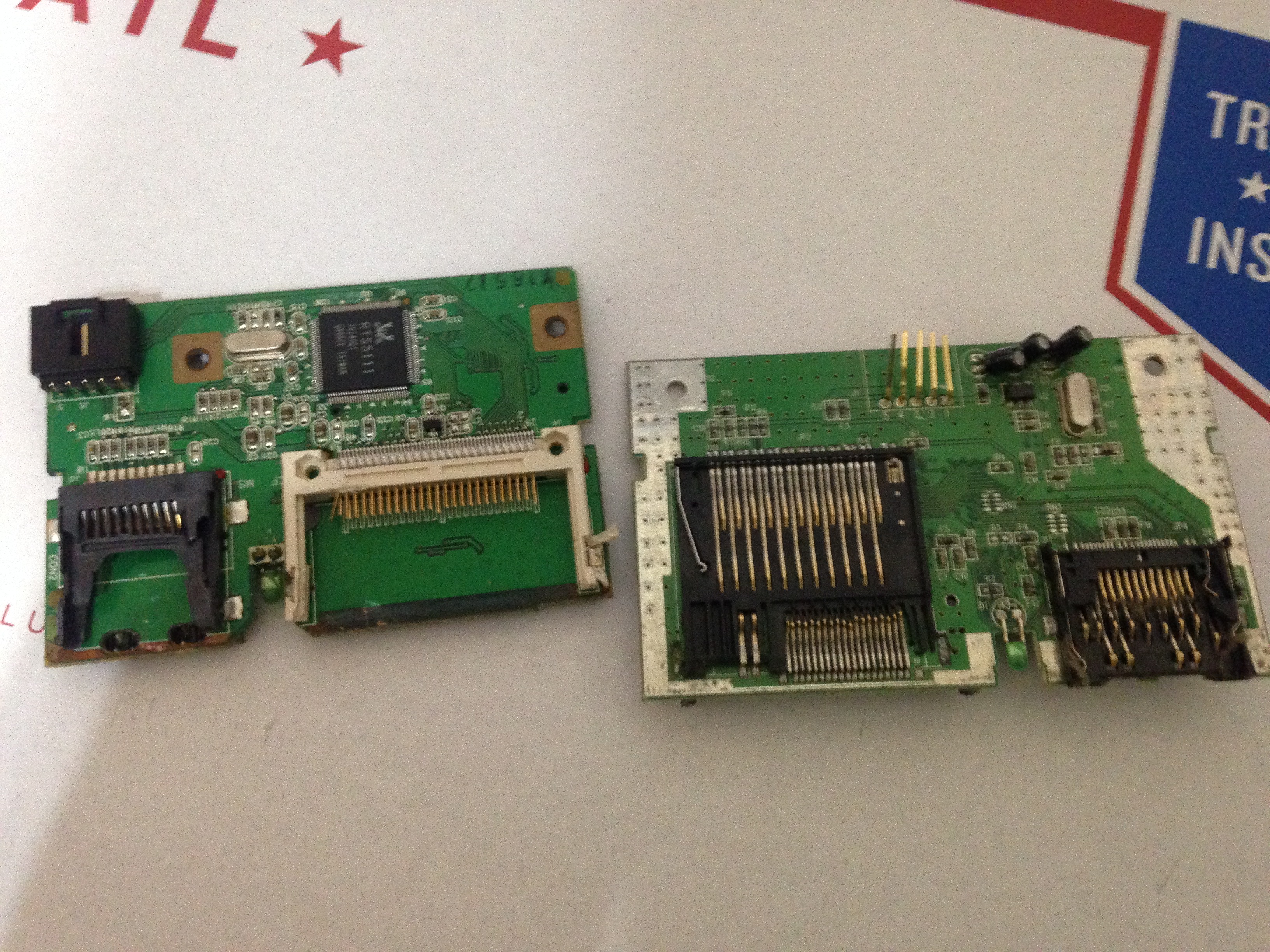

Added desktop Card Readers What group do they fall under thanks


You do not have the required permissions to view the files attached to this post.

Last edited by opossum on Fri Feb 28, 2020 11:34 am, edited 4 times in total.

Top
 Profile
Reply with quote
Kaiser613
 Post subject: Re: help to identify
PostPosted: Fri Feb 28, 2020 11:00 am
User avatar

Joined: Fri Feb 07, 2020 3:25 pm
Posts: 156
I don't see any gold cap chips in those pics, the one on the left should make hi telco but the other 2 prolly only peripheral, maybe low telco, the card readers are peripheral

_________________
Representin otown, central FL
Top
 Profile
Reply with quote
rdw1121
 Post subject: Re: help to identify
PostPosted: Fri Feb 28, 2020 12:36 pm

Joined: Fri Jul 01, 2016 6:55 pm
Posts: 750
Location: Texas
pull the battery third picture
Top
 Profile
Reply with quote
lostinlodos
 Post subject: Re: help to identify
PostPosted: Fri Feb 28, 2020 1:02 pm
Site Admin
User avatar

Joined: Tue Feb 03, 2015 6:57 pm
Posts: 10225
Location: Low DOS
Peripheral
peripheral

Peripheral/peripheral

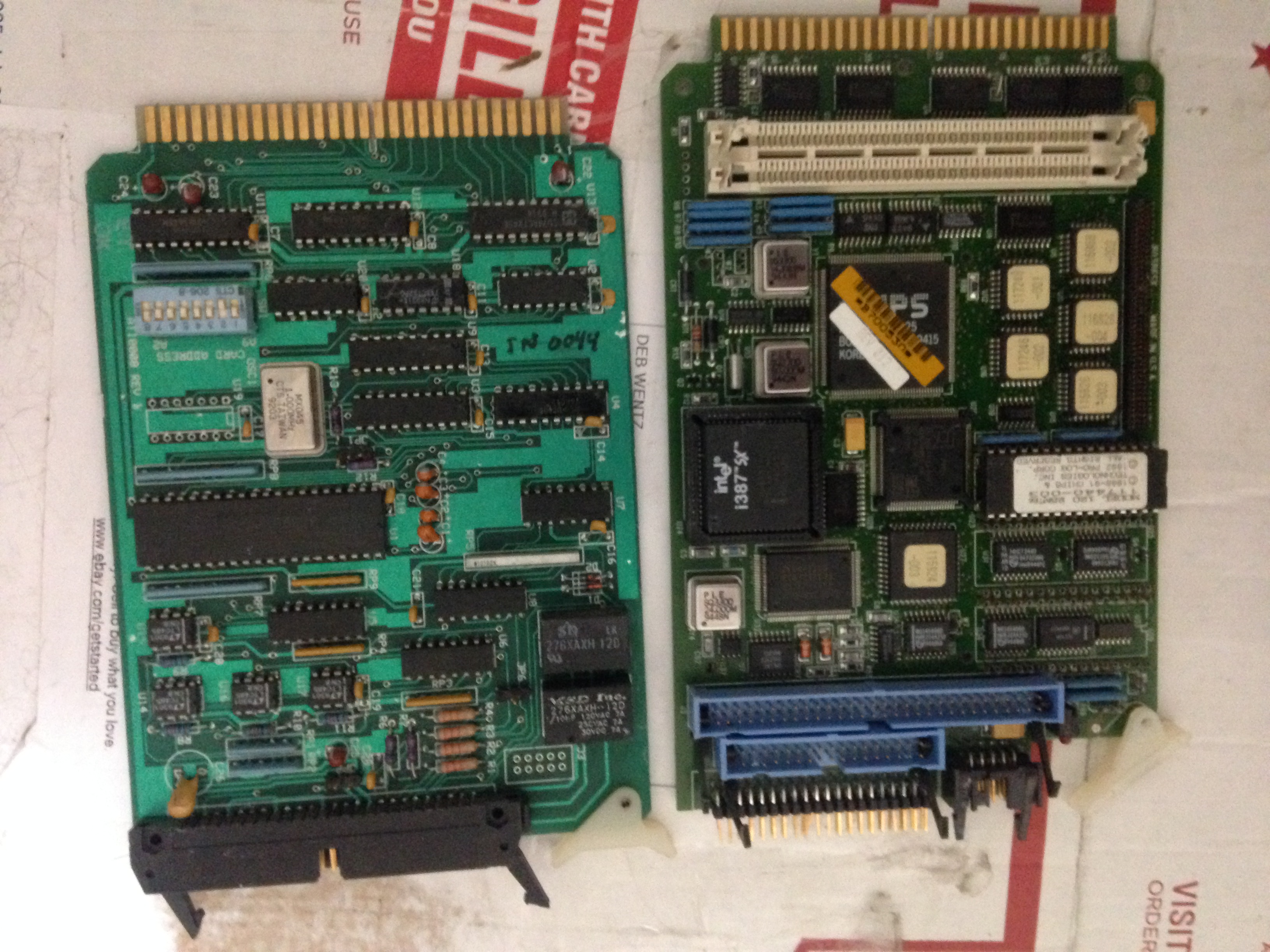

Gold finger card w bracket/low telco (note)

Note:As is right one is low telco.
Remove the heat sinks for clean gold finger card w bracket

Please remove batteries

_________________
42 6F 61 72 64 73 6F 72 74 2E 63 6F 6D
Top
 Profile
Reply with quote
opossum
 Post subject: Re: help to identify
PostPosted: Fri Feb 28, 2020 2:15 pm

Joined: Thu Jan 28, 2016 8:57 pm
Posts: 10
Thanks so much both Large PCI Cards guess Low Telecom means PCI
Top
 Profile
Reply with quote
lostinlodos
 Post subject: Re: help to identify
PostPosted: Fri Feb 28, 2020 4:35 pm
Site Admin
User avatar

Joined: Tue Feb 03, 2015 6:57 pm
Posts: 10225
Location: Low DOS
Not necessarily. I downgrade the right one slightly because of the heat sinks. Not enough to be the lower dirty class of finger card boards; but more than the correct class can handle.

If you remove the two small heatsinks it will bounce the board to standard gold finger card class.



Arg: right card in small view. Left card in large view. It’s rotating again

_________________
42 6F 61 72 64 73 6F 72 74 2E 63 6F 6D
Top
 Profile
Reply with quote
rdw1121
 Post subject: Re: help to identify
PostPosted: Fri Feb 28, 2020 11:00 pm

Joined: Fri Jul 01, 2016 6:55 pm
Posts: 750
Location: Texas
Opossum,

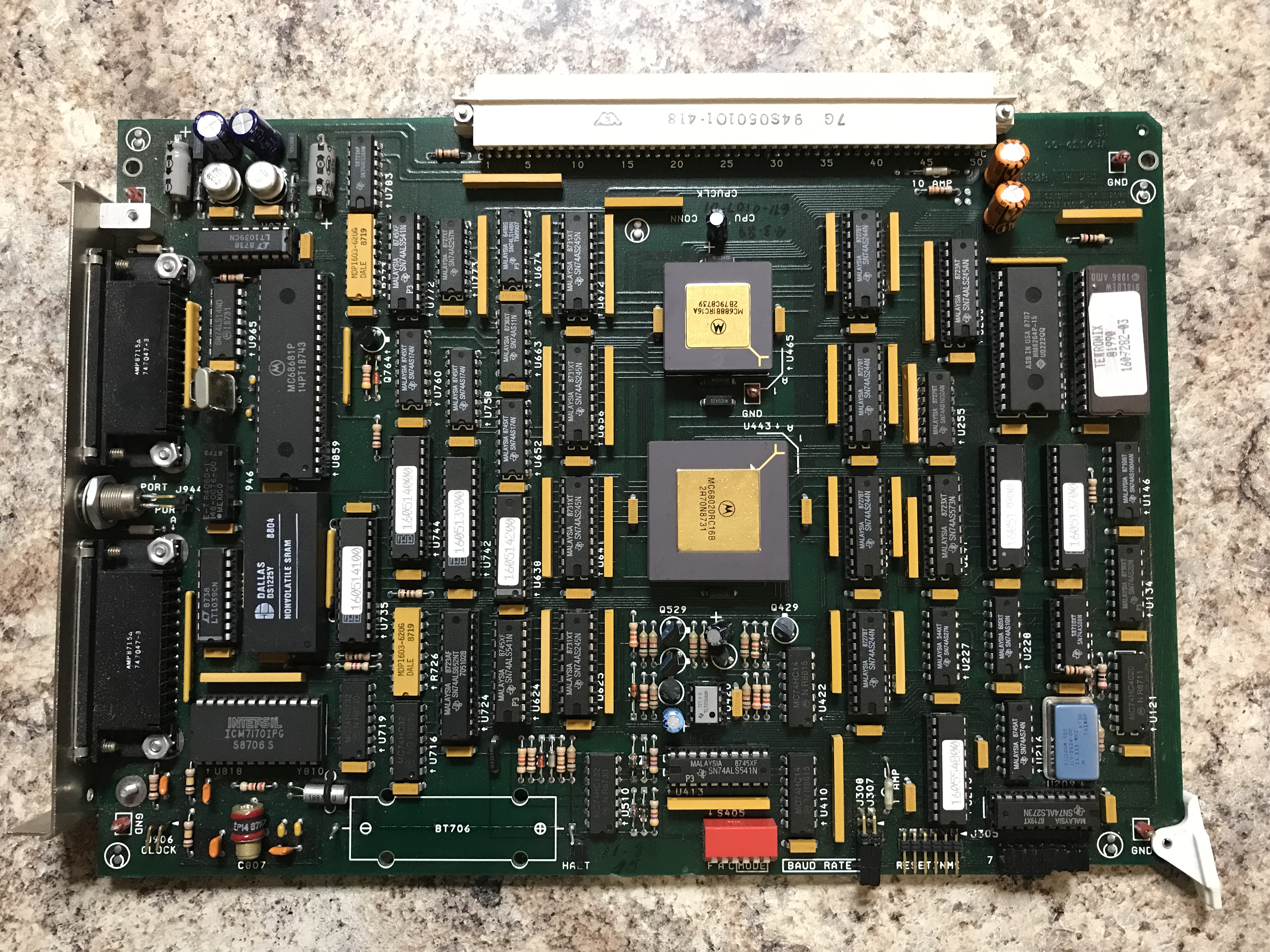

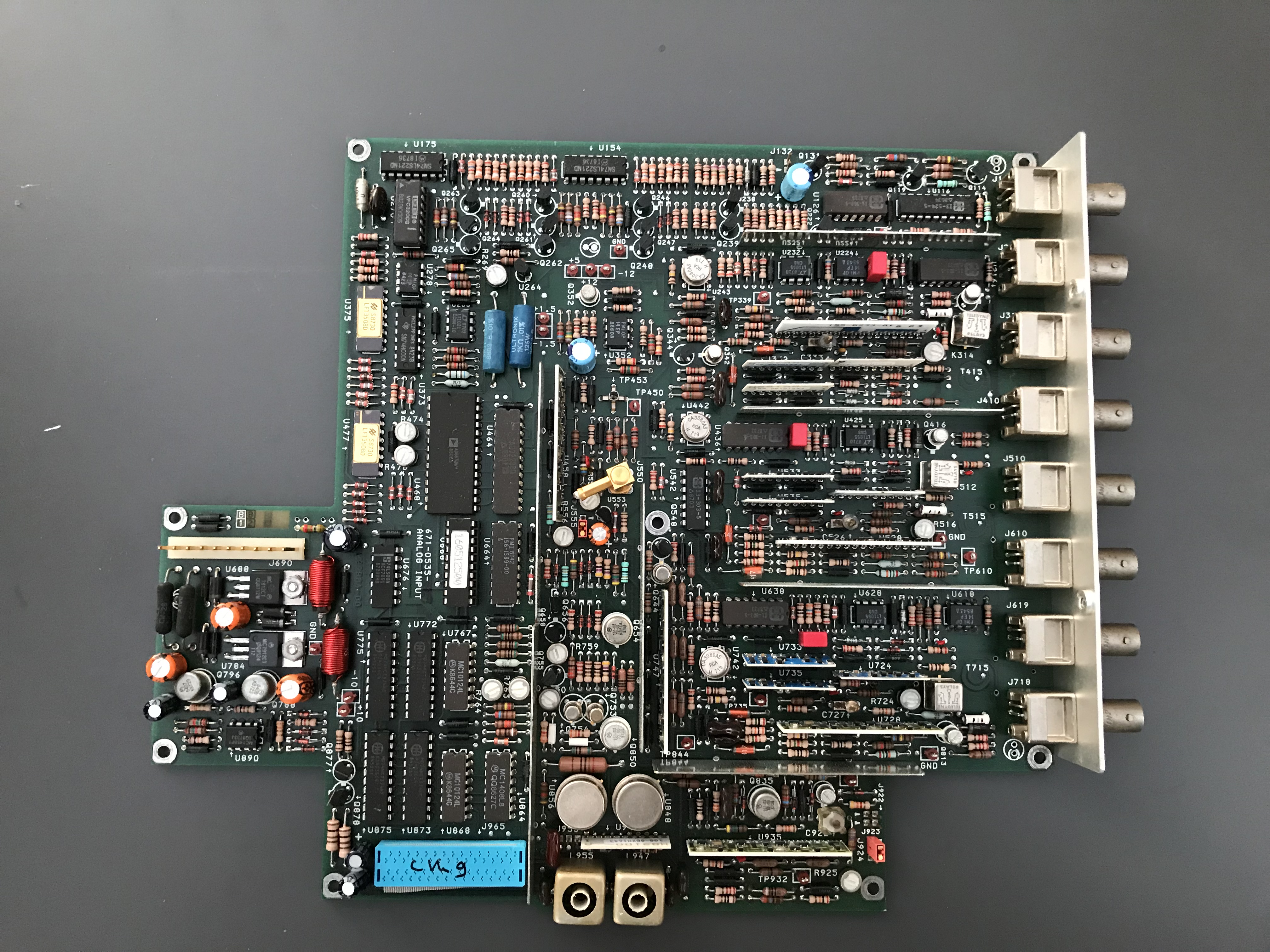

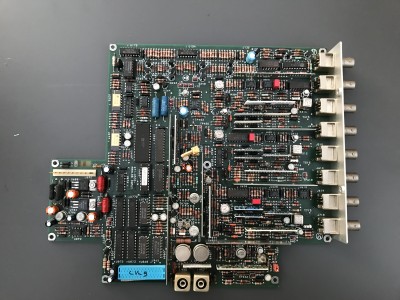

Maybe these pictures will help :) these are a few examples of gold cap chip boards.


You do not have the required permissions to view the files attached to this post.

Top
 Profile
Reply with quote
lostinlodos
 Post subject: Re: help to identify
PostPosted: Sat Feb 29, 2020 1:22 am
Site Admin
User avatar

Joined: Tue Feb 03, 2015 6:57 pm
Posts: 10225
Location: Low DOS

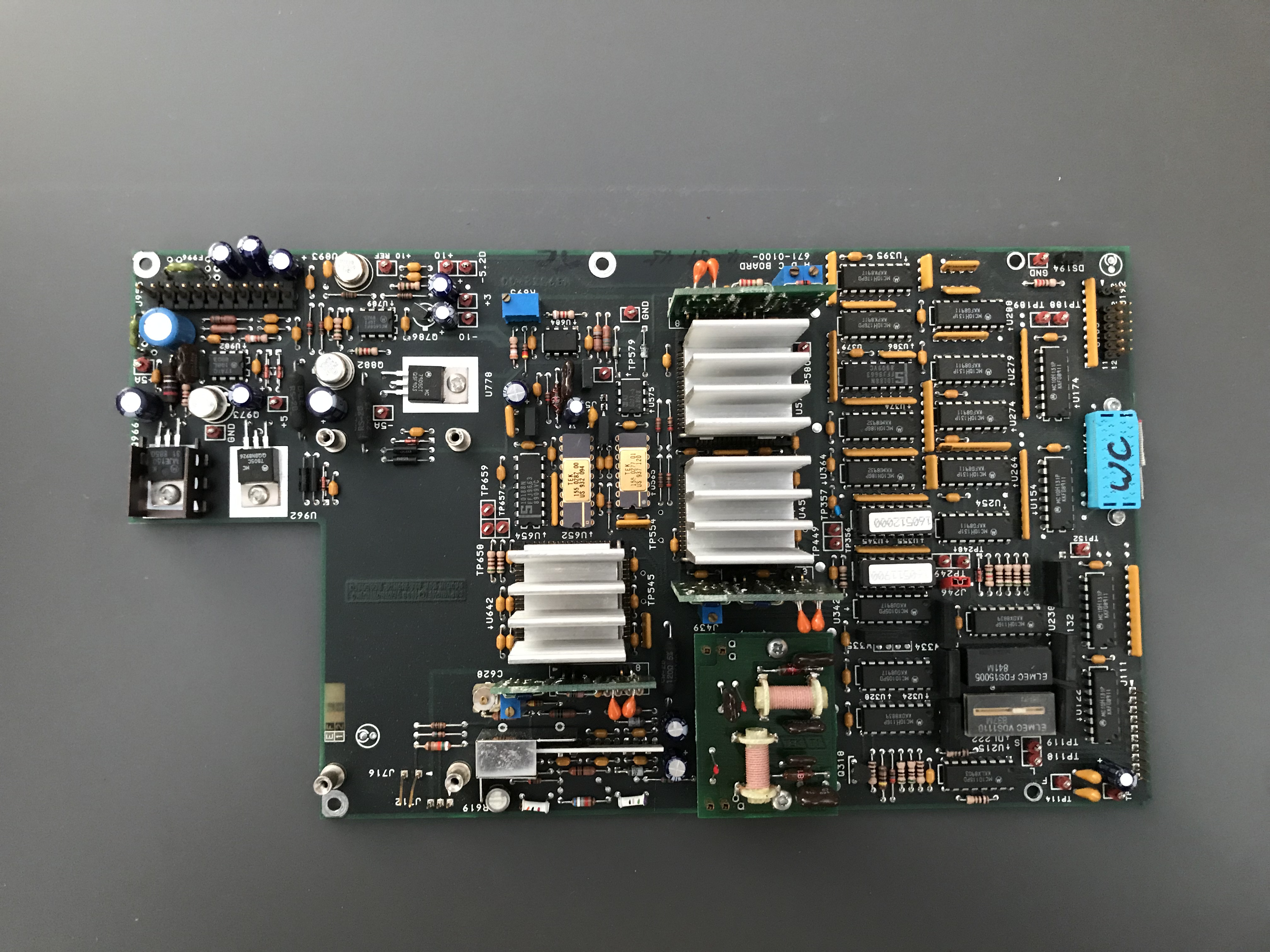

That last one needs heat sinks removed. ;)

_________________
42 6F 61 72 64 73 6F 72 74 2E 63 6F 6D
Top
 Profile
Reply with quote
rdw1121
 Post subject: Re: help to identify
PostPosted: Sat Feb 29, 2020 9:04 am

Joined: Fri Jul 01, 2016 6:55 pm
Posts: 750
Location: Texas
lostinlodos wrote:
That last one needs heat sinks removed. ;)


I know, I know......lol actually they already are.
Top
 Profile
Reply with quote
opossum
 Post subject: Re: help to identify
PostPosted: Sun Mar 01, 2020 6:05 am

Joined: Thu Jan 28, 2016 8:57 pm
Posts: 10
How about these?


You do not have the required permissions to view the files attached to this post.
