Vectro Jason
 Post subject: CPU
PostPosted: Sun Apr 26, 2020 1:19 am
User avatar

Joined: Tue Mar 24, 2020 7:57 pm
Posts: 52

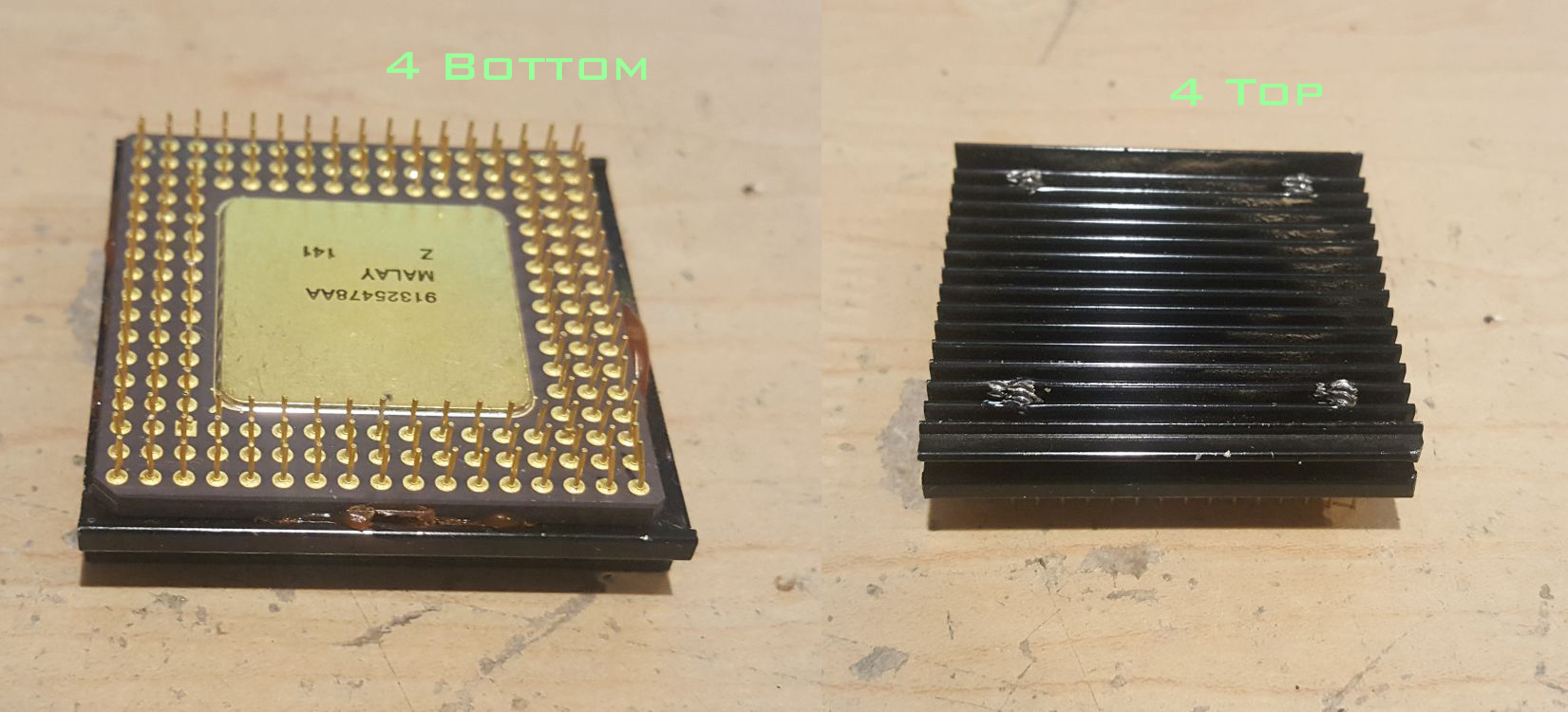

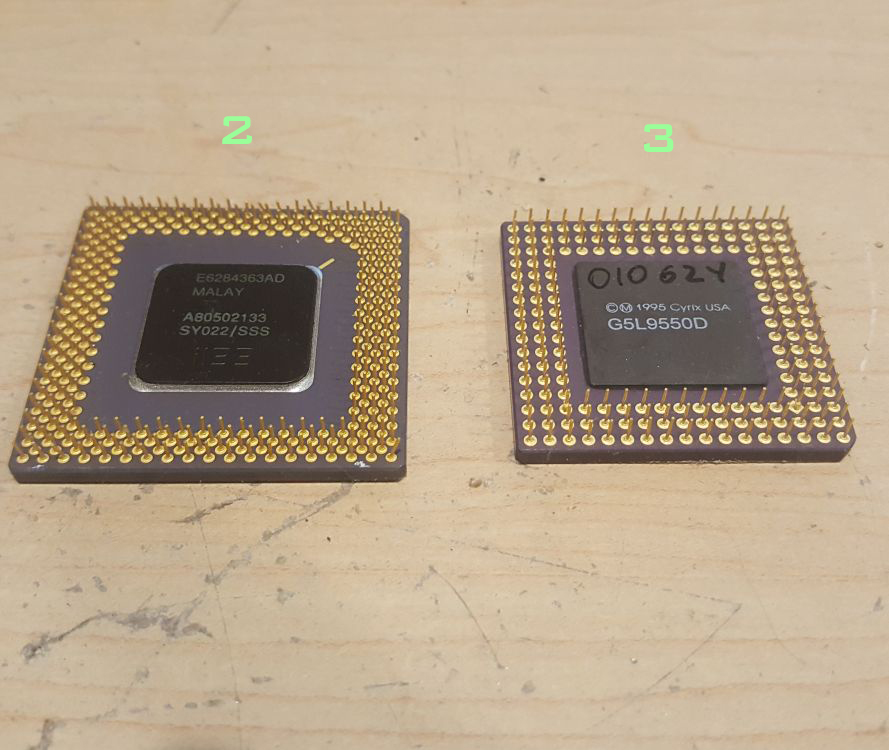

#4 has an issue. The heatsink won't come off. Whatever's holding it on doesn't look like any thermal compound I've seen. Guessing it's thermal adhesive. Any ideas how to get it off? Heat gun, maybe?


Attachments:
cpu-1.jpg [ 281.83 KiB | Viewed 4299 times ]
cpu-2.jpg [ 301.06 KiB | Viewed 4299 times ]
cpu-3.jpg [ 526.95 KiB | Viewed 4299 times ]
Top
 Profile

lostinlodos
 Post subject: Re: CPU
PostPosted: Sun Apr 26, 2020 2:50 pm
Site Admin
User avatar

Joined: Tue Feb 03, 2015 6:57 pm
Posts: 10064
Location: Low DOS
1)pentium/Mac ceramic
Gently peal the wire board off and put it in peripheral

2)I believe that will go AMD ceramic
3)Pentium Mac ceramic

4)AMD aluminium cap as is. Chris says boil them. Takes a bit but does work.
I use a heat gun. Not as safe for the chips but much faster.
I found 300-400• at about 6-12 inches away works for these. Pins up. Hold or mount the gun towards a SIDE at a 45• grade above it. About a minute or so you should be able to slide a small screwdriver into the space and pull the putty loose. Repeat three more times.
Without heatsink it’s pentium Mac ceramic so worth the effort

_________________
42 6F 61 72 64 73 6F 72 74 2E 63 6F 6D
Top
 Profile

Vectro Jason
 Post subject: Re: CPU
PostPosted: Sun Apr 26, 2020 8:59 pm
User avatar

Joined: Tue Mar 24, 2020 7:57 pm
Posts: 52
lostinlodos wrote:
Without heatsink it’s pentium Mac ceramic so worth the effort

It's not 386/486 Gold Cap? It looks like the picture for that on the payout page.

http://boardsort.com/images/codes/3014.jpg
Top
 Profile

Vectro Jason
 Post subject: Re: CPU
PostPosted: Sun Apr 26, 2020 9:09 pm
User avatar

Joined: Tue Mar 24, 2020 7:57 pm
Posts: 52

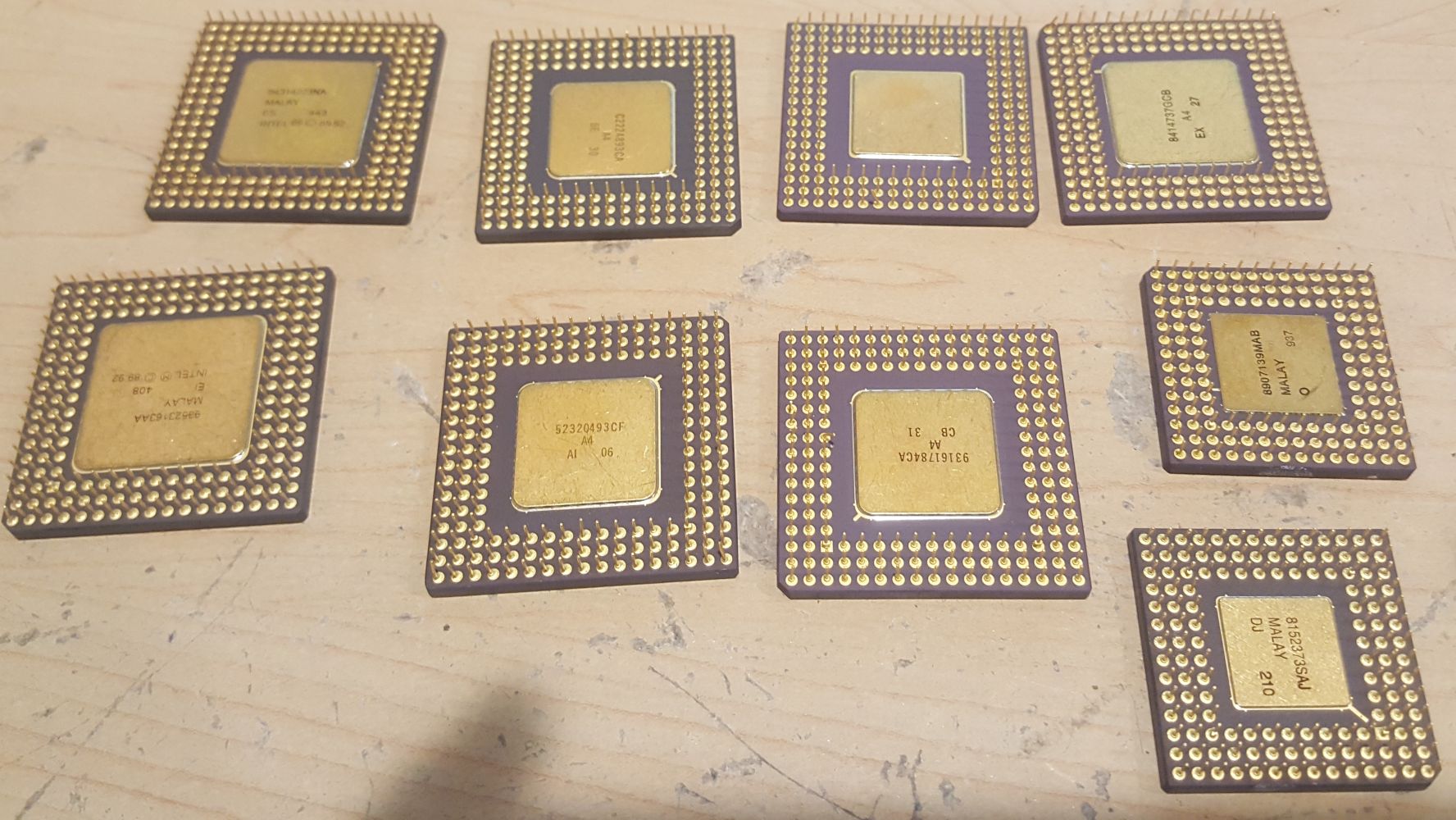

While we're on the subject, what are these?


Attachments:
20200426_210508.jpg [ 296.79 KiB | Viewed 4273 times ]
Top
 Profile

lostinlodos
 Post subject: Re: CPU
PostPosted: Mon Apr 27, 2020 12:25 am
Site Admin
User avatar

Joined: Tue Feb 03, 2015 6:57 pm
Posts: 10064
Location: Low DOS
I have no way of telling with the heatsink attached what it is beyond being a gold cap cpu

_________________
42 6F 61 72 64 73 6F 72 74 2E 63 6F 6D
Top
 Profile

lostinlodos
 Post subject: Re: CPU
PostPosted: Mon Apr 27, 2020 12:26 am
Site Admin
User avatar

Joined: Tue Feb 03, 2015 6:57 pm
Posts: 10064
Location: Low DOS
Looks like a mix of foreign (original pentiums) gold caps and 386. The other side is vital for id

_________________
42 6F 61 72 64 73 6F 72 74 2E 63 6F 6D
Top
 Profile

Vectro Jason
 Post subject: Re: CPU
PostPosted: Mon Apr 27, 2020 9:06 pm
User avatar

Joined: Tue Mar 24, 2020 7:57 pm
Posts: 52

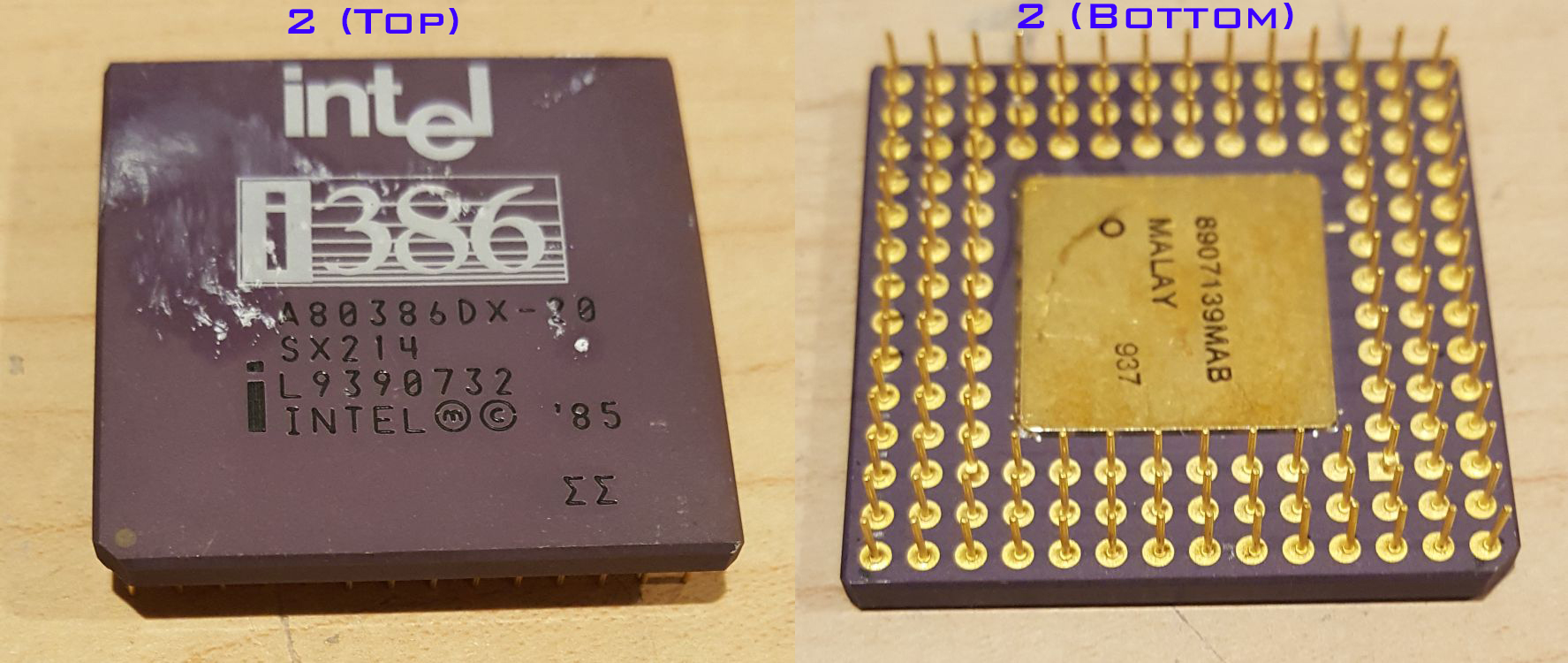

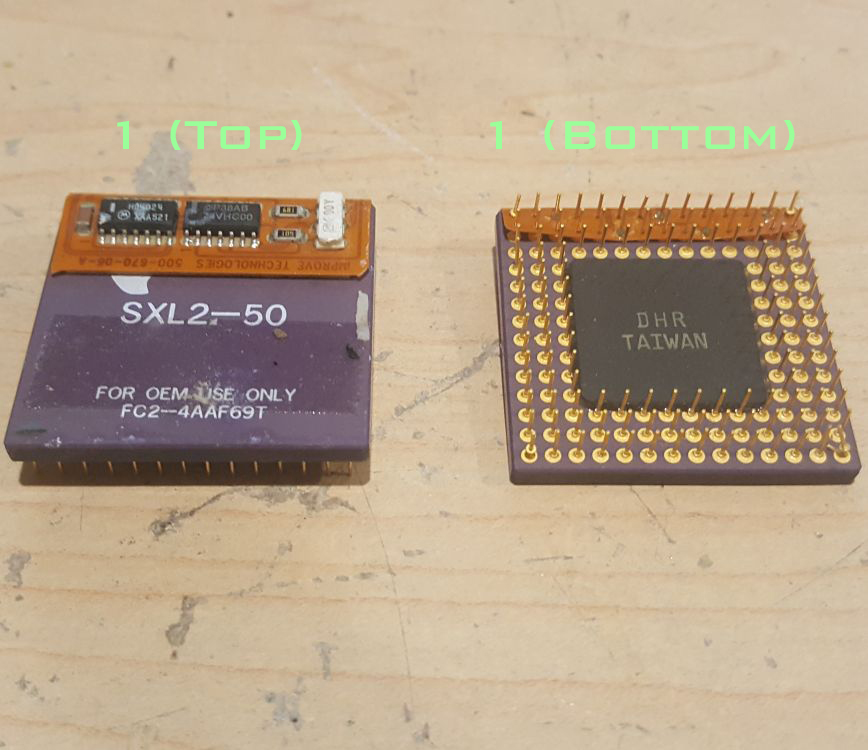

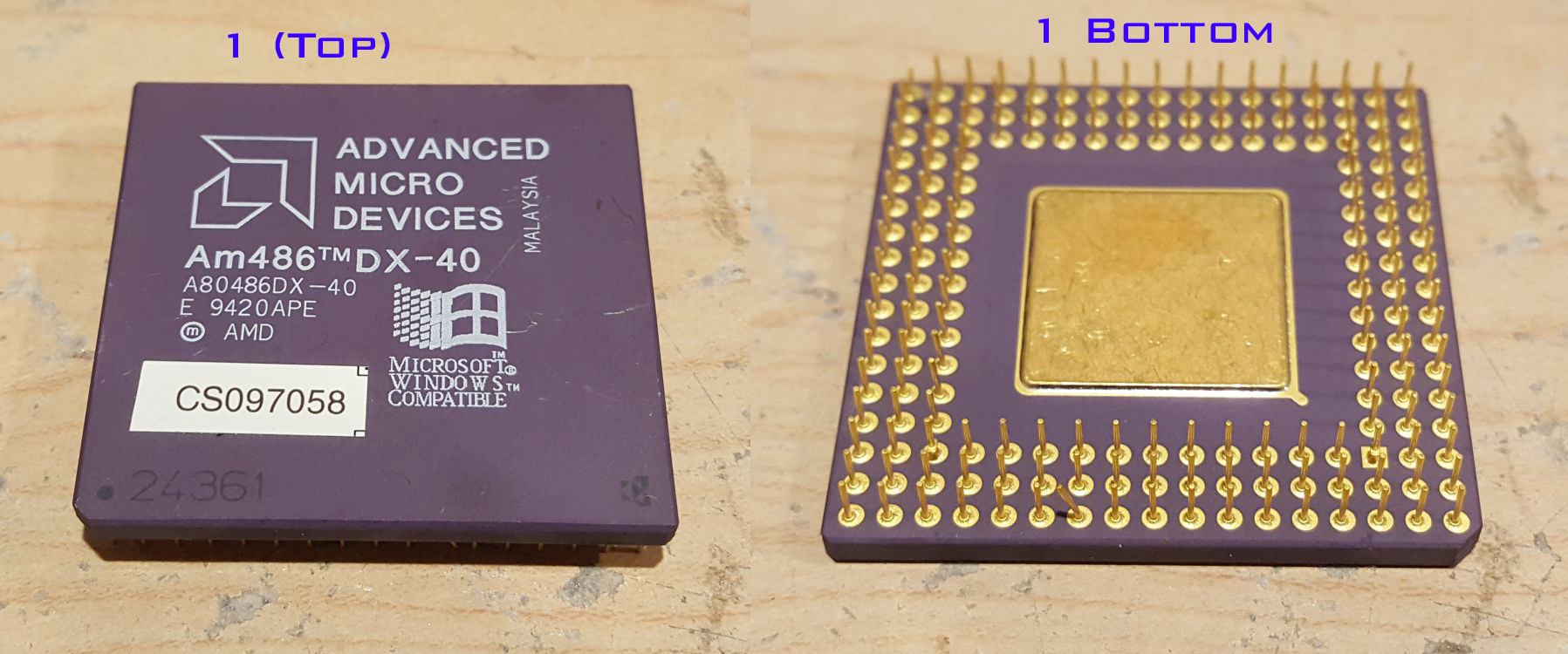

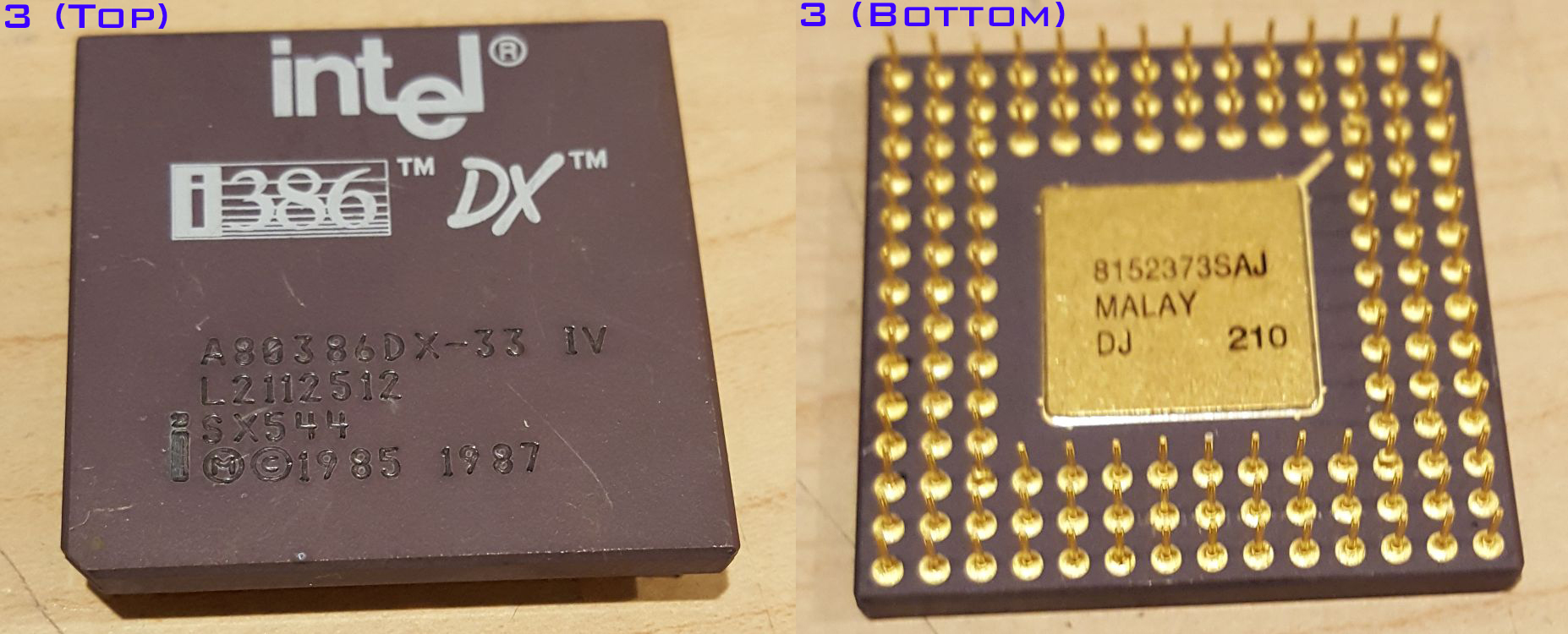

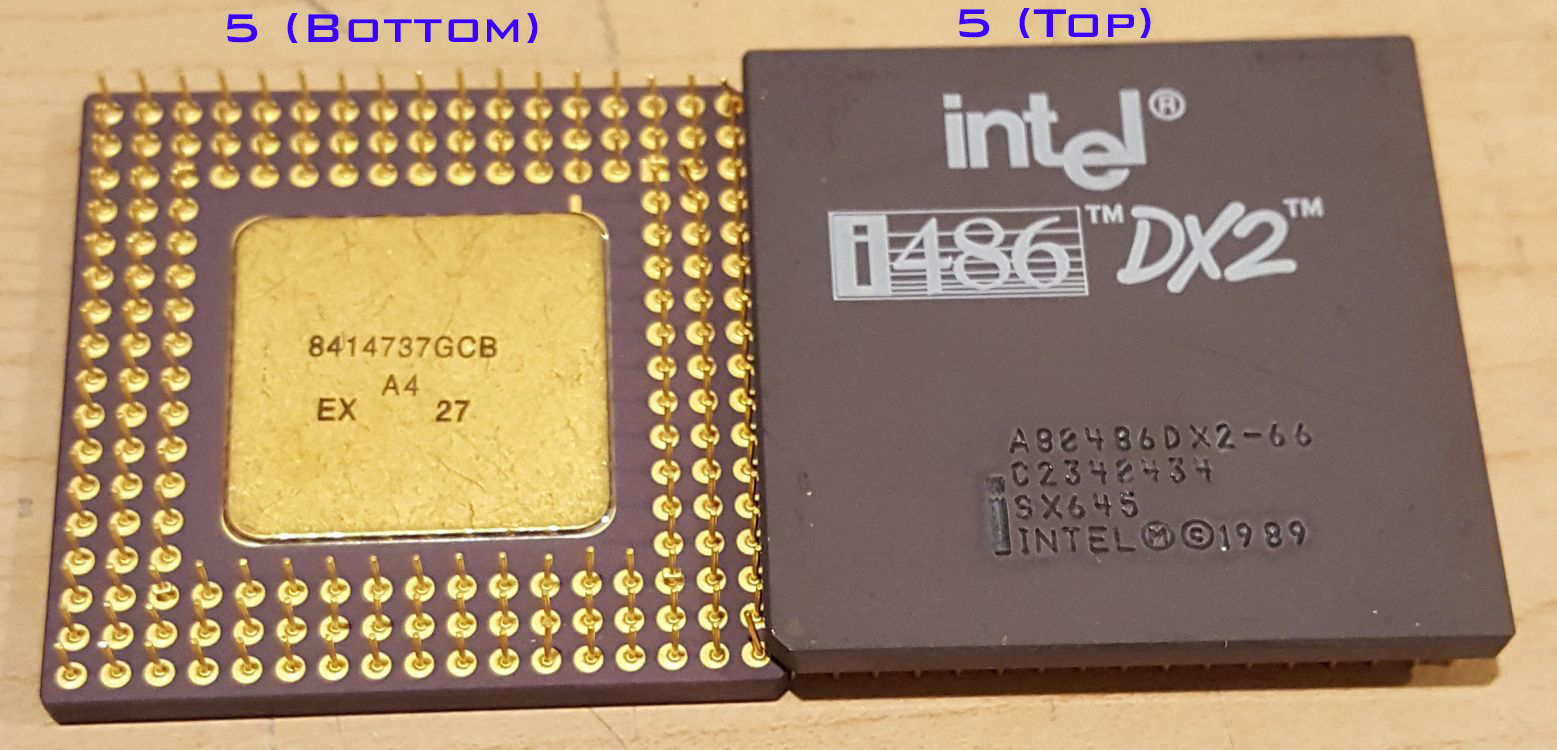

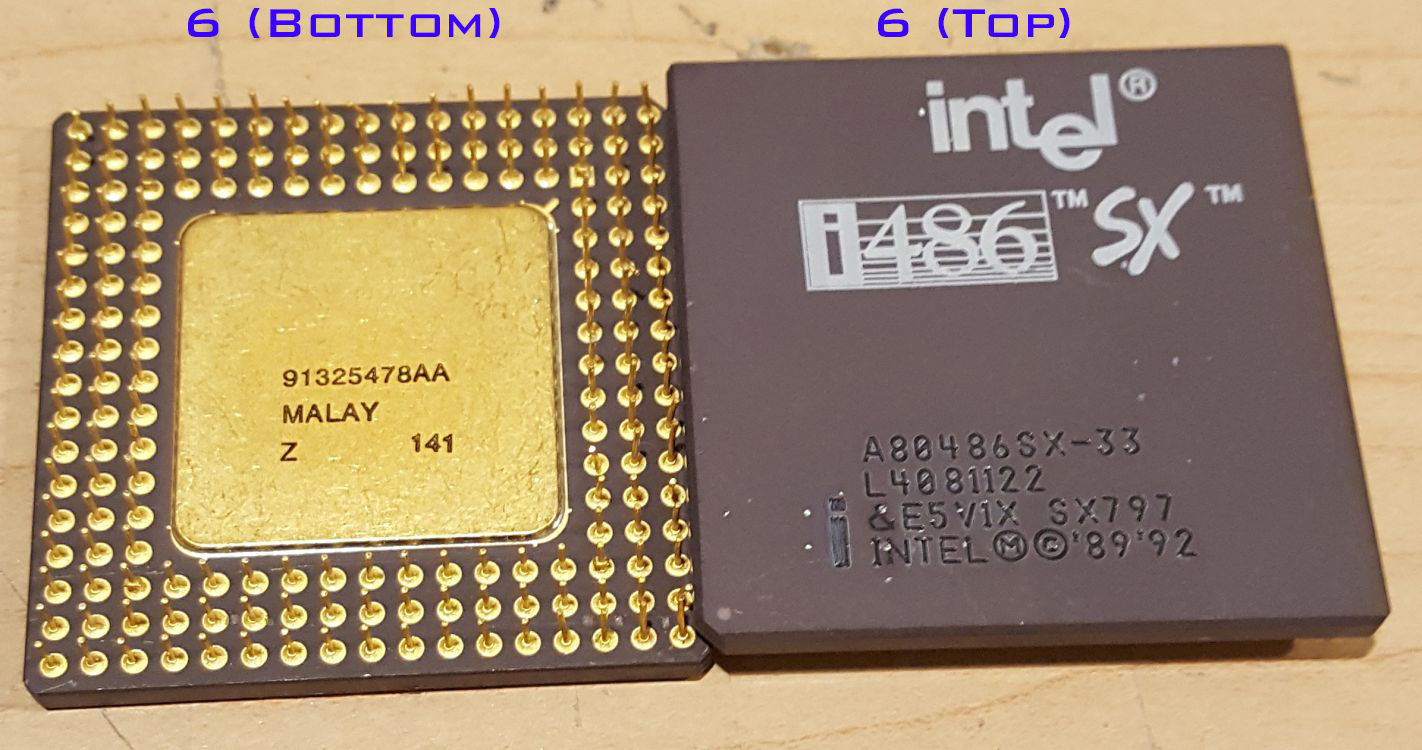

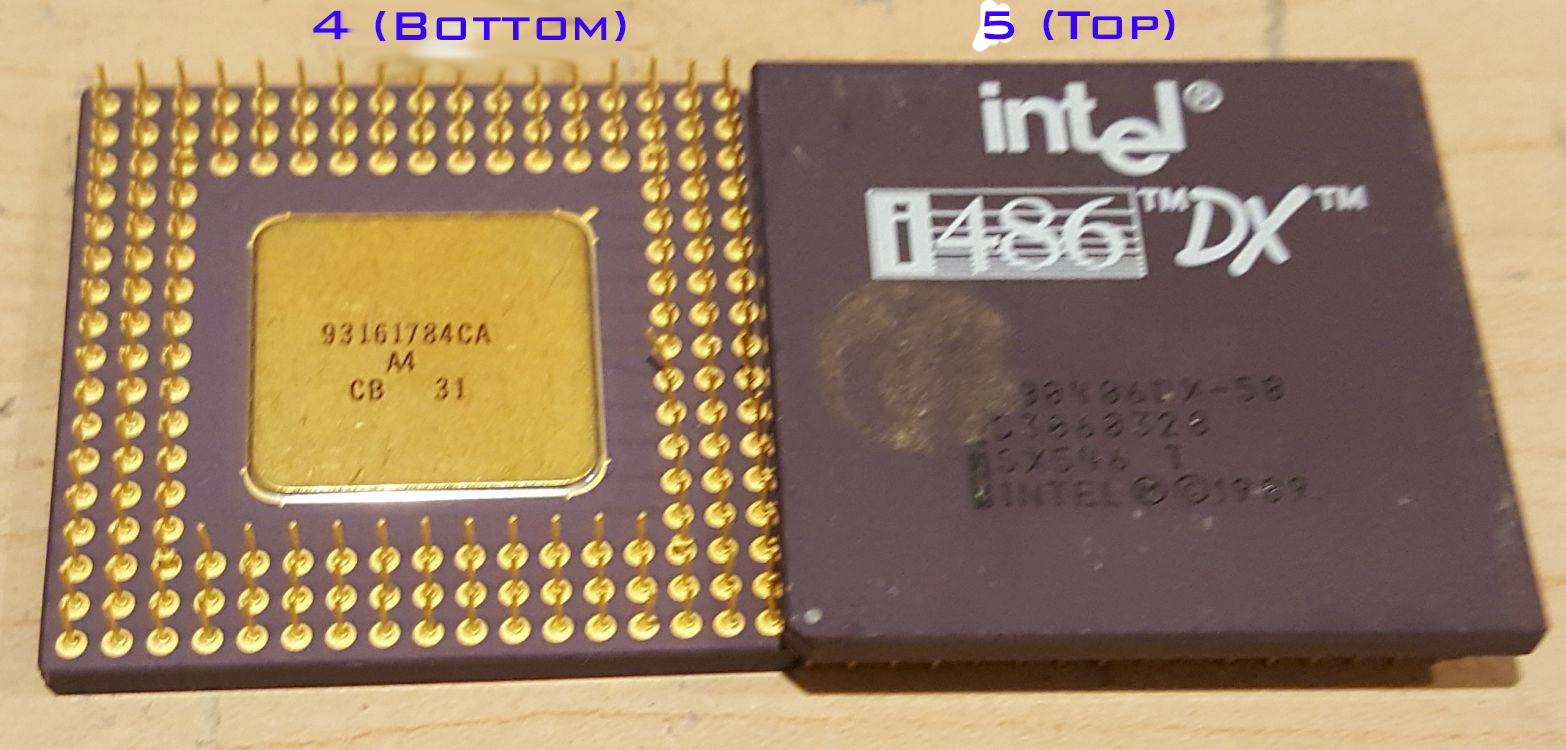

I got the heatsink off and I took front and back pictures. I mistakenly assumed the side with all the gold was all I needed to show.


Attachments:
1.jpg [ 665.07 KiB | Viewed 4229 times ]
2.jpg [ 622.21 KiB | Viewed 4229 times ]
3.jpg [ 635.68 KiB | Viewed 4229 times ]
4.jpg [ 502.35 KiB | Viewed 4229 times ]

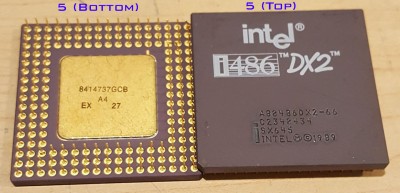

5.jpg [ 511.15 KiB | Viewed 4229 times ]
6.jpg [ 501.63 KiB | Viewed 4229 times ]
Top
 Profile

lostinlodos
 Post subject: Re: CPU
PostPosted: Tue Apr 28, 2020 12:40 am
Site Admin
User avatar

Joined: Tue Feb 03, 2015 6:57 pm
Posts: 10064
Location: Low DOS
There you go! 386/486 across all of em

_________________
42 6F 61 72 64 73 6F 72 74 2E 63 6F 6D
