Got through most of my piles and found some boards I had set aside because I wasn't sure if they really fit neatly into a category.

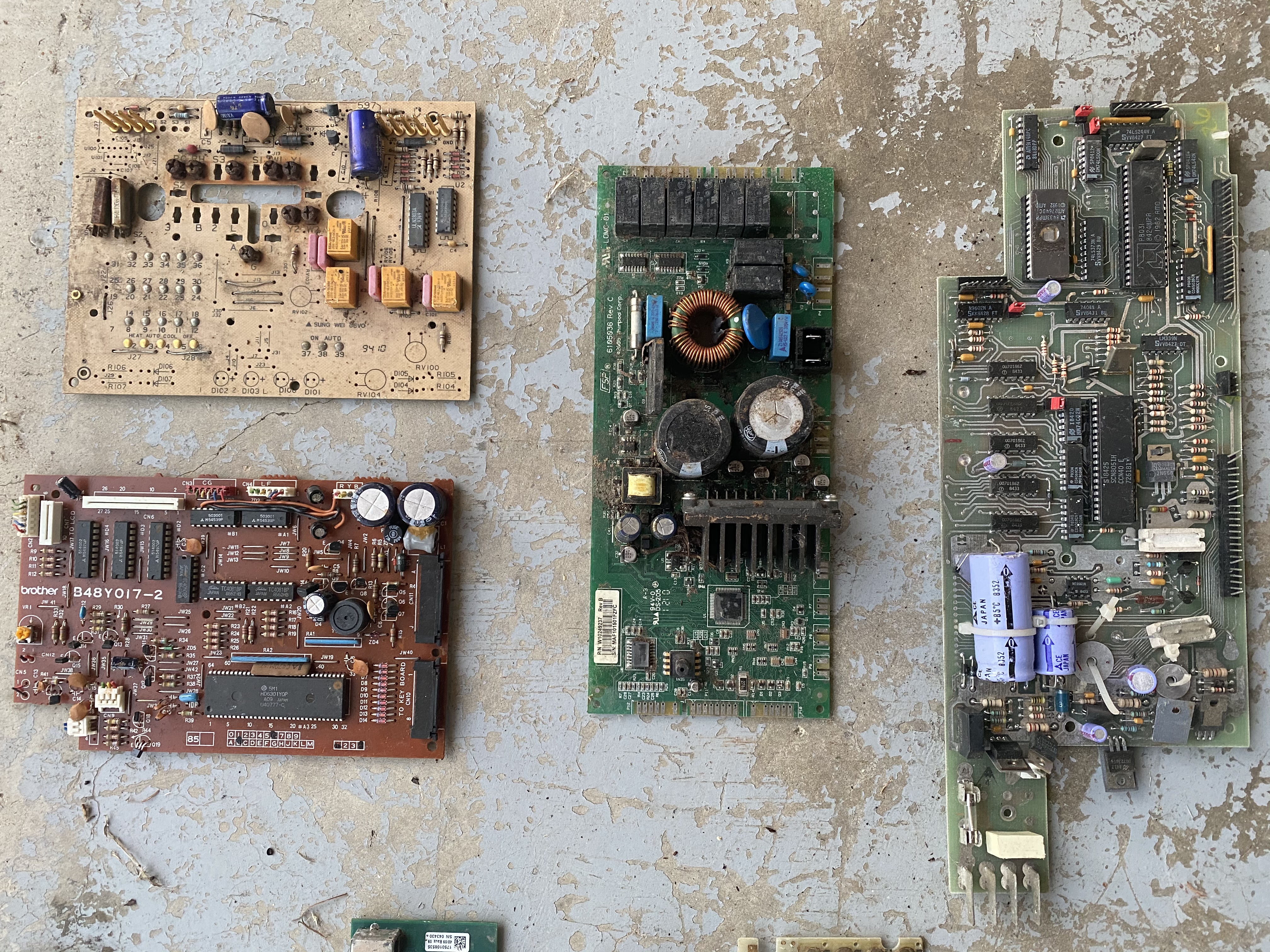

Left bottom, brown board has a good IC population. Left top, the gold pins and contacts and a couple ICs. Middle board I didn't think much of but there are silver teeth on three sides. Right board IC population.
Attachment:
File comment: Fronts
IMG_9778.jpg [ 4.3 MiB | Viewed 2064 times ]
Attachment:

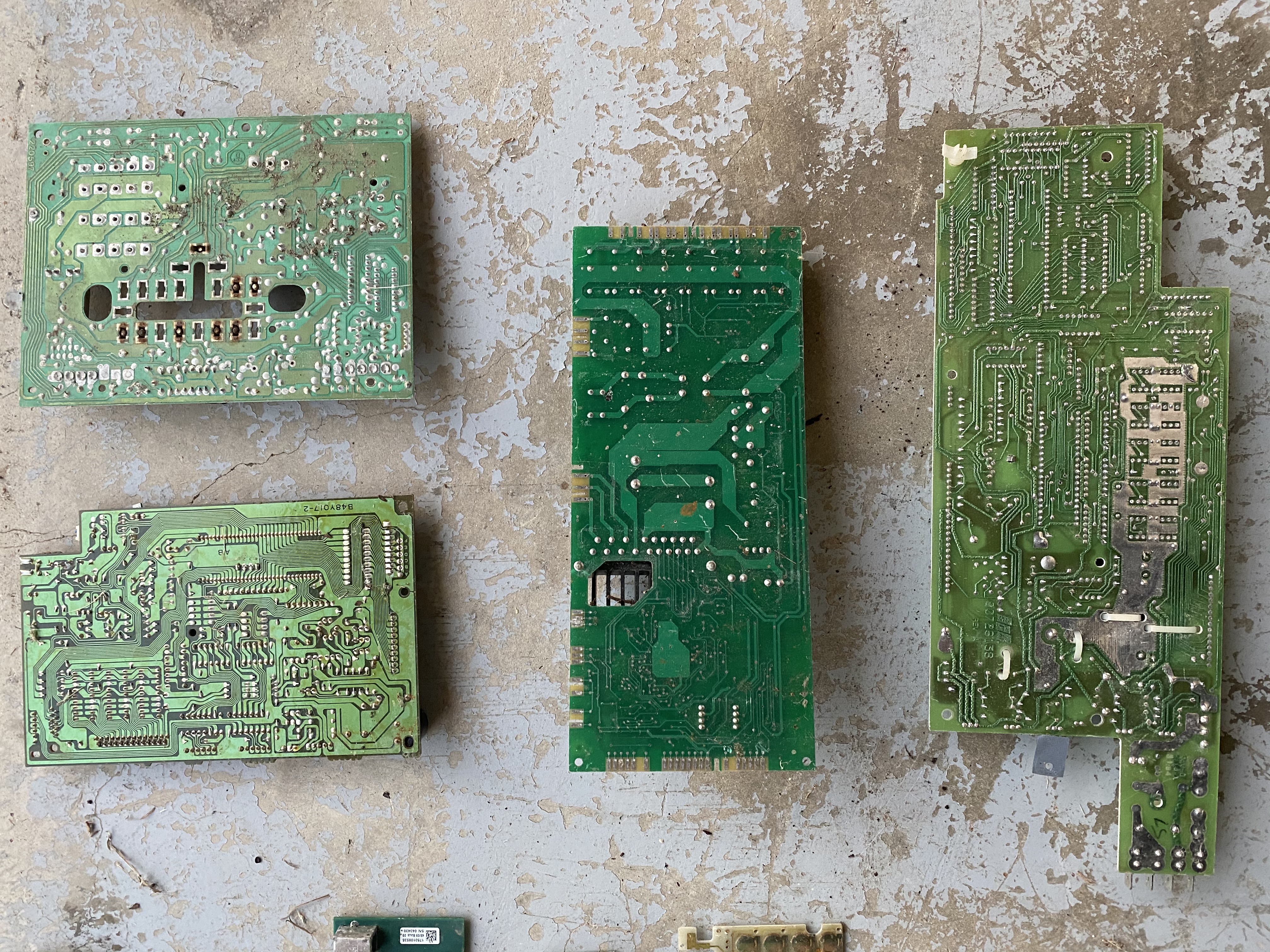

File comment: Backs
IMG_9779.jpg [ 4.28 MiB | Viewed 2064 times ]
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

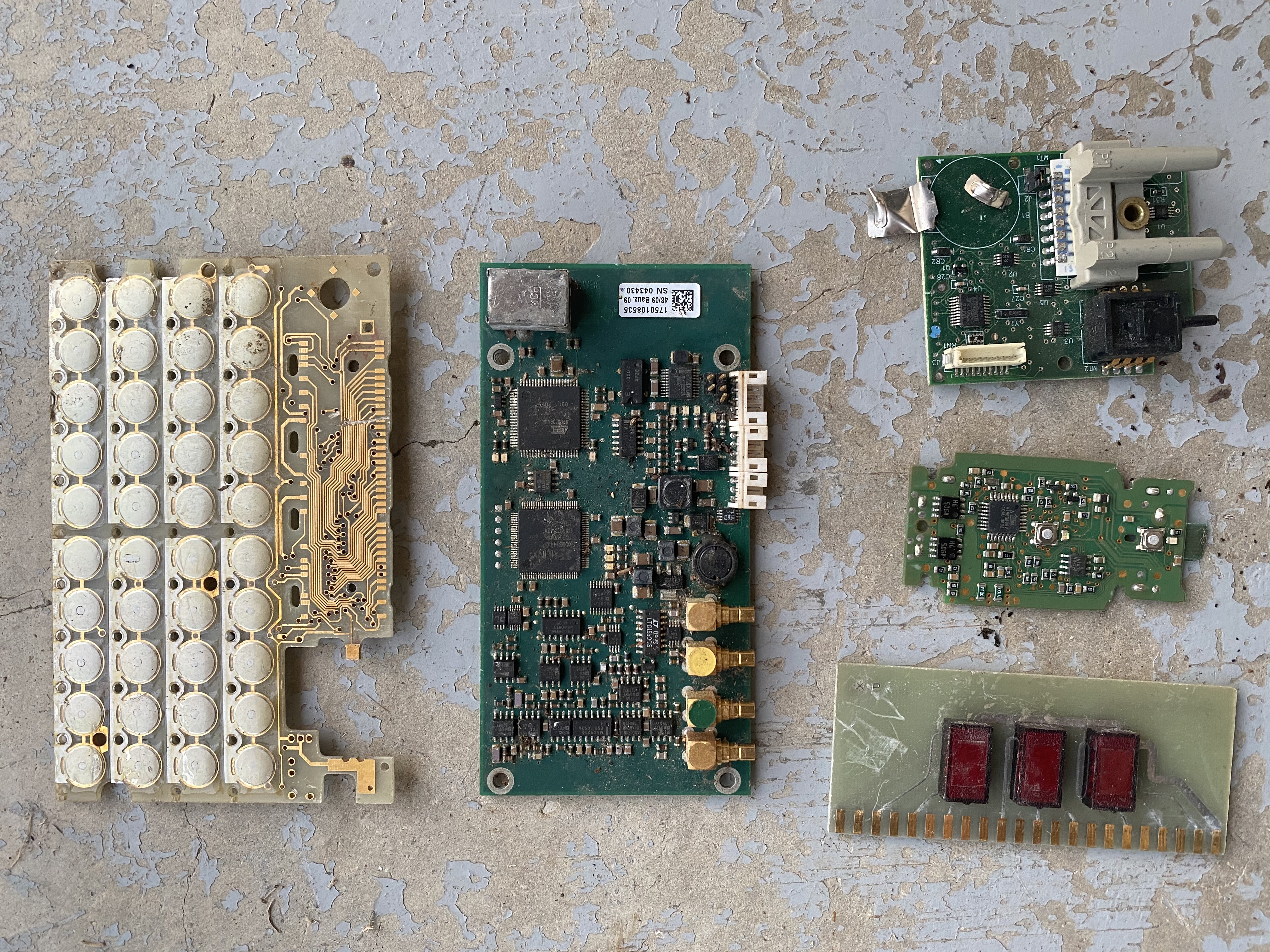

Left, gold??? Middle, peripheral? Right bottom, gold teeth but basically blank board otherwise... Right middle, peripheral? Right top, was really just curious about the black component with the gold legs.
Attachment:
File comment: 5Fronts
IMG_9780.jpg [ 4.17 MiB | Viewed 2064 times ]
Attachment:

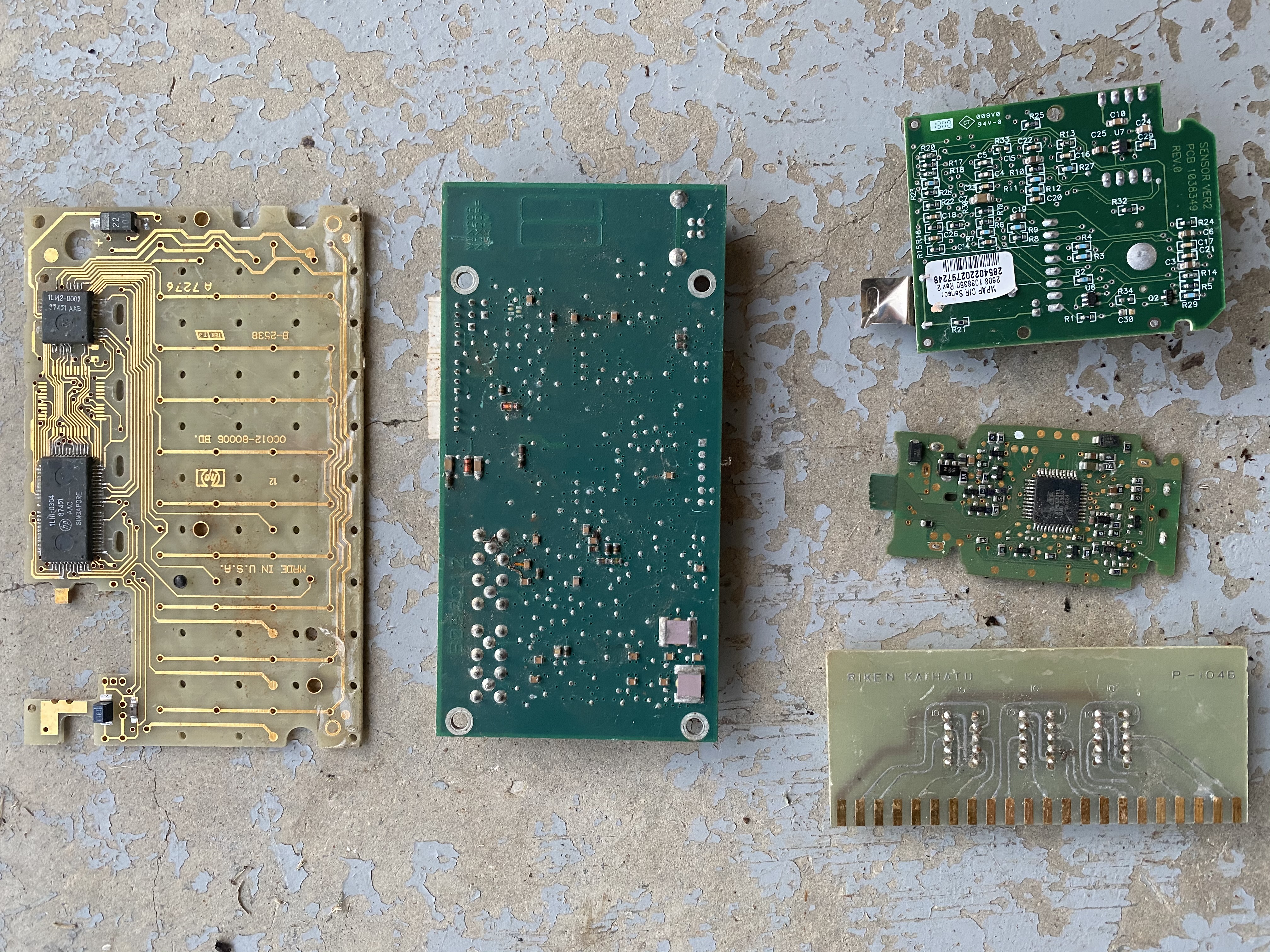

File comment: 5Backs
IMG_9781.jpg [ 3.9 MiB | Viewed 2064 times ]
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

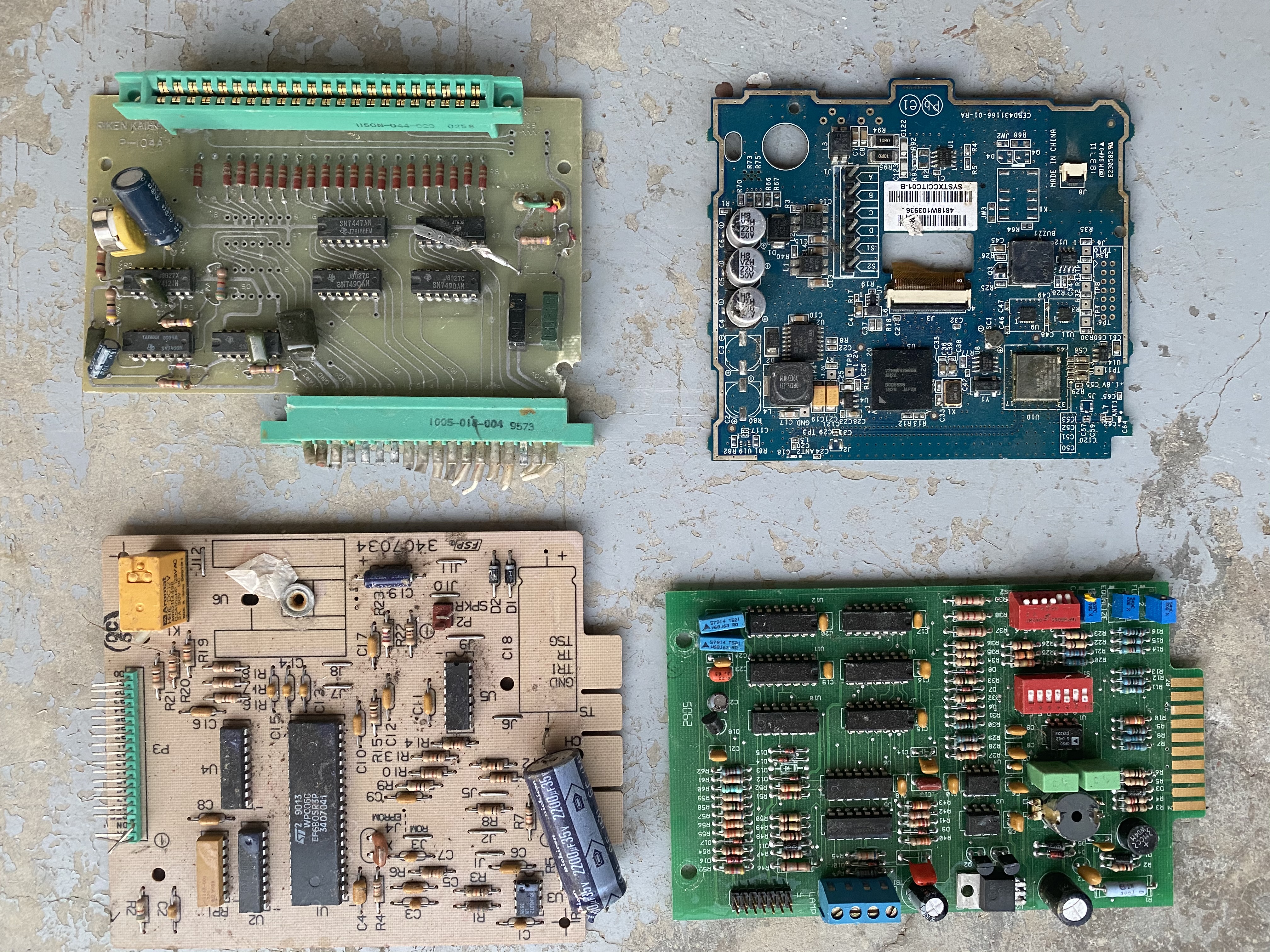

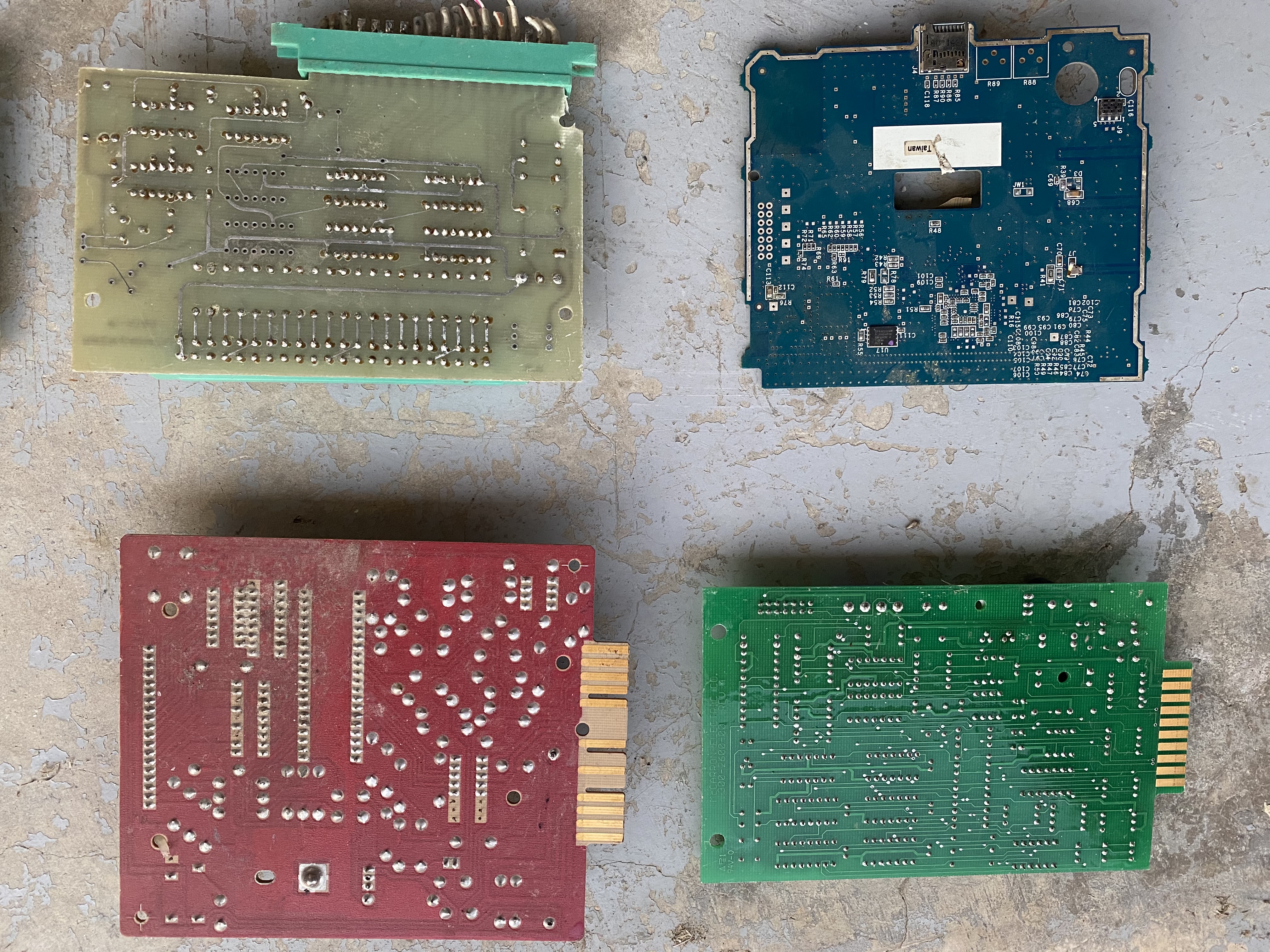

Left bottom, the ICs, gold teeth, red/brown color? Left top, ICs and gold pins/teeth. Right bottom, thought low telco but maybe too much extraneous weight? Right top, a little damaged but I think from a smart thermostat?
Attachment:
IMG_9782.jpg [ 3.87 MiB | Viewed 2064 times ]
Attachment:
IMG_9783.jpg [ 3.65 MiB | Viewed 2064 times ]
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

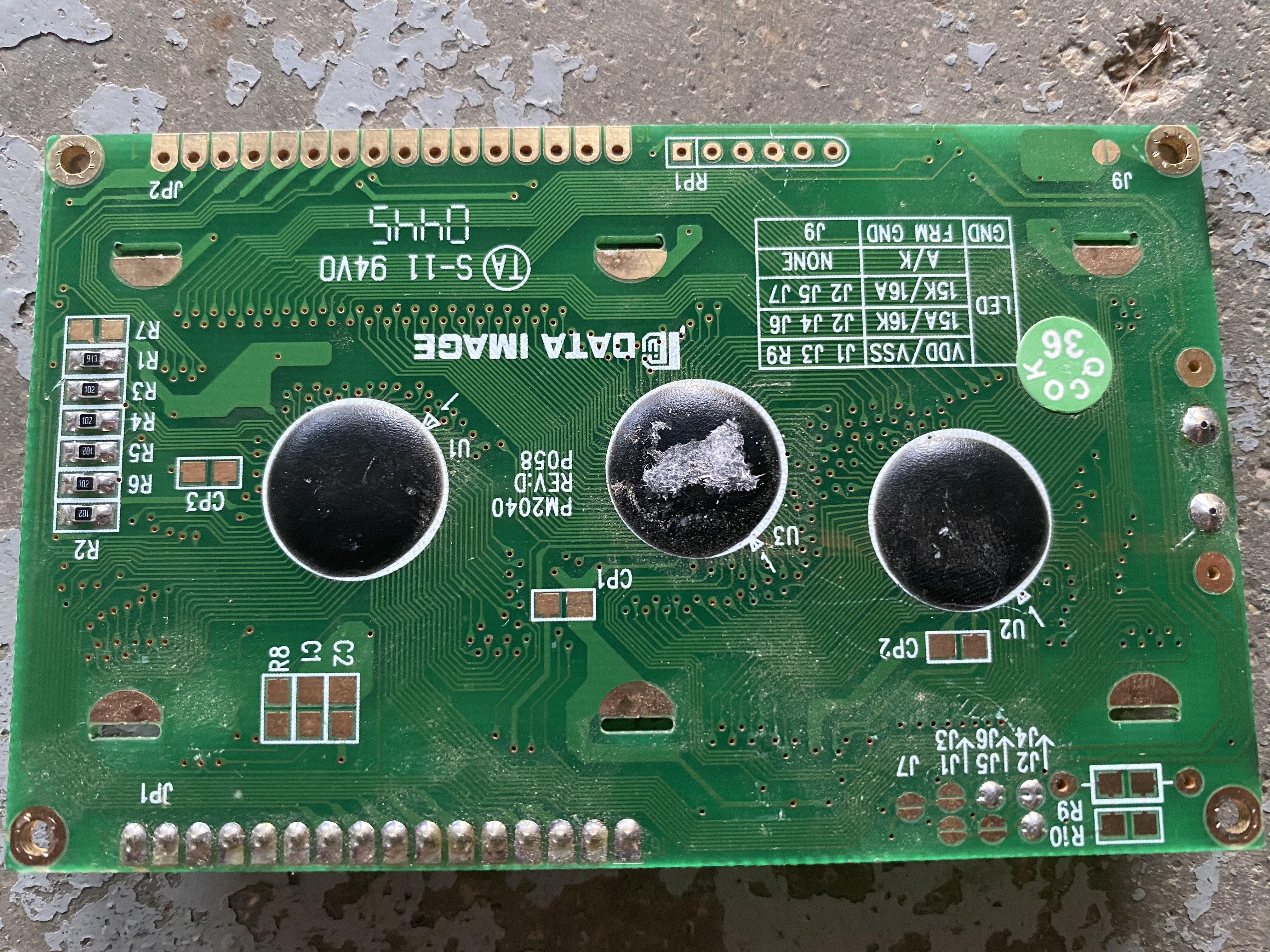

Another curiosity question. The black circle are?
Attachment:
File comment: Circles
IMG_9784.jpg [ 3.29 MiB | Viewed 2064 times ]
