 Post subject: Various grades of boards
PostPosted: Wed Apr 29, 2020 10:40 am

Joined: Thu Mar 26, 2020 10:18 pm
Posts: 17
Hello, I'm posting photos of the various boards I have. I tried to separate them into the categories that seemed most intuitive to me. I grouped together all the boards that had gold fingers on them, others by presence of IC chips, and others simply by size, and so on. Any help would be greatly appreciated, I have hundreds of pounds of boards to sort through, but am too new to identify them all properly.


Attachments:

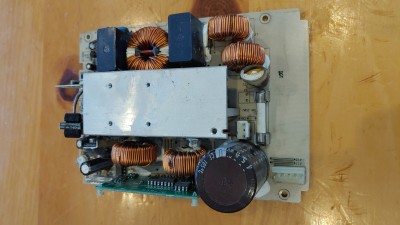

File comment: I plan to depopulate the aluminum, and remove the wires. Should I depopulate any further than that? There are mini boards attached vertically also. Either way, what grade would these fall under?
20200429_102020.jpg [ 1.51 MiB | Viewed 4470 times ]

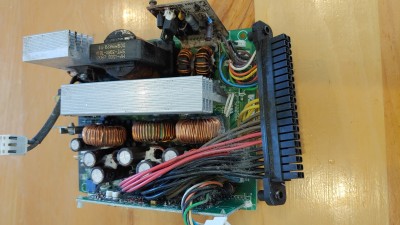

File comment: I plan to depopulate the aluminum, and remove the wires. Should I depopulate any further than that? There are mini boards attached vertically also. Either way, what grade would these fall under?
20200429_102015.jpg [ 1.77 MiB | Viewed 4470 times ]

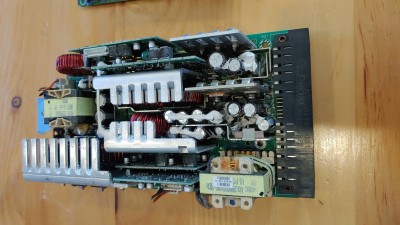

File comment: I plan to depopulate the aluminum, and remove the wires. Should I depopulate any further than that? There are mini boards attached vertically also. Either way, what grade would these fall under?
20200429_101951.jpg [ 1.77 MiB | Viewed 4470 times ]

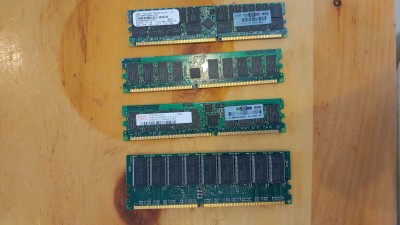

File comment: Didn't know if the varying sizes affected these from all being graded as gold finger RAM?
20200429_102243.jpg [ 1.76 MiB | Viewed 4470 times ]

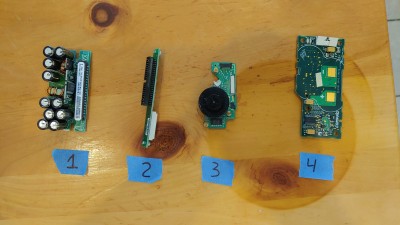

File comment: Various small boards.
20200429_102135.jpg [ 1.62 MiB | Viewed 4470 times ]

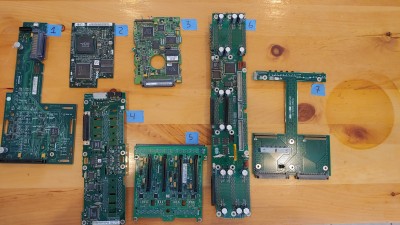

File comment: Various boards.
20200429_101828.jpg [ 2.09 MiB | Viewed 4470 times ]

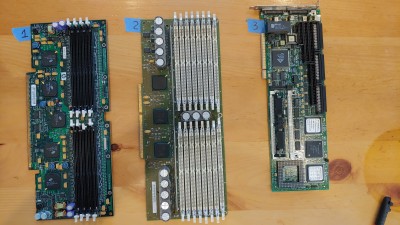

File comment: Various larger boards with gold fingers.
20200429_101556.jpg [ 2.26 MiB | Viewed 4470 times ]

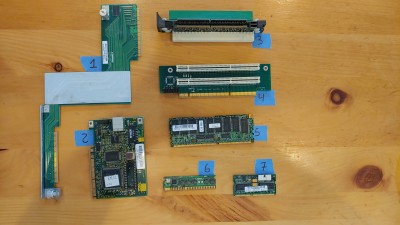

File comment: Various boards with gold fingers.
20200429_101434.jpg [ 1.69 MiB | Viewed 4472 times ]
Top
 Profile

PostPosted: Wed Apr 29, 2020 3:42 pm
Site Admin
User avatar

Joined: Tue Feb 03, 2015 6:57 pm
Posts: 10041
Location: Low DOS
Low grade

Midgrade

Midgrade

All gold ram

1) mid grade
2) peripheral
3) peripheral if PCB, low grade if steel backed.
4) midgrade

1)peripheral
2)Cd/dvd
3)hard drive
4)peripheral
5)Backplane
6)based on adding back side I know is there is backplane
7)peripheral

1)high telco
2)low telco
3)low telco Remove Dallas box

1) peripheral, barely
2)gold finger card
3)Backplane
4)backplane
5)Gold finger ram
6)Peripheral (blank/filler)
7)gold finger ram

_________________
42 6F 61 72 64 73 6F 72 74 2E 63 6F 6D


Top
 Profile

PostPosted: Thu Apr 30, 2020 2:20 pm

Joined: Thu Mar 26, 2020 10:18 pm
Posts: 17
Thank you so much for the help. Do the backplane boards refer to the "backplane expansion boards" on the payout list? I almost feel embarrassed asking that, it seems obvious, but I want to be as accurate as possible, seeing as I am new to the electronic aspect of scrapping, and will be shipping from out of state. Also, in your second paragraph, number 6, does that mean you need a photo of the backside of that particular board to make a proper identification?


Top
 Profile

PostPosted: Thu Apr 30, 2020 2:59 pm
Site Admin
User avatar

Joined: Tue Feb 03, 2015 6:57 pm
Posts: 10041
Location: Low DOS
Yes backplane/backplane expansion

No need for the other side. I know the board.

_________________
42 6F 61 72 64 73 6F 72 74 2E 63 6F 6D


Top
 Profile

PostPosted: Thu Apr 30, 2020 3:54 pm

Joined: Thu Mar 26, 2020 10:18 pm
Posts: 17
So, just to clarify, the second paragraph, number 6, is a backplane board? I think auto correct butchered your grammar there.


Top
 Profile

PostPosted: Thu Apr 30, 2020 4:04 pm
Site Admin
User avatar

Joined: Tue Feb 03, 2015 6:57 pm
Posts: 10041
Location: Low DOS
Yes

_________________
42 6F 61 72 64 73 6F 72 74 2E 63 6F 6D


Top
 Profile

PostPosted: Thu Apr 30, 2020 4:14 pm

Joined: Thu Mar 26, 2020 10:18 pm
Posts: 17
Great. Thank you for all of your help.
