So I have an array of boards from various places that have been ripped apart over the last year. It'll cost me about 50 cents a pound to ship these in, so economically makes no sense to deal with anything here that isn't peripheral or better it seems.

For that, the board is going to need to be green on both sides at the least, yes?

Any brown board such as comes out of a power supply, CRT monitor, VCR, etc would be low grade, yes? I dump it off for a couple pennies at the local yard.

I've removed the batteries I know about in all the attached pictures, but browsing through the forums I see comments about batteries in pictures that I don't even see. If you spot one let me know.

I've attached pictures for any further questions:

Basic question is if anything in those pictures look like peripheral or better?

Gonna have to get this stuff out of my shop, I have a bed I need to get started on soon. Thanks.

I’ll be back. Try to do this today for you. Yes lots better than peripheral

_________________
42 6F 61 72 64 73 6F 72 74 2E 63 6F 6D

Just checking in. Anybody able to help me out on those?

20180911_210353.jpg [ 2.82 MiB | Viewed 96 times ]
large if the contacts are copper or gold, peripheral; other 3 peripheral

20180911_210305.jpg [ 2.63 MiB | Viewed 96 times ]
top don't know, flip it over, midgrade gold finger card, low grade

20180911_210113.jpg [ 3.63 MiB | Viewed 96 times ]
the two network boards are peripheral, please pop the shields and heatsink off. The lower one MAY have a battery box on it. rest are midgrade.

20180911_205729.jpg [ 2.57 MiB | Viewed 96 times ]
left top low grade
left bottom peripheral
right top peripheral
right middle up midgrade
right middle down peripheral
right bottom, depends on back, flip it
centre low grade

20180911_205658.jpg [ 2.86 MiB | Viewed 96 times ]
left
peripheral
peripheral
peripheral/midgrade
midgrade
right
telco
telco

20180911_205618.jpg [ 2.98 MiB | Viewed 96 times ]
left (switch)
peripheral
centre
peripheral
low grade (remove the copper, yes)
peripheral
right
peripheral
low grade
peripheral

20180911_205549.jpg [ 3.57 MiB | Viewed 96 times ]
left midgrade
midgrade (nothing you can do so cut the pin section off for gold pin connector)
right peripheral

20180911_205044.jpg [ 2.63 MiB | Viewed 96 times ]
right telco
left top peripheral
left bottom. midgrade with the screen on, may be better depending on the back with the screen off

20180911_204935.jpg [ 2.67 MiB | Viewed 96 times ]
left peripheral
right midgrade
midgrade
silver/tin ram

20180911_192624.jpg [ 2.54 MiB | Viewed 96 times ]
left midgrade (barely)
right peripheral

20180911_192009.jpg [ 2.97 MiB | Viewed 96 times ]
these are really pushing the class premise but yes; gold finger card
top has limited ic but removing the copper spool and with the heavy gold port...
bottom has even less stuff but what it dose have is relatively decent.

20180911_191906.jpg [ 2.7 MiB | Viewed 96 times ]
telco (remove the screwed on bracket here and do NOT remove ICs)
midgrade, like the other one further up the list just cut the port off.

20180911_191848.jpg [ 2.71 MiB | Viewed 96 times ]
both peripheral. CAREFULLY remove the DALLAS box. it's a battery.

20180911_191805.jpg [ 2.85 MiB | Viewed 96 times ]
midgrade
peripheral

20180911_191751.jpg [ 3.12 MiB | Viewed 96 times ]
both peripheral

20180911_184439.jpg [ 2.39 MiB | Viewed 96 times ]
both peripheral. Do cut the wire as clean as you can to separate them

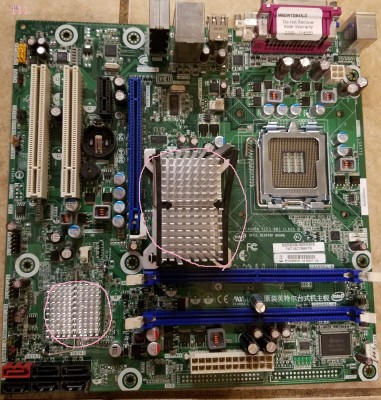

20180911_184423.jpg [ 2.9 MiB | Viewed 96 times ]

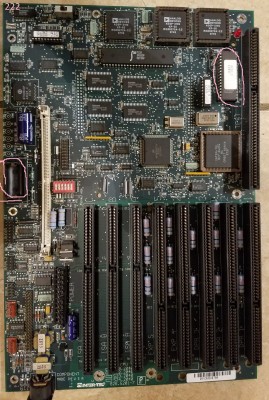

large socket, yes the circled IC and the three in the square sockets can be removed for IC rate.

metal socket. yes heatsinks need to be removed from the majority of items including this photo and video cards.

_________________
42 6F 61 72 64 73 6F 72 74 2E 63 6F 6D

Thanks for your help lostinlodos.

This has gotten me through most of the pile. Found a couple more questions. This stuff looks equivalent to what I'm understanding is peripheral, would you agree?

And not sure about these ITX boards. Are some of these peripheral (the ones with the CPU hard mounted) and some metal socket?

Thanks.

20180922_135804.jpg)
peripheral, just barely

20180922_135606.jpg)
peripheral peripheral
telco midgrade (unless lots of ICs on back
peripheral

20180922_135503.jpg)
peripheral/midgrade (unless gold pins or ICs on back)
peripheral/midgrade
peripheral/midgrade/(top to bottom gold pin connector peripheral)

20180922_133445.jpg)
all peripheral

20180922_132813.jpg)
peripheral peripheral peripheral
telco (barely)

20180922_132538.jpg)
both peripheral

20180922_132459.jpg)
peripheral and gold finger card, correct

20180922_132221.jpg)
top yes if you pull the big piece off and the large capacitor and the aluminium (and you must remove the battery) then you will clear peripheral with the ICs left in the sockets.
Lower one always remove any pop-off shields. and it's peripheral

20180922_132120.jpg)
metal/large
metal/small
